DH-24-J10SX-03-401A 10-Pin Waterproof Connector - Female
774,30
TL
+
VAT
929,16
TL
Notify Me When It Arrives
774,30
TL
+
VAT
929,16
TL
Add to Favorite
RecommendCommentAlarm Price

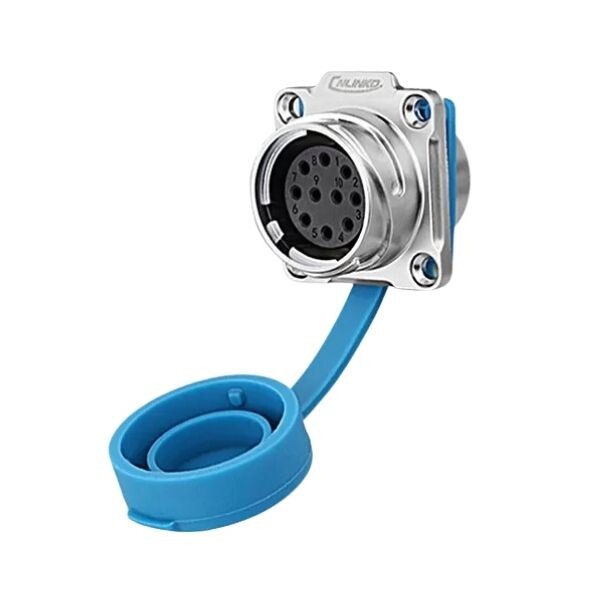

DH-24-J10SX-03-401A 10-Pin Waterproof Connector - Female
With unique wave spring design, standard card slot, rotary locking type and fashion design to meet customer's demand, DH-24 series waterproof connectors are widely used in LED display, industrial equipment, stage lighting equipment and other fields.
CNLINKO products can be produced with cables upon request. Special production is valid for bulk purchases. For special requests, you can send an e-mail to info@motorobit.com.
Technical Specifications
- High temperature and pressure resistance
- IP65/67 class when connected
- Pin Count: 10
- Pin Diameter - 3 mm
- Cable Connection - 12-14 AWG
- Rated Current - 10 Ampere
- Operating Voltage - 400V AC
- Contact Resistance - <500mOhm
- Withstand Voltage - 2500V
- Ingress Protection - IP65/67
- Operating Temperature - -40 C - 80 C
- Body Material - High Performance Plastic
- Flammability Rating - UL94-V0
