DNMEGA1 Arduino Mega 2560 DIN Rail Mount Terminal Block Shield

DNMEGA1 Arduino Mega 2560 DIN Rail Mount Terminal Block Shield

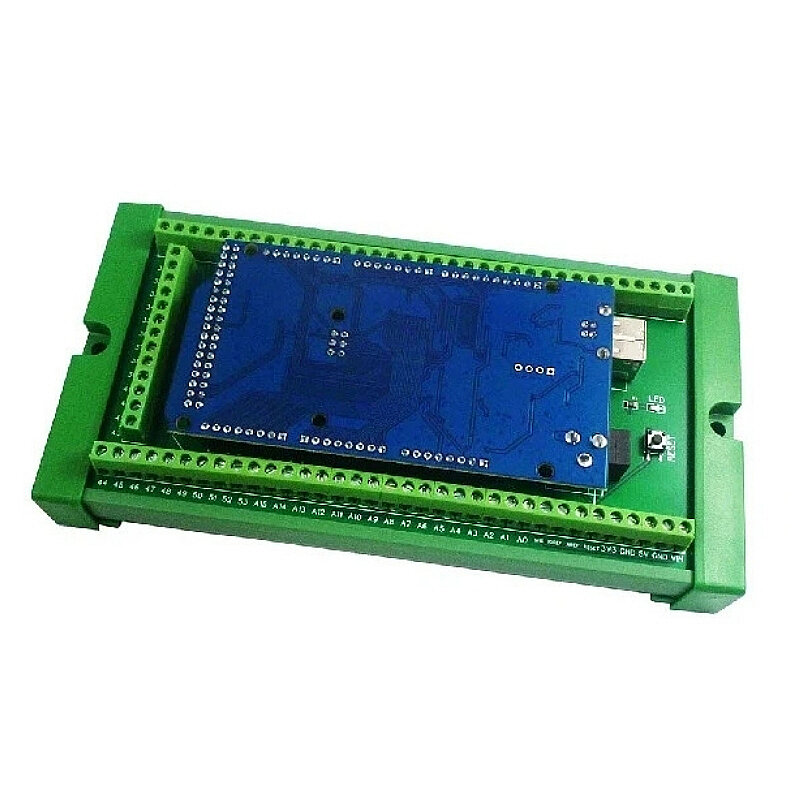

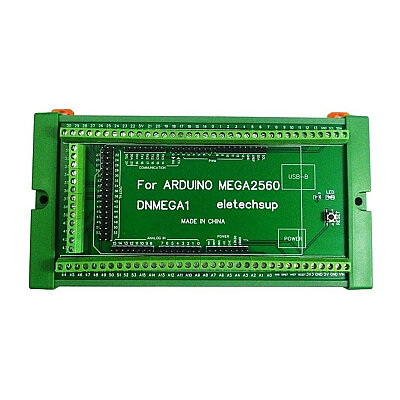

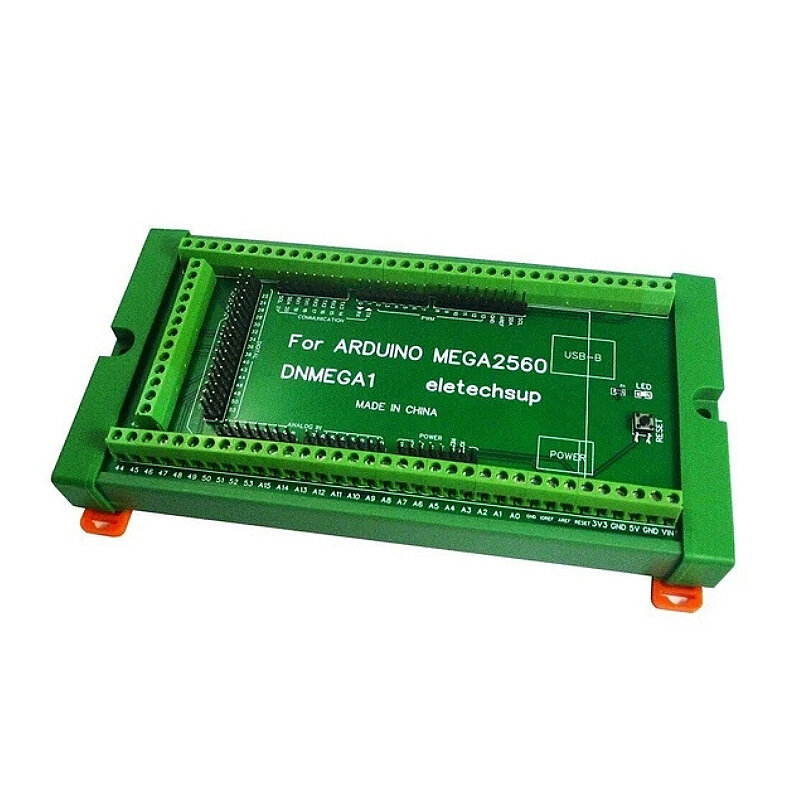

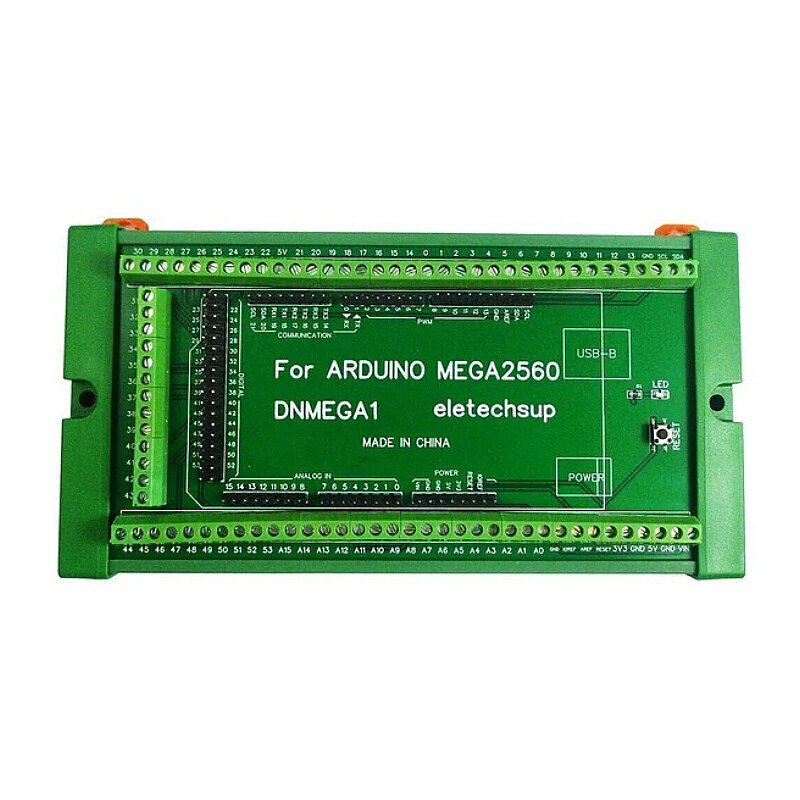

The DNMEGA1 Arduino Mega 2560 DIN Rail Mount Terminal Block Shield is designed to make the pin connections of the Arduino Mega 2560 R3 development board more organized, secure, and suitable for industrial use.

The terminal blocks feature a 3.96 mm pin pitch and support wires ranging from 26 to 16 AWG. The screw terminals utilize M2 / M2.5 flat-head screws, ensuring robust connections for sensors, relays, buttons, actuators, and other field equipment.

Specifications

• Compatible Board: Arduino Mega 2560 R3
• Terminal Type: Screw terminal block
• Terminal Pitch: 3.96 mm
• Wire Compatibility: 26–16 AWG
• Screw Type: M2 / M2.5 flat-head screw
• Board Dimensions: 147 × 80 × 12 mm
• Board Weight: Approx. 86 g
• Dimensions with DIN Rail Enclosure: 165 × 85 × 25 mm
• Weight with DIN Rail Enclosure: Approx. 192 g
• DIN Rail Compatibility: DIN35 / C45
• DIN Rail Enclosure Model: PDM80
• Enclosure Material: Flame-retardant V0 grade
