DSO Shell Oscilloscope Kit

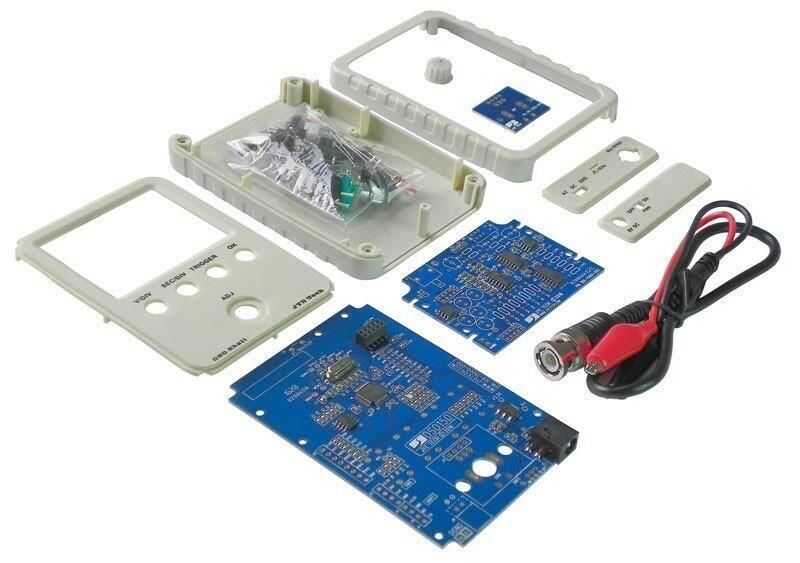

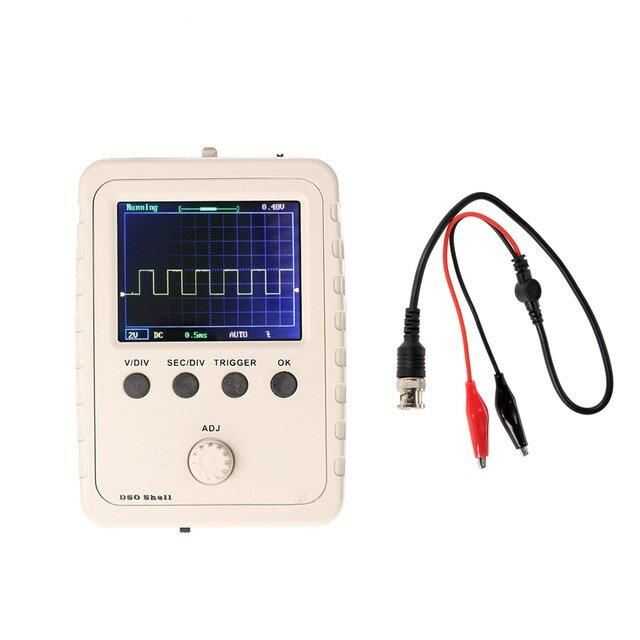

DSO Shell (DSO150) has the same bandwidth as the popular DSO138 kit, but features significant improvements in construction, assembly and use. One of the biggest differences is that the DSO Shell comes with a fully molded plastic housing. Panels are flexible for easy user installation and modification. The sensitivity of DSO Shell has also been improved over DSO138. DSO Shell is capable from 20V/div to 5mV/div.

2.4-inch color TFT LCD display and microcontroller to avoid using cross-board pin headers mounted on the same board (motherboard). The analog channel is on a separate panel PCB to provide better separation between the analog and digital parts. Without the analog panel, the motherboard is essentially a general-purpose control board that can be used in many other applications.

IMPORTANT: 9V DC input power is required. DO NOT EXCEED 10V!

The product is shipped disassembled. You have to do the soldering and installation yourself. For detailed assembly instructions, click .
