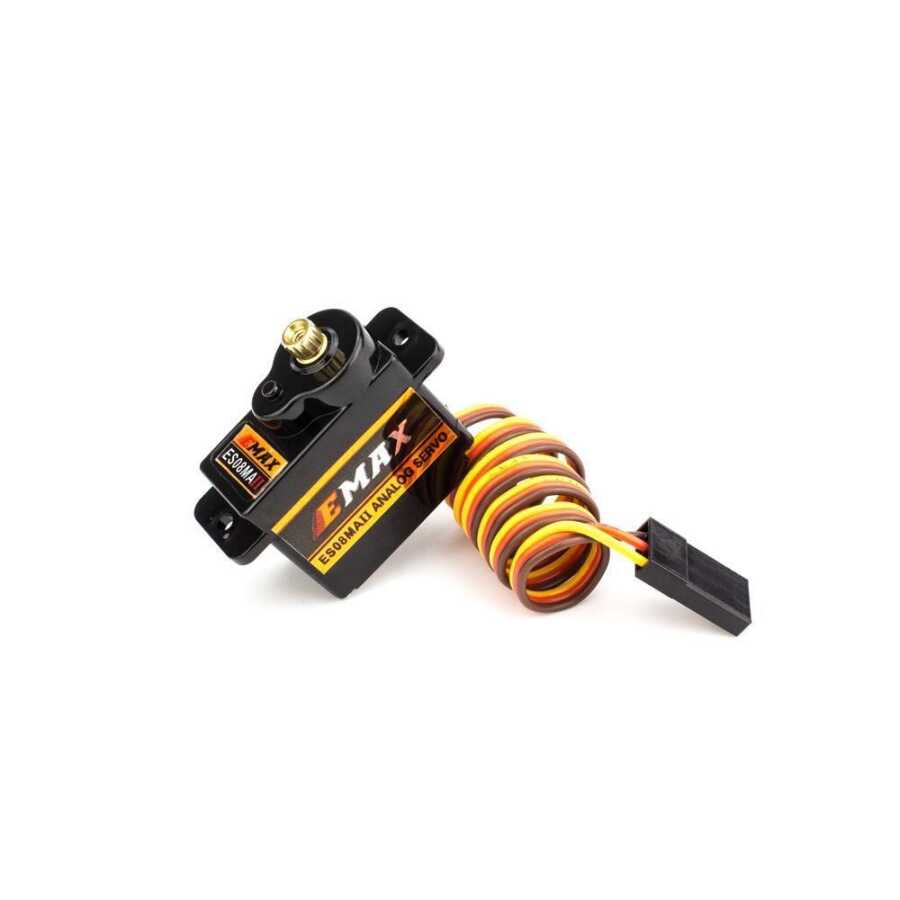

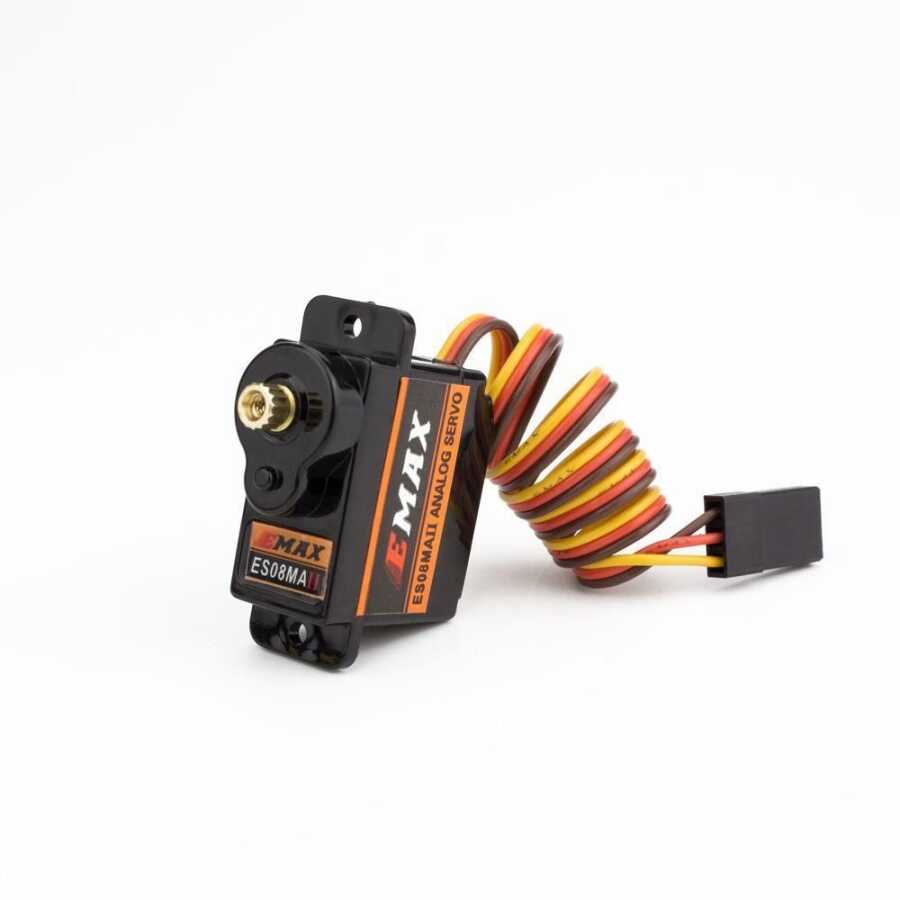

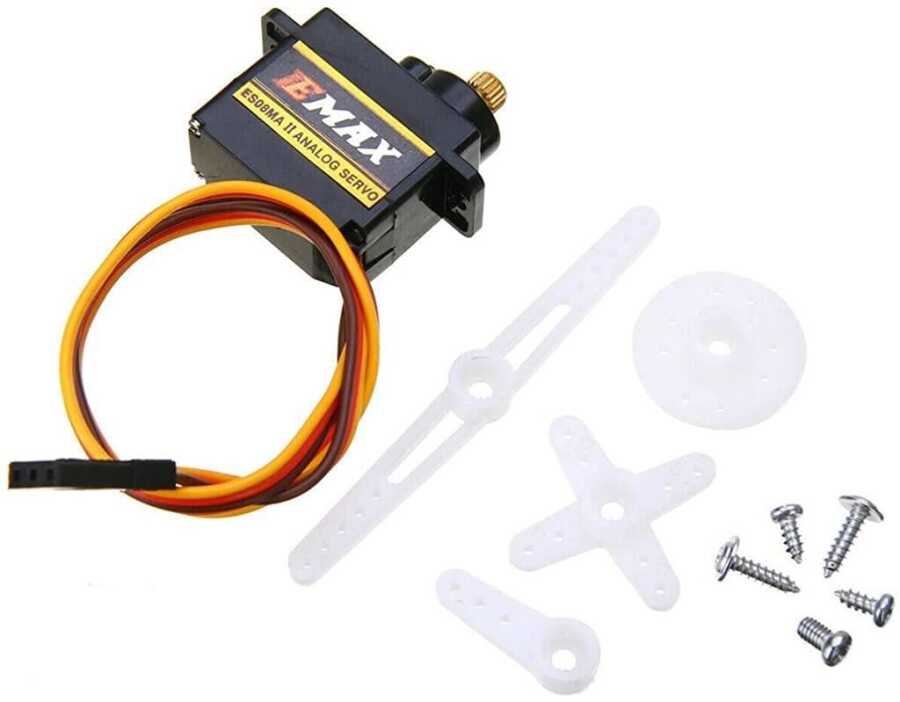

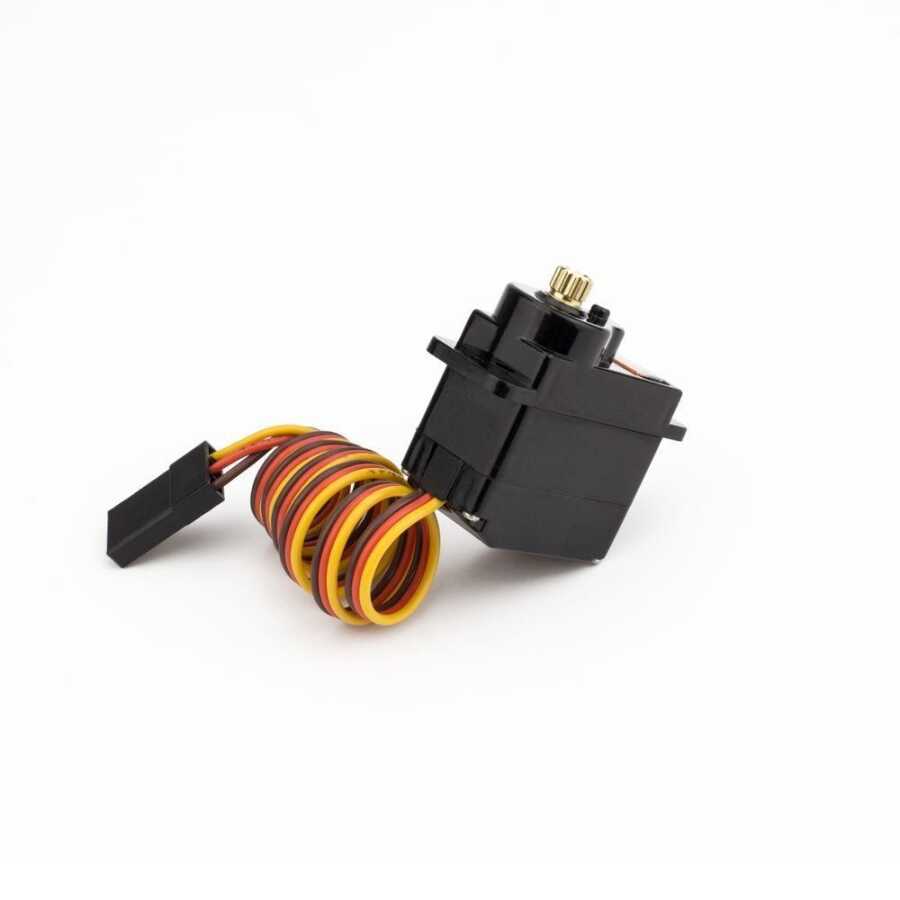

Emax ES08MA II Metal Gear Analog Servo Motor 180 Degree
Emax ES08MA II Metal Gear Analog Servo Motor. This product, which has a 180 degree movement capacity, is also known as 12g servo. It can be used in various electronic applications, especially Arduino projects. It can be used as an equivalent to engines such as SG90 and MG90S.
Features:
- High quality, less noise and light weight.< /LI>
- Highly sensitive.
- Shock-proof and stable performance.
- 25cm connecting wire.
- Large stopping torque of 1.8kg/cm.
- Operating voltage: 4.8V ~ 6.0V
- Operating current: 200mA / 60º
- Operating speed: 0.12sec / 60º at 4.8V; 0.10sec at 6V / 60V
- Stop torque: 1.5 / 1.8 kg.cm 20.8 / 24.9 oz.in (4.8V / 6v)
- Dead zone: 1-2 uSec< /LI>
- Gear Material: Metal
- Connector wire length: 25 cm
- Connector type: Futaba / JR compatible
- Size: 23x11.5x24mm mm (1.25 x .45 x .94in)
- Weight: 12g / 0.42oz
