ESP32-S3 2.8 Inch 480x640 Capacitive Touch Screen Development Board

ESP32-S3 2.8 Inch 480x640 Capacitive Touch Screen Development Board

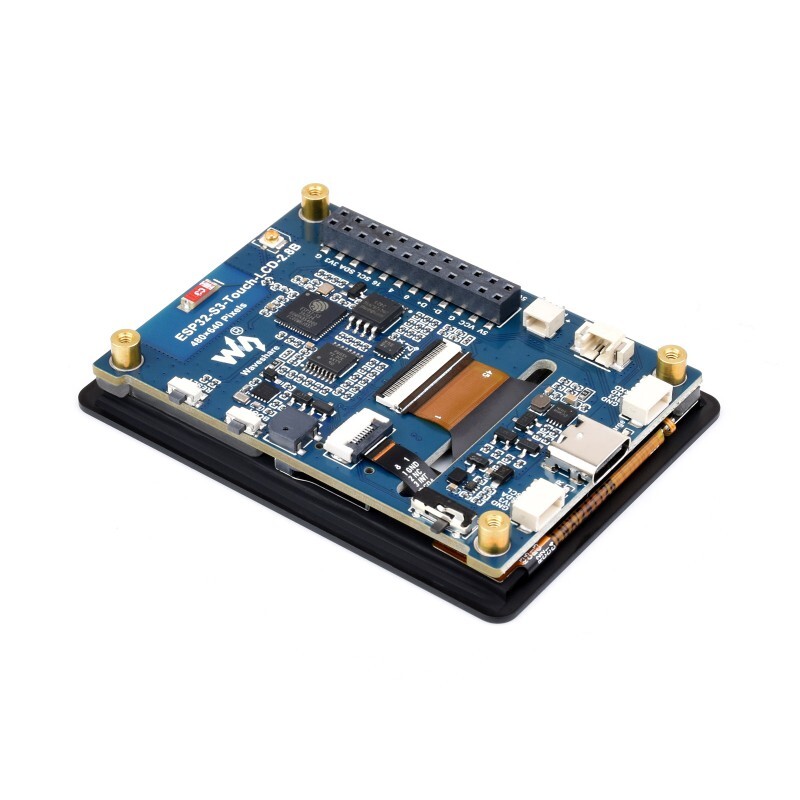

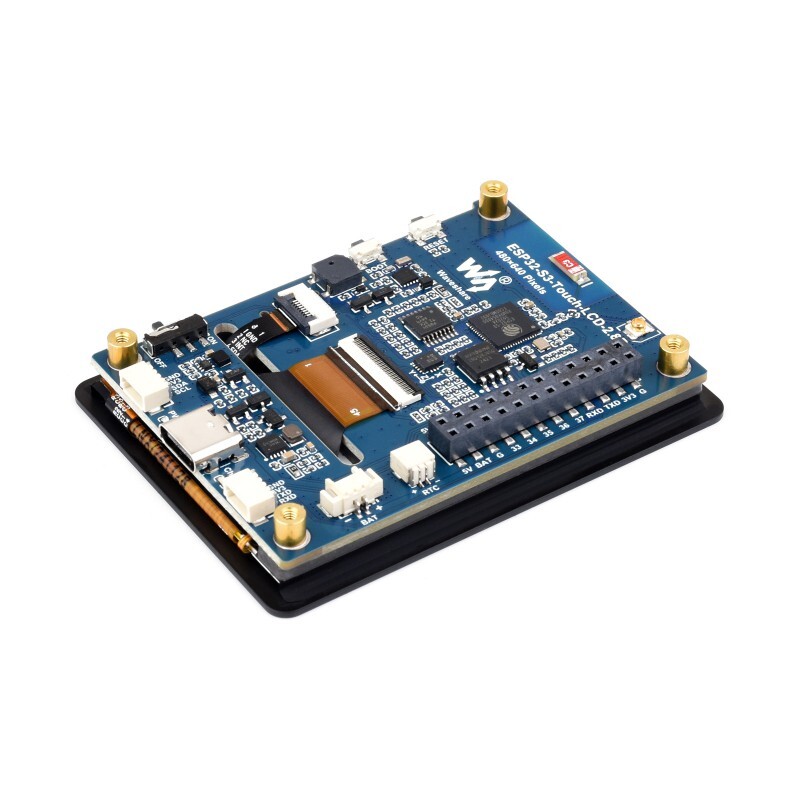

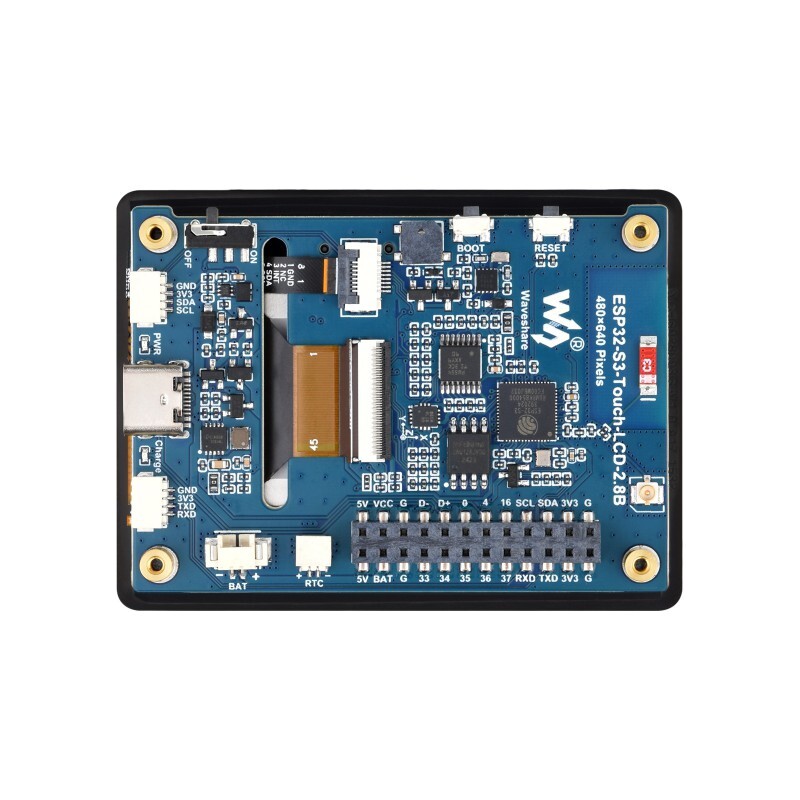

ESP32-S3 2.8 Inch 480x640 Capacitive Touch Screen Development Board is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. The built-in 2.8 inch LCD screen can run GUI programs such as LVGL smoothly. It is integrated with various peripheral interfaces, suitable for rapid development of HMI and other ESP32-S3 applications.

User Manual

Features

• Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, main frequency up to 240MHz.
• Support 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with onboard antenna
• Onboard 16MB Flash and Onboard 512KB SRAM and 384KB ROM with 8MB PSRAM

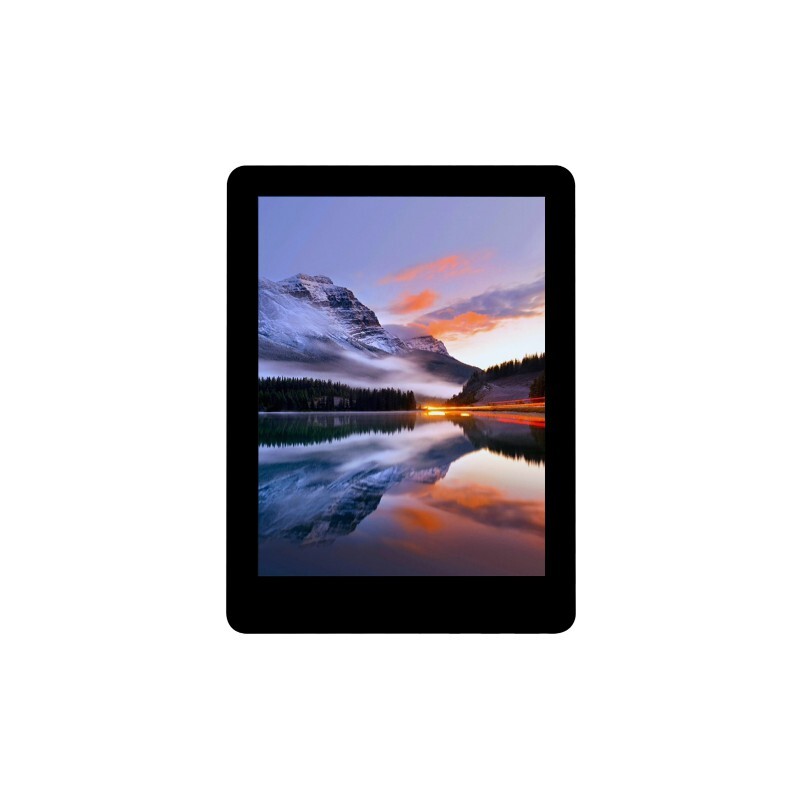

• Onboard 2.8 inch LCD screen, 480×640 resolution
• Supports touch control via I2C interface, with interrupt support (only for touch version)
• Adapts UART, I2C and some IO interfaces, integrates full speed USB port
• Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery charge management module etc.
• Supports precise control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

Specifications

• SKU: 30103
• Display Panel: IPS LCD
• Screen Size. 2.8"
• Resolution: 640x480
• Communication Interface: SPI + RGB
• Driver IC: ST7701
• Touch IC: GT911
