3.4" 800×800 HDMI Round Touchscreen

3.4" 800×800 HDMI Round Touchscreen

The 3.4" 800×800 HDMI Round Touchscreen is an 800x800 LCD screen. It is generally used in smart watches. It can also be used with microcontrollers such as the Raspberry Pi.

User Manual

Features

• SKU: 27478
• 3.4-inch IPS touchscreen with 800 x 800 hardware resolution.
• 10-point capacitive touch control, tempered glass panel with up to 6H hardness.
• Uses optical bonding technique for better display.
• Raspberry Pi; The Raspberry Pi operating system supports Ubuntu, Kali, and Retropie.
• Windows; Supports Windows 11/10/8.1/8/7 when working with a PC.

Technical Specifications

• Model: 3.4" 800x800 LCD
• Viewing Angle: 170°
• Resolution: 800x800px
• Display Area: 87.6x87.6mm
• Color Gamut: 70% NTSC
• Maximum Brightness: 300 cd/m2
• Contrast: 1200:1
• Refresh Rate: 60Hz
• Power Consumption: 1.5W

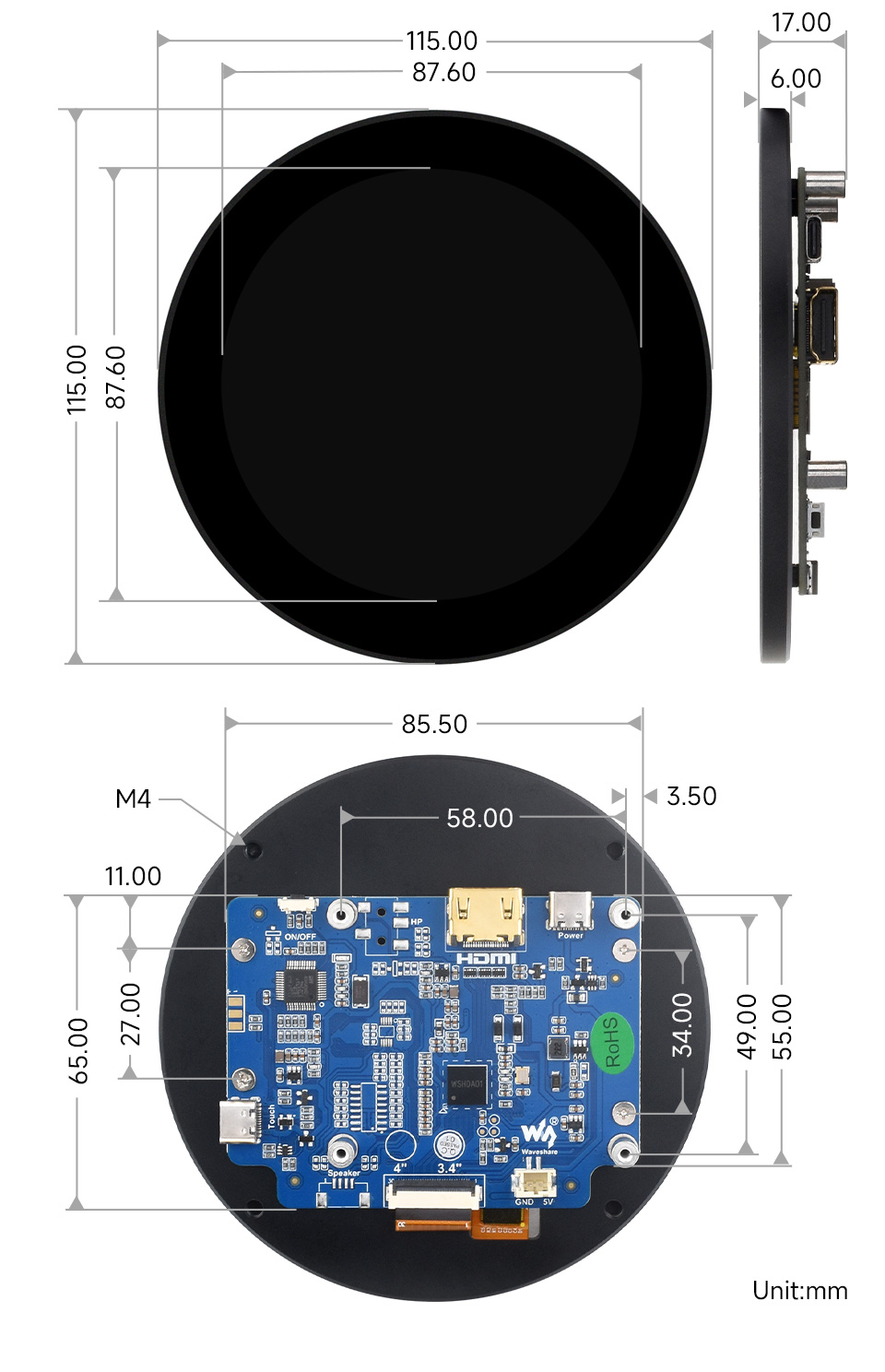

• Dimensions: 115x115x17mm
