T-Display S3 ESP32-S3 1.9" ST7789 Touchscreen Development Board - Soldered

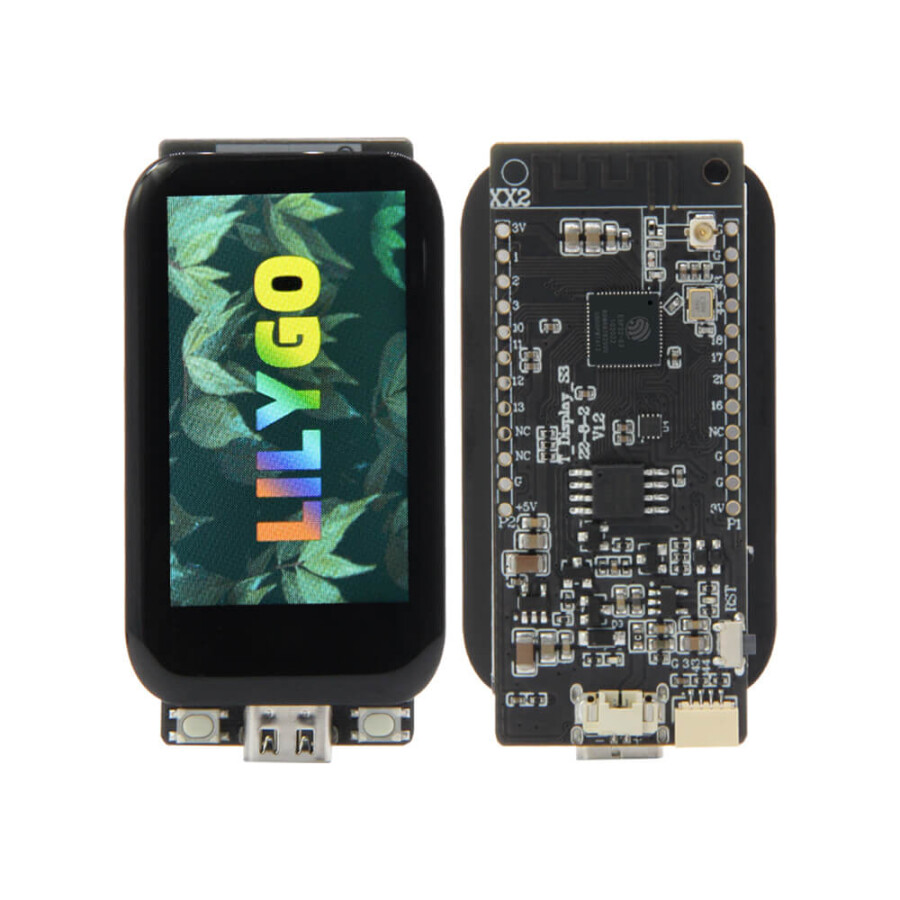

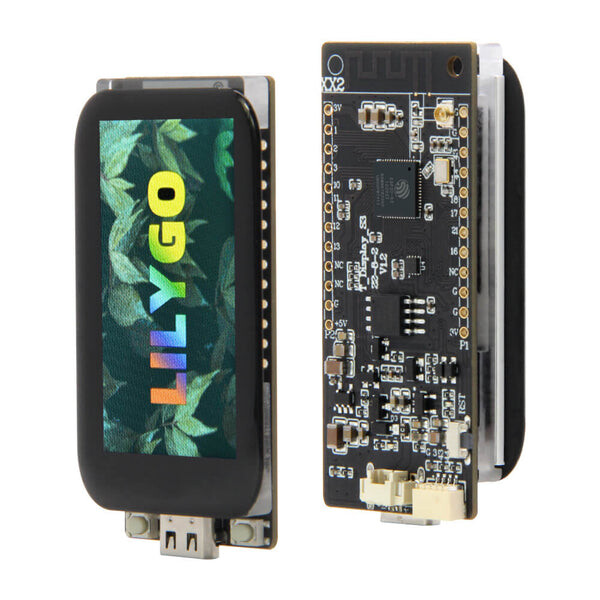

The T-Display S3 ESP32-S3 1.9" ST7789 Touchscreen Development Board (Soldered) is a development board powered by the ESP32-S3 main control chip. It features a 1.9-inch color LCD screen and two programmable buttons. It communicates via the I8080 interface and retains the same layout design as the T-Display. You can use ESP32-S3 directly for communication or programming via USB.
You can access other T-Display S3 models here .
You can access the sample code and user manual here
| SKU | H589 |
| MCU | ESP32-S3R8 Dual-core LX7 microprocessor |
| Wireless Connectivity | Wi-Fi 802.11, BLE 5 + BT mesh |
| Programming Platform | Arduino-ide、 Micropython |
| Flash | 16MB |
| PSRAM | 8MB |
| Bat voltage detection | IO04 |
| Onboard functions | Boot + Reset + IO14 Button |
| LCD | 1.9" diagonal, Full-color TFT Display |
| Drive Chip | ST7789V |
| Resolution | 170(H)RGB x320(V) 8-Bit Parallel Interface |
| Working power supply | 3.3v |
| Support | STEMMA QT / Qwiic JST-SH 1.0mm 4-PIN |
| Connector | JST-GH 1.25mm 2PIN |
Package Content
- 1x T-Display-S3
- 1x 2P JST 1.25mm
Pinout
