T-Display K230 433MHz LoRa AMOLED 4.1" Touchscreen Development Board with Camera
10.087,35
TL
+
VAT
12.104,82
TL
Notify Me When It Arrives
Notify Me When It Arrives
T-Display K230 433MHz LoRa AMOLED 4.1" Touchscreen Development Board with Camera
The T-Display K230 433MHz LoRa AMOLED 4.1" Touchscreen Development Board with Camera is a compact AIoT development board that integrates a high-performance dual-core RISC-V processor (1.6 GHz + 800 MHz) with a vibrant 4.1-inch AMOLED touchscreen. Designed for edge computing, multimedia processing, and intelligent interface applications.
Application Areas
- Artificial intelligence display systems
- Industrial inspection
- Interactive kiosks
- LoRa-enabled smart displays
You can find other T-Display K230 models here.
Sample code and user manual here.
T-Display K230 Technical Specifications
| SKU | K256-C |
| SOC | Dual 64-bit RISC-V CPU + KPU + DPU + GPU + VPU |
| Working Frequency | CPU1: 1.6GHz, CPU0: 800MHz |

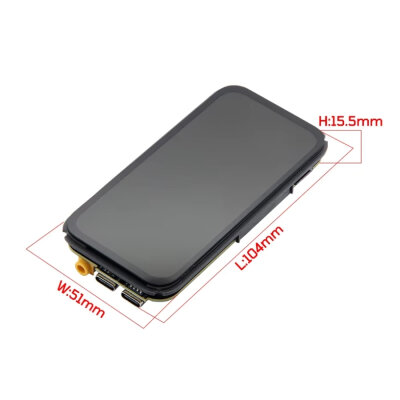

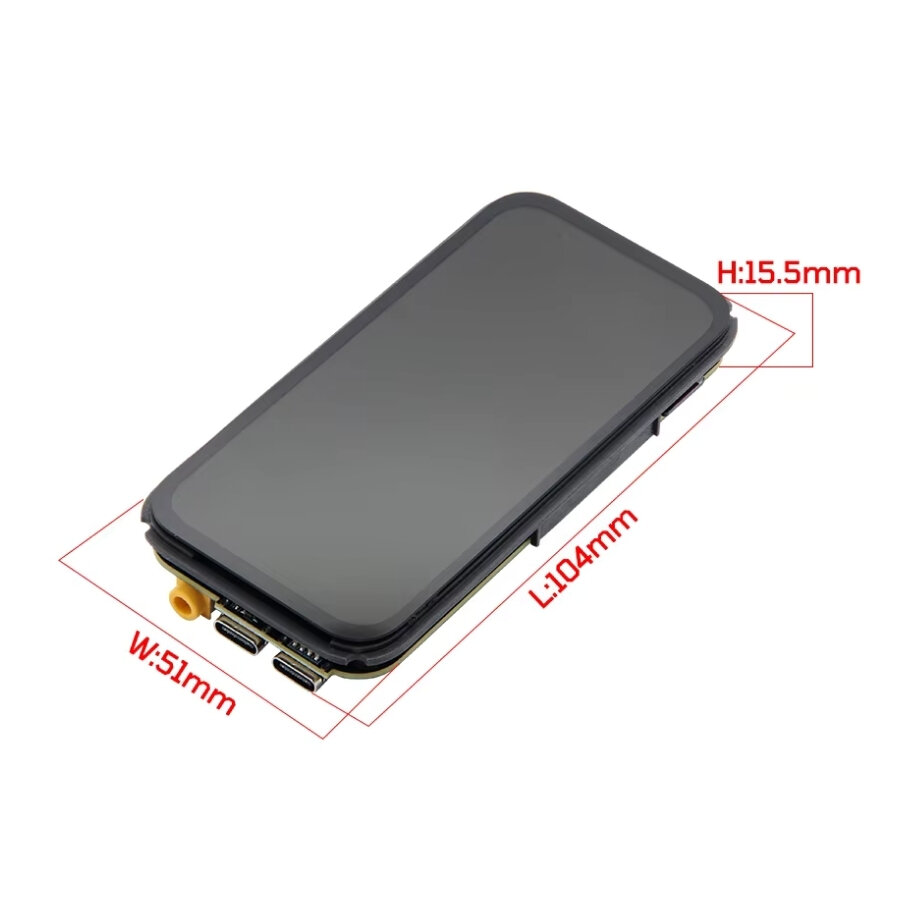

| Board Size | 104 × 51 × 15.5mm |
| USB Charging | 5V, 500mA |
AMOLED Touch Display | |
| Size | 4.1-inch AMOLED |
| Driver Chip | RM69A10 |
| Resolution | RGB 568 × 1232 |

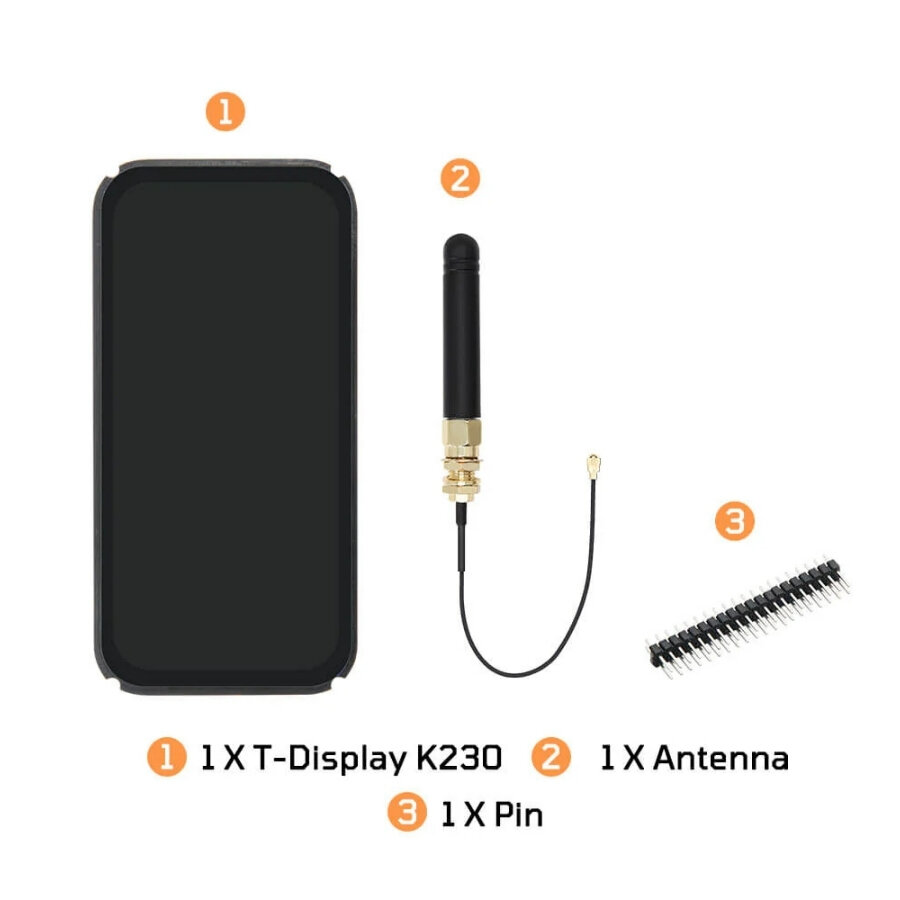

Package Content
- 1x T-Display K230
- 1x Antenna
- 1x Header

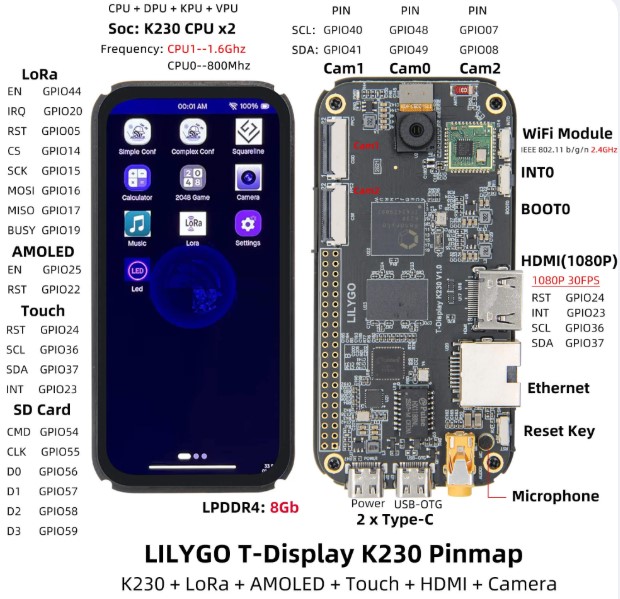

Pinout
