ESP32-S3 7 Inch 1024x600 Capacitive Touchscreen Development Board

ESP32-S3 7 Inch 1024x600 Capacitive Touchscreen Development Board

The ESP32-S3 7 Inch 1024x600 Capacitive Touchscreen Development Board is a low-cost, high-performance MCU development board designed by Waveshare. It supports 2.4GHz Wi-Fi and BLE 5, integrates high-capacity Flash and PSRAM, and features a built-in 7-inch capacitive touchscreen LCD display that allows for smooth operation of GUI programs like LVGL. Combined with various peripheral interfaces (such as CAN, I2C, and RS485), it facilitates rapid development of HMI and other applications for the ESP32-S3. With its wide range of functions and interfaces, it can meet the power consumption requirements of the Internet of Things (IoT), mobile devices, smart homes, and other applications.

User Manual

Features

• SKU: 31726
• Processor: High-performance Xtensa 32-bit LX7 dual-core processor, up to 240 MHz
• Wi-Fi/Bluetooth: 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) support, built-in antenna
• Flash Memory: 16 MB Flash
• PSRAM: 8 MB PSRAM
• Power Supply: Type-C 5V
• Resolution: 1024 × 600
• Display Color: 65K colors
• Display Interface: RGB
• Display Panel: IPS
• Viewing Angle: 170°
• Display Brightness: 235 cd/m²
• Touch Type: Capacitive
• Touch Panel: Tempered Glass
• Communication Interfaces: CAN, RS485, I2C, USB
• Power Consumption: 5V 350mA
• Operating Temperature: 0℃ ~ 65℃

Package Contents

• ESP32-S3-Touch-LCD-7B × 1
• HY2.0 2P - 2PIN male cable × 3
• HY2.0 3P - 3PIN male cable × 1
• HY2.0 4P - 4PIN male cable × 2
• Screw pack × 1

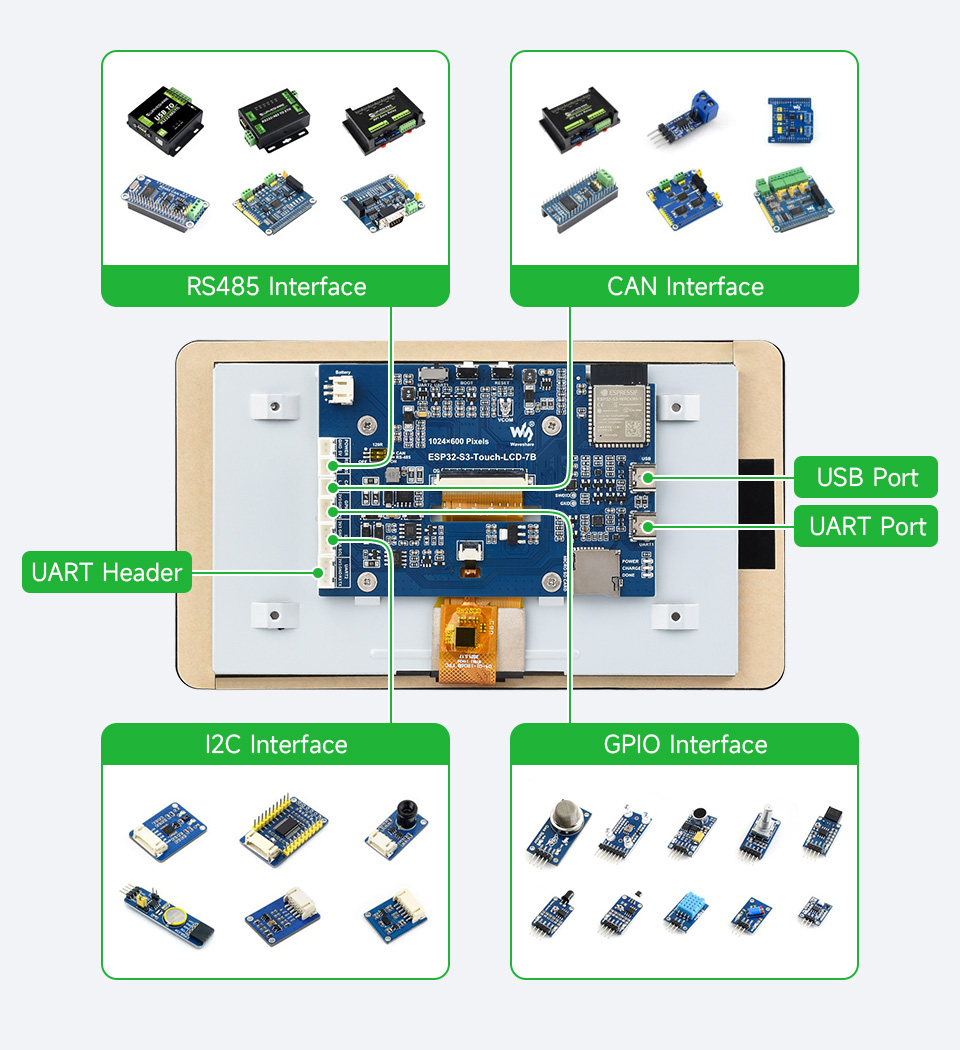

Interface

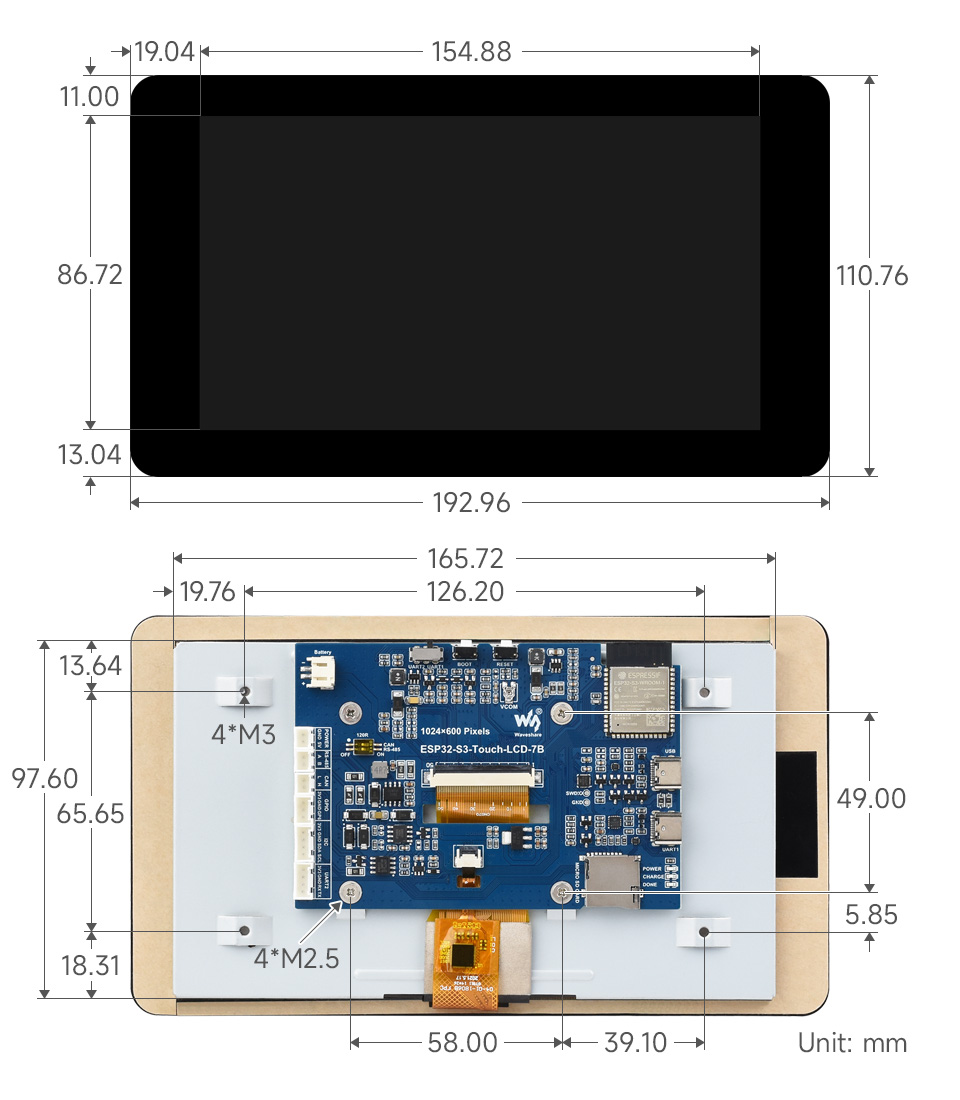

Size
