ESP32-S3 4 Inch 480x480 Capacitive Touchscreen Development Board
3.358,00
TL
+
VAT
4.029,60
TL
Notify Me When It Arrives
3.358,00
TL
+
VAT
4.029,60
TL
Add to Favorite
RecommendCommentAlarm Price

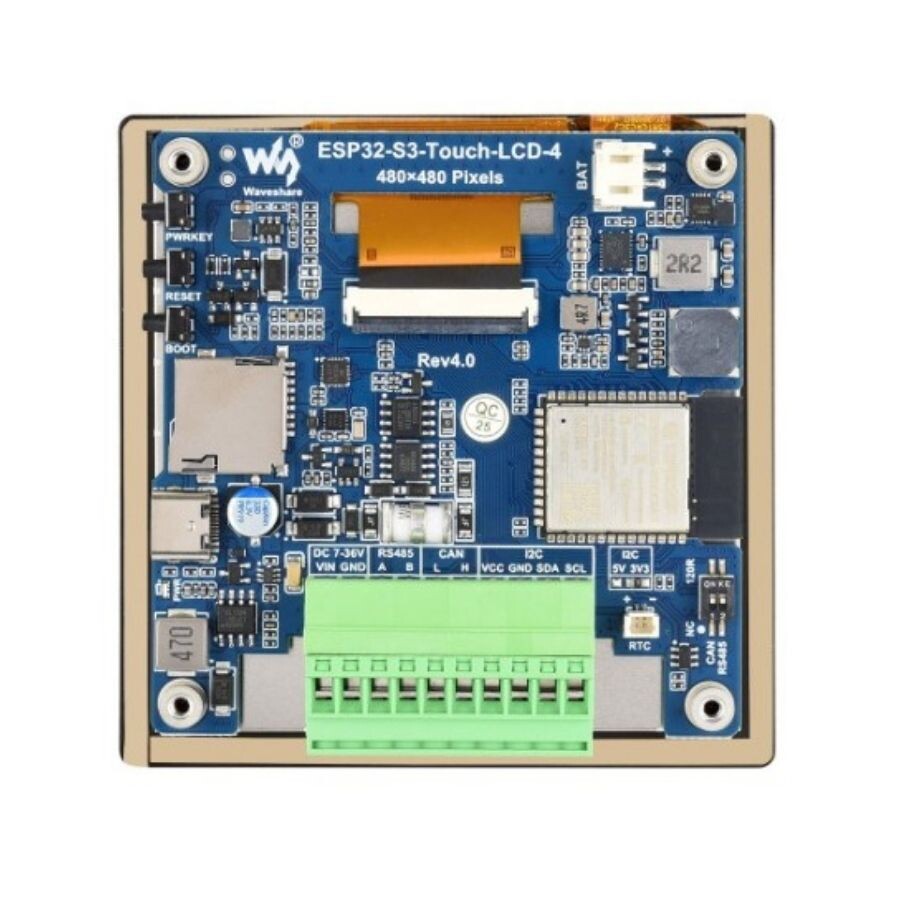

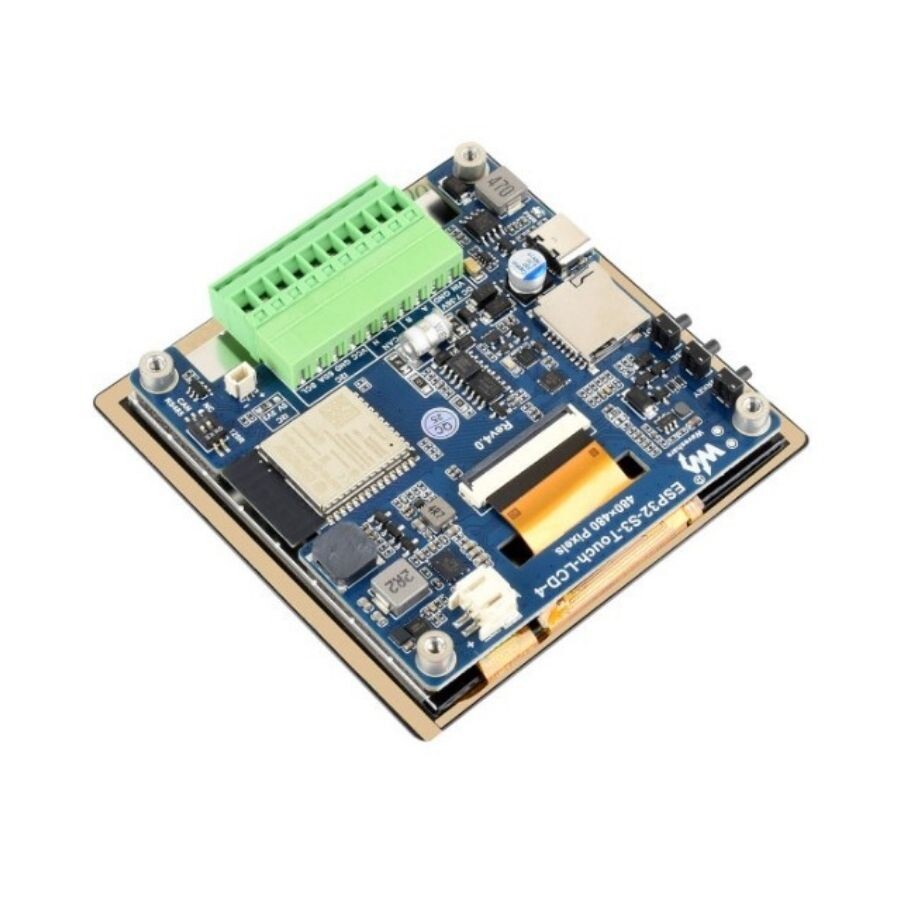

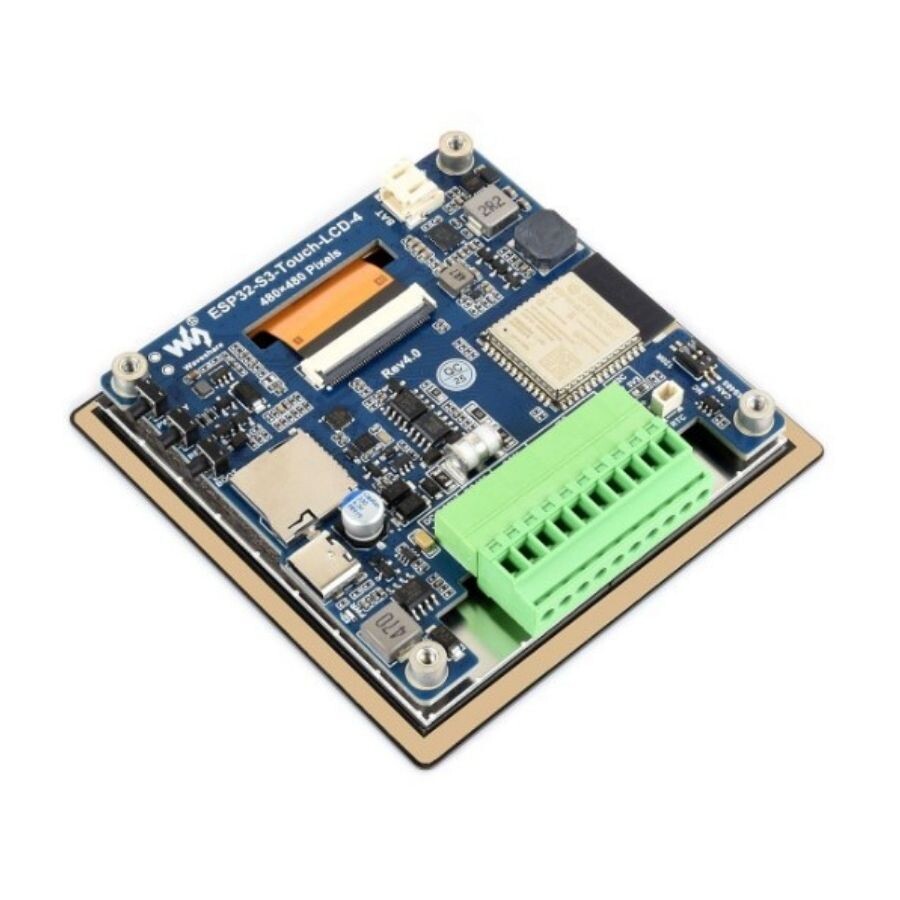

ESP32-S3 4 Inch 480x480 Capacitive Touchscreen Development Board

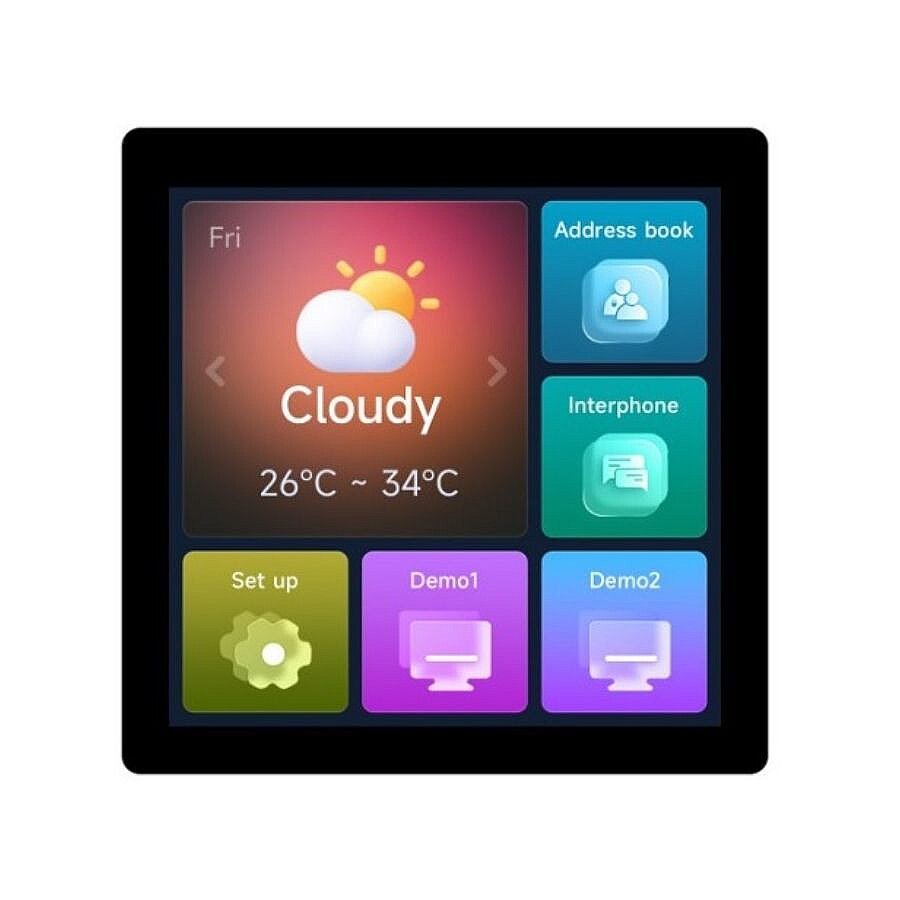

The ESP32-S3 4 Inch 480x480 Capacitive Touchscreen Development Board is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrated 16MB Flash and 8MB PSRAM. The 4-inch 480 × 480 LCD screen on the board can run GUI programs such as LVGL smoothly. When combined with various peripheral interfaces, the ESP32-S3 is suitable for rapidly developing HMIs and is ideal for scenarios such as smart control panels, home gateways, smart interactive panels, industrial control, and smart lighting control.
Features
- SKU: 28154
- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) support, built-in antenna
- 512KB SRAM and 384KB ROM, built-in 16MB Flash and 8MB PSRAM
- Built-in 4-inch LCD screen, 480×480 resolution, 65K colors
- Capacitive touch control via I2C interface, 5-point touch with interrupt support (for touch version only)
- Built-in CAN, RS485, I2C interface and TF card slot and full-speed USB port integrated
- Supports flexible clock, module power supply independent setting and other controls to ensure low power consumption in different scenarios
Package Contents
- ESP32-S3-Touch-LCD-4 x1
- 10-pin pluggable terminal block with 3.5 mm spacing ×2
