ESP32-S3 W5 4.3 Inch 480x270 Capacitive Touch Screen Development Board

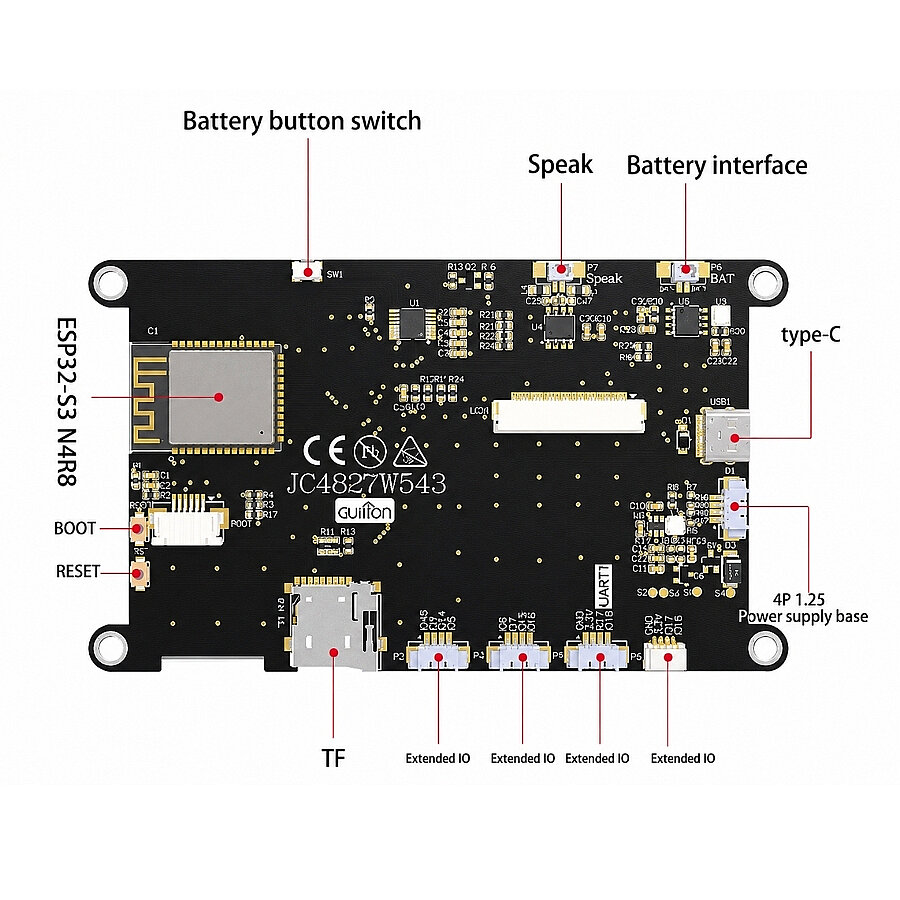

The ESP32-S3 W5 4.3 Inch 480x270 Capacitive Touch Screen Development Board uses the ESP32-S3R8 module as its main control unit. The main control unit is a dual-core MCU, has integrated Wi-Fi and Bluetooth functions, can reach a main frequency of 240MHz, and has 512KB SRAM, 384KB ROM, 8M PSRAM, and 4MB Flash memory. The screen resolution is 480*272 and it has resistive touch capability. The module includes a 4.3-inch LCD screen, backlight control circuit, and touch screen control circuit. A TF card interface is reserved, and up to 10 IOs are available. This module supports development with Arduino IDE, ESP IDE, Micropython, and Guideline.
Features
- Model: JC4827W543C_I
- Screen Size: 4.3"
- Display Type: IPS TFT
- Resolution: 480x272 pixels
- Touch Type: Capacitive
- Main Controller: ESP32-S3R8 (dual (core)
- Processor Speed: 240MHz
- SRAM: 512KB
- ROM: 384KB
- PSRAM: 8MB
- Flash Memory: 4MB
- Driver Chip: ST3401A
- Color Support: 16-bit RGB (65k colors)
- Effective Display Area: 95.04×53.86mm

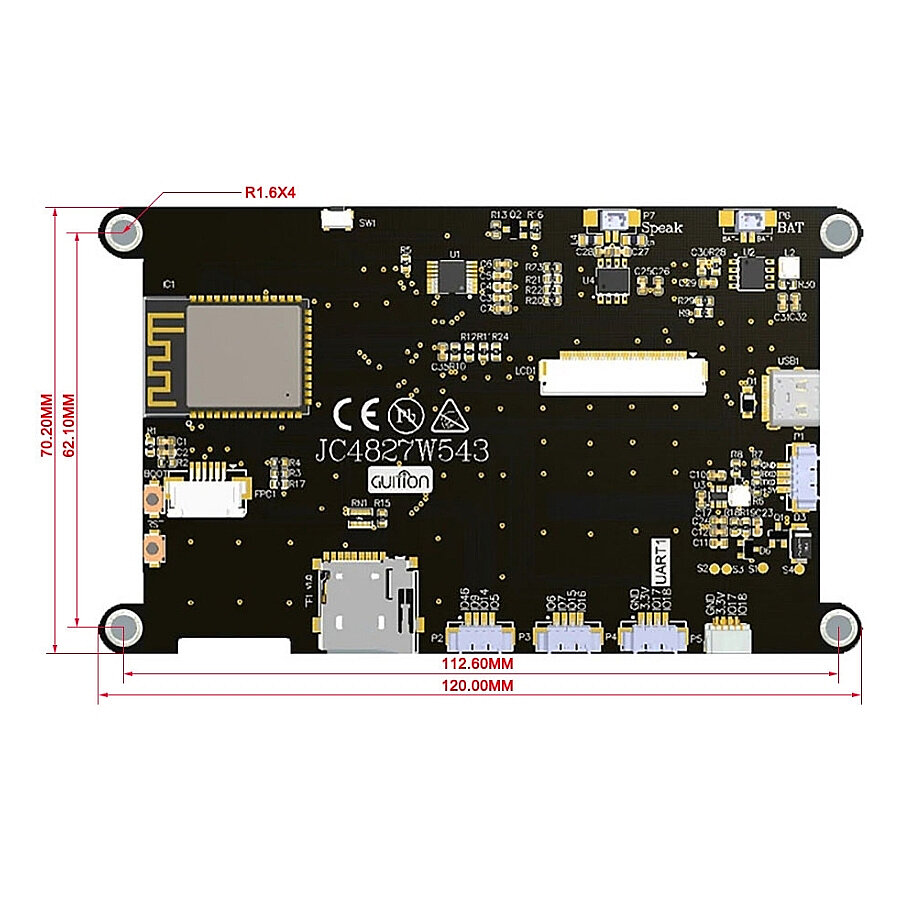

- Module Size: 120x70.2mm
- Viewing Angle: IPS (Full Angle)
- Operating Voltage: 5V DC
- Power Consumption: approximately 260mA
- Operating Environment Temperature: -20 ~ 70°C
