10.1" 1280×800 HMI All-in-One Touchscreen Development Board - Compatible with Raspberry Pi Compute Module 5
10.1" 1280×800 HMI All-in-One Touchscreen Development Board - Compatible with Raspberry Pi Compute Module 5

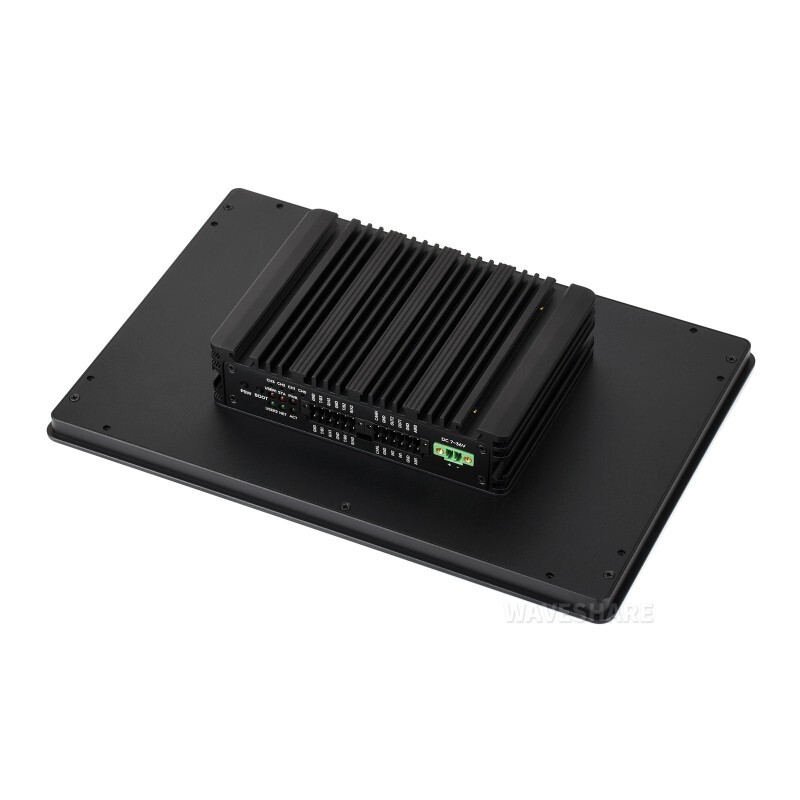

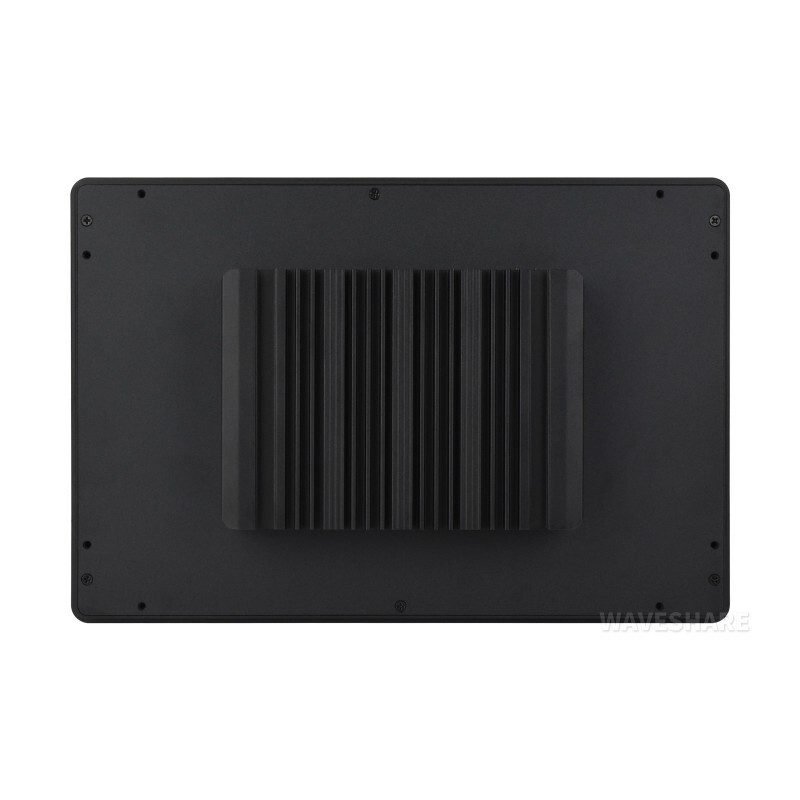

This 10.1" 1280×800 HMI all-in-one touchscreen development board is a complete HMI platform designed for industrial control, automation, and embedded system projects based on the Raspberry Pi Compute Module 5. It enables the creation of a comprehensive control terminal in a single unit, featuring a 10.1-inch IPS display, a capacitive multi-touch panel, a 5MP front camera, industrial communication interfaces, and expansion options for NVMe and 4G/5G connectivity.
The display features a native resolution of 800 × 1280 pixels and a 178° viewing angle. It utilizes IPS technology and incorporates a tempered glass capacitive touch panel on the front, bonded using optical bonding. The hardware supports up to 10-point multi-touch; the actual number of simultaneous touch points may depend on the operating system used.

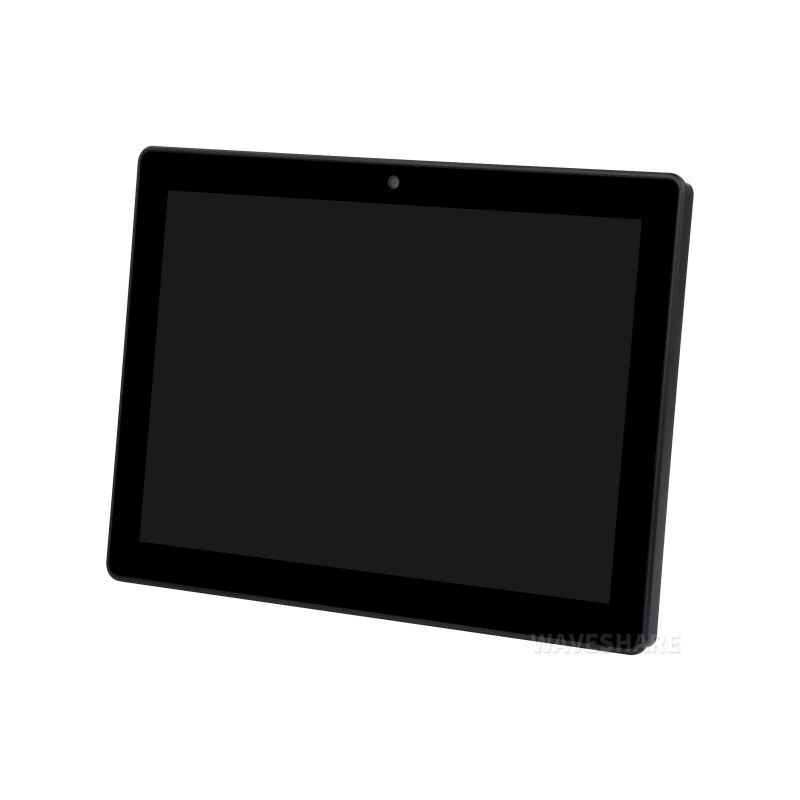

The video connection between the display and the CM5 is established via MIPI DSI. The standard HDMI port on the board is not an input for the internal display; instead, it is used to output 4K video from the CM5 system to an external monitor. A 5-megapixel OV5647 camera is integrated into the front panel.
The camera connects to the CM5 via CSI and can be utilized for applications such as image capture, video, user interfaces, video communication, and image processing with appropriate software.Features
- SKU: 35725
- DC Power Input: 7–36V DC
- Compatible Core Module: Raspberry Pi Compute Module 5
- Display Size: 10.1 inches
- Display Technology: IPS
- Native Resolution: 800 × 1280
- Viewing Angle: 178°
- Touch Technology: Capacitive
- Multi-touch: Up to 10 points
- Front Panel: Tempered glass
- Display Interface: MIPI DSI
- Backlight Brightness: Software-adjustable
- Front Camera: 5MP
- Camera Sensor: OV5647
- Camera Interface: MIPI CSI

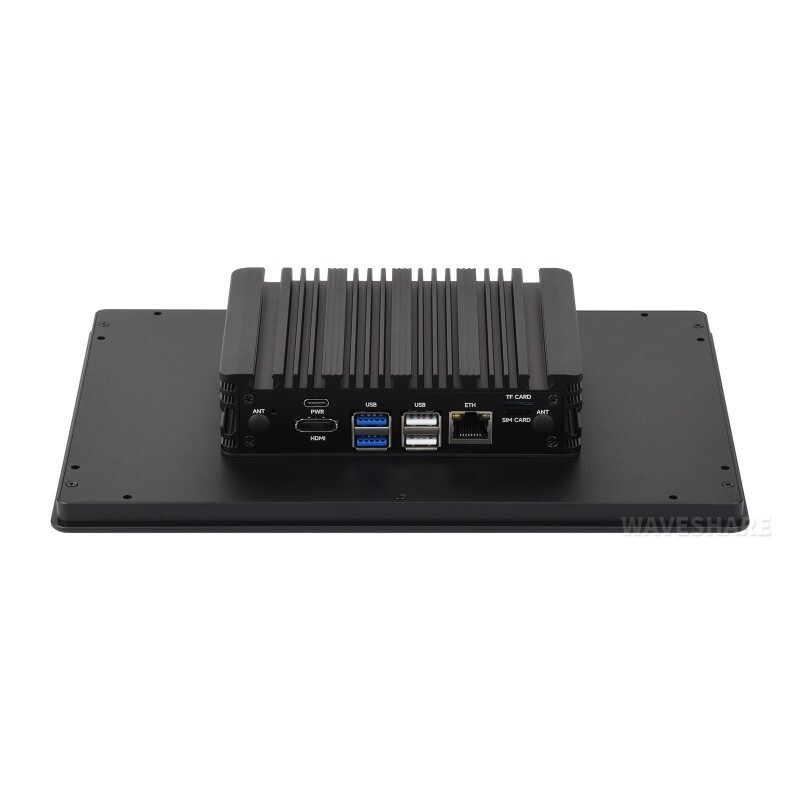

- HDMI: 1 port, supports 4K output for external displays
- USB 2.0: 2 ports
- USB 3.2 Gen1: 2 ports
- USB 3.2 Gen1 Speed: Up to 5Gbps
- Ethernet: 10/100/1000Mbps Gigabit RJ45
- Type-C: Power / USB OTG / eMMC image writing
- TF / microSD Slot: Yes; For system storage on CM5 models without eMMC
- M.2 M-Key: NVMe SSD / PCIe-based compatible expansion
- M.2 B-Key: 4G/5G communication module
- Nano SIM Slot: Included
- External Antenna Mount: Included
- RS485: 4 isolated ports, Version A
- RS232: Not available in Version A
- CAN Bus: 1 isolated port
- Maximum CAN Speed: 1 Mbps
- Digital Input: 2 isolated inputs
- Digital Input Maximum Voltage: 36V
- Digital Output: 2 isolated open-drain outputs
- Digital Output Maximum Current: 500mA
- Digital Output Maximum Cut-Off Voltage: 150V
- Analog Input: 2-channel ADC
- ADC IC: SGM58031XMS10G
- 4–20mA Measurement: Supported via hardware component modification
- Controllable Buzzer: Included
- EEPROM: CAT24C32
- Security / Encryption IC: ATSHA204
- RTC Functions: Supported when RTC battery is connected
- Power-Loss Protection: Supercapacitor-based
Package Contents

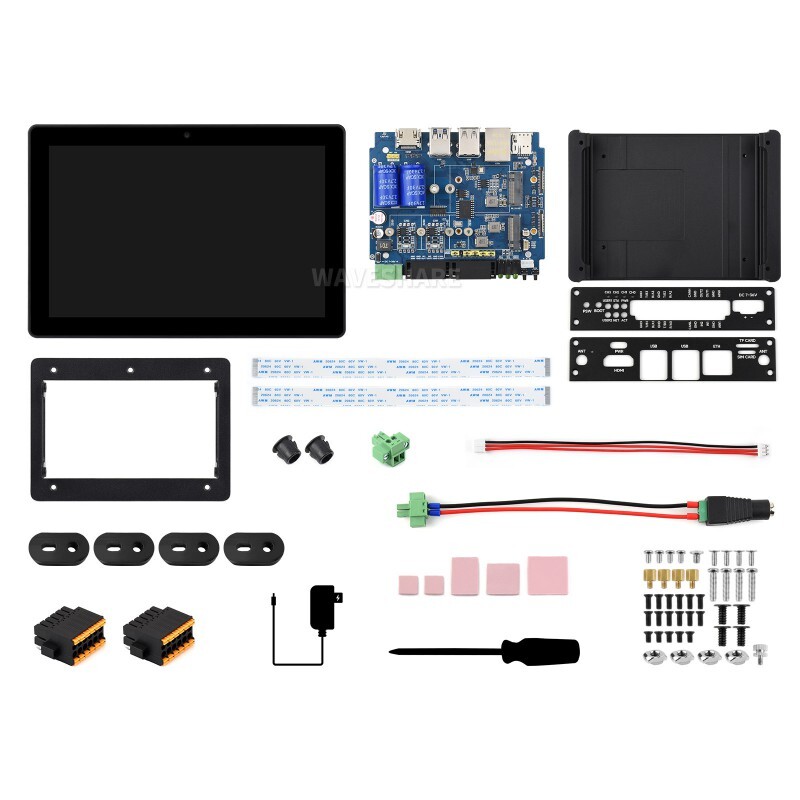

- 10.1-inch DSI LCD (D) optically bonded display x1
- CM5-IPC-BASE-B mainboard x1
- CM5-HMI-10.1A metal enclosure x1
- CM5-IPC-BASE-B metal bracket x1
- 22-pin 0.5 mm pitch FFC cable (2 pcs) 170 mm x1
- Rubber plug for antenna 6 mm x2
- 2-pin 3.5 mm pitch screw terminal x1
- PH2.0 3-pin cable 15 cm x1
- Power adapter cable 15 cm x1
- PI5-HMI-080C mounting clip (4 pcs) x1
- 6-pin 3.5 mm pitch dual-layer terminal block (2 pcs) x1
- 12V 4A power supply x1
- Pink thermal tapes x1
- Screwdriver x1
- Screw pack x1

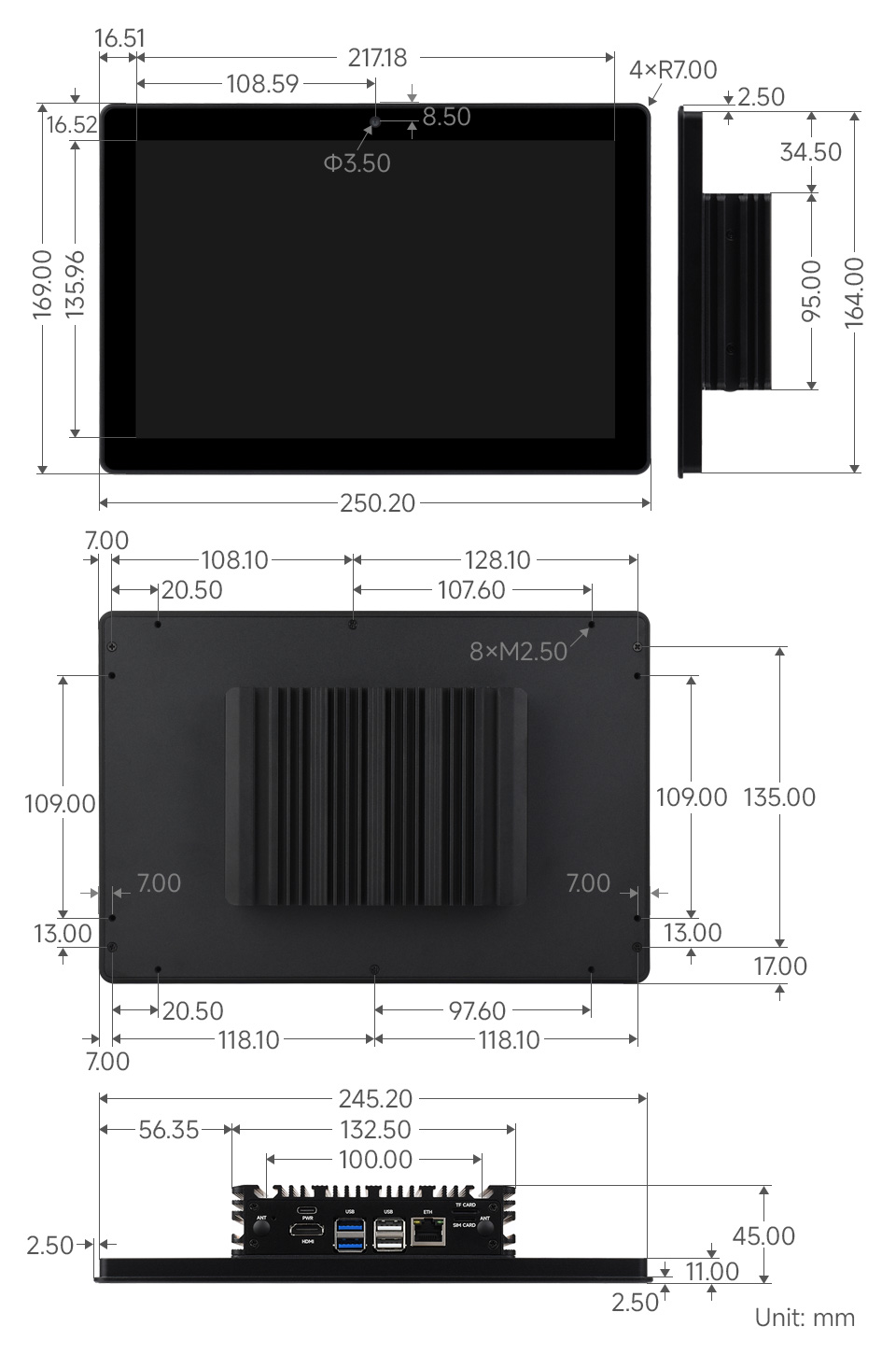

Dimensions
