Hantek 6022BE 2-Channel 20MHz Digital Oscilloscope

Hantek 6022BE 2-Channel 20MHz Digital Oscilloscope

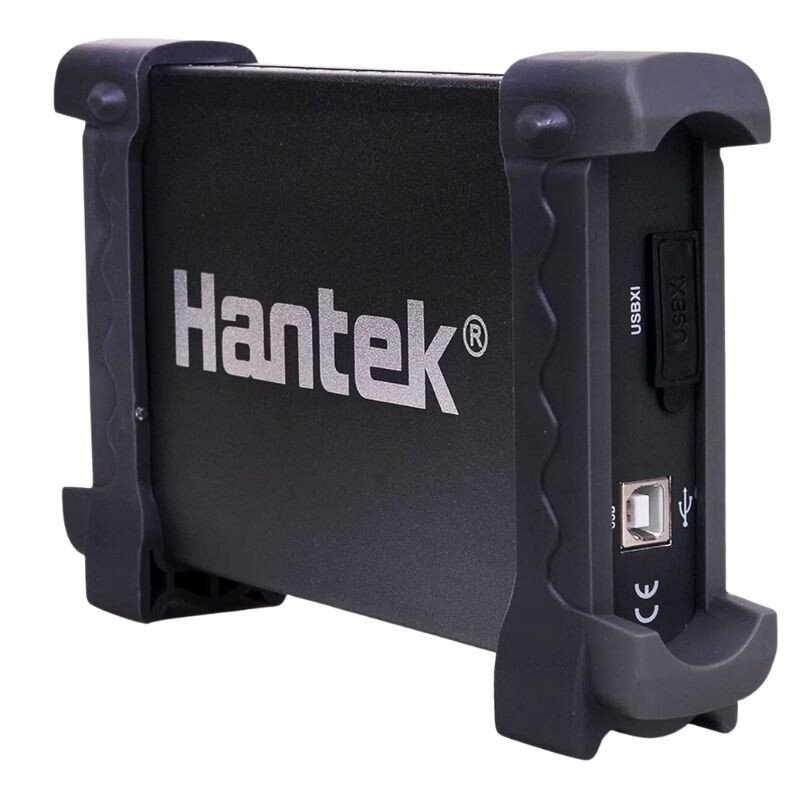

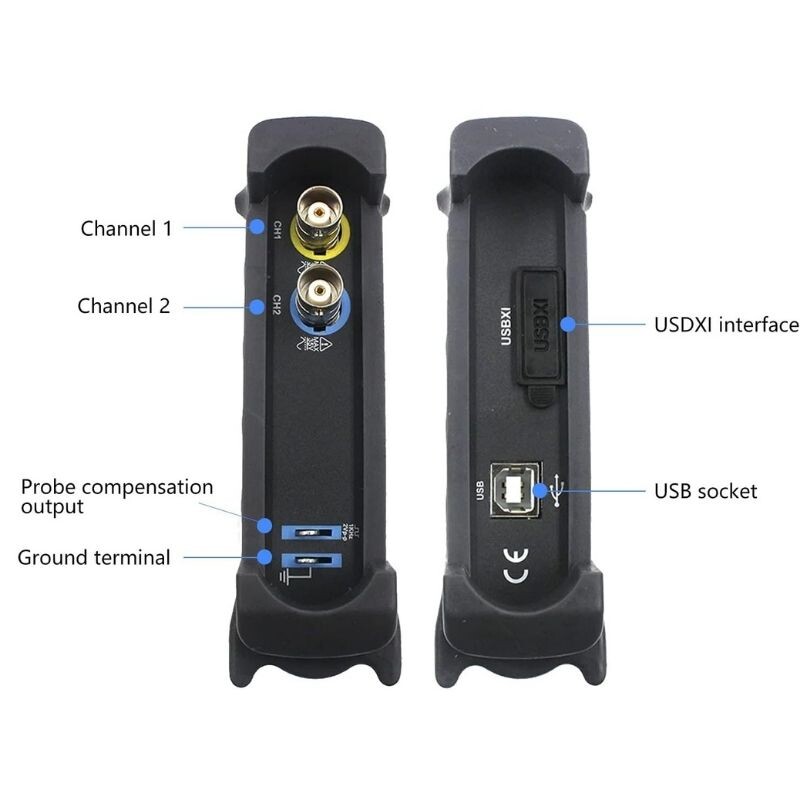

Hantek 6022BE 2-Channel 20MHz Digital Oscilloscope is a high-performance digital oscilloscope with 20MHz analog bandwidth and 48 MSA/S real-time sampling rate. It is an oscilloscope. It can be easily connected to the computer and used with the USB Type-B interface. It has a standard USBXI interface. It can save the waveform as a text file, jpg/bmp graphic file, MS Excel/Word file.

Features

• Bandwidth: 20MHz
• Number of Channels: 2 Channels
• Input Impedance: 1Mohm 25pF
• Maximum Sampling Rate: 48MS/s
• Vertical Resolution: 8 bit
• Gain Range: 20mV-5V, 8 steps
• DC Accuracy: ± 3%
• USB Type-B 2.0 Interface
• Supported Operating Systems: Windows 10, Windows 8, Windows 7, Windows NT, Windows XP, VISTA
• 23 measurement functions
• FFT
• Saveable File Formats: text file, jpg/bmp graphic file, MS Excel/Word file
• Trigger Mode: Auto, Normal, Single
• Portrait Mode: CH1, CH2, Dual, ADD
• Dimension: 200x100x35mm

User Manua -  Software -  SDK
