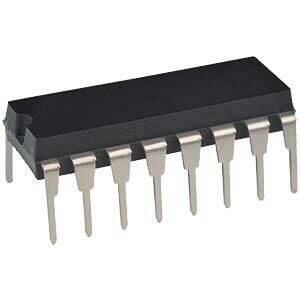

HIP4082IP DIP-16 Mosfet Driver IC

HIP4082, 16 lead plastic SOIC (N) and is a mid-frequency, medium-voltage H-Bridge N Channel MOSFET driver IC available in DIP packages. designs are made simple and flexible with the HIP4082 H-bridge driver. With operation up to 80V, the device is best suited for applications at medium power levels.

Uses

• UPS Systems

• DC Motor Controls

• Full Bridge Power Supplies

• Replacing Power Amplifiers

• Noise Canceling Systems

• Battery Powered Vehicles

• Peripherals

• Medium/Large Voice Coil Motors

• Related Literature
•TB363, Handling and Handling Guidelines

•Moisture Sensitive Surface Mount Devices (SMDs)

Series	HIP4082IP
Supply Voltage	5-15V
Number of Outputs	4
Operating Temperature	-55 - +125
Output Current	1.25A

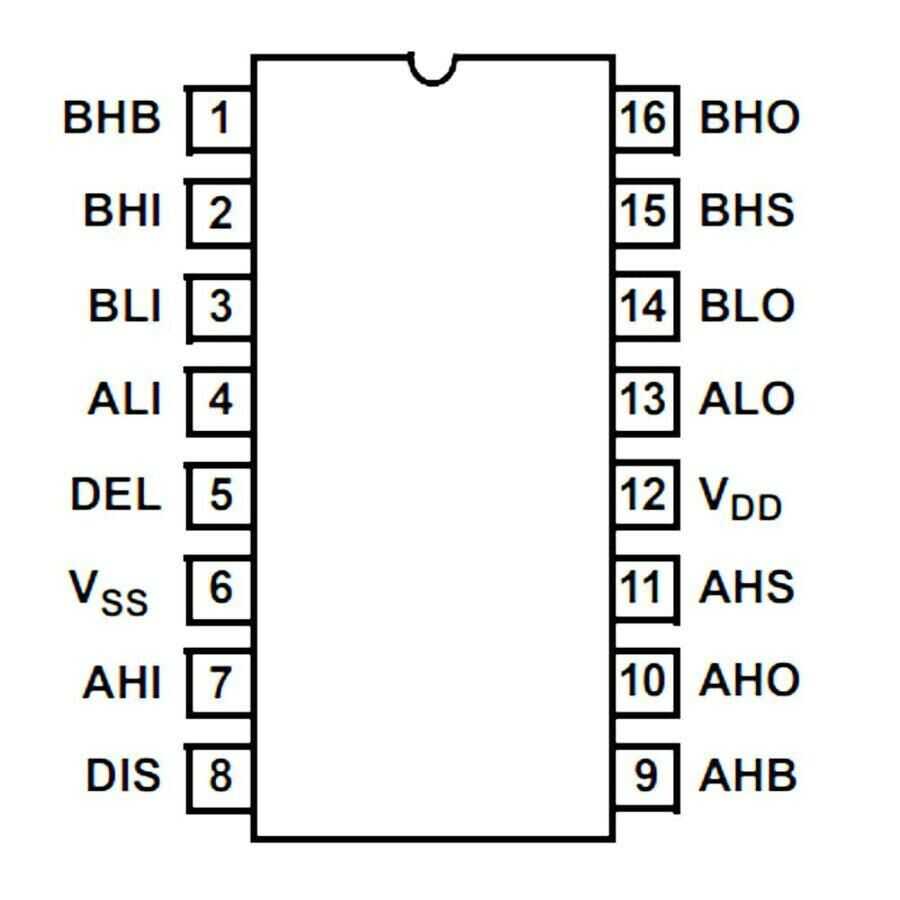

Number of Pins	16 Pin

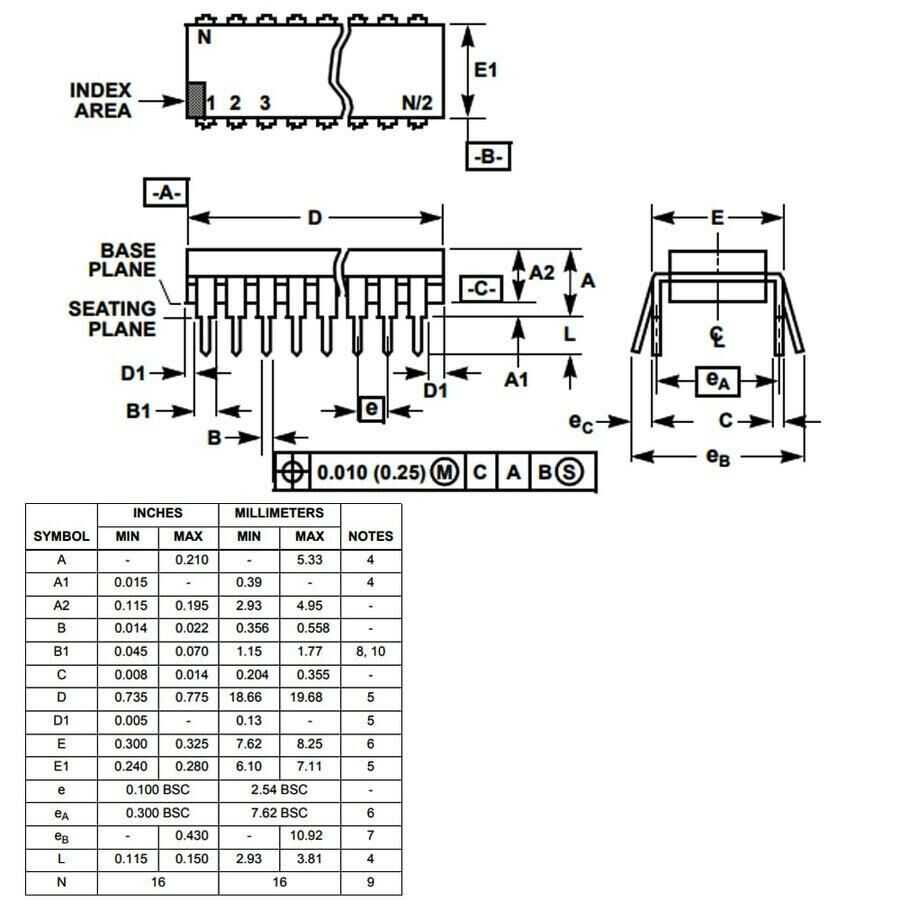

Package Type	DIP-16

HIP4082IP Datasheet
