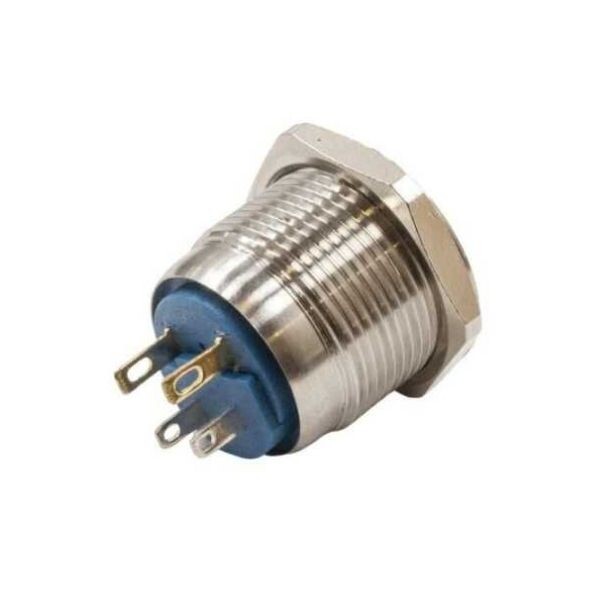

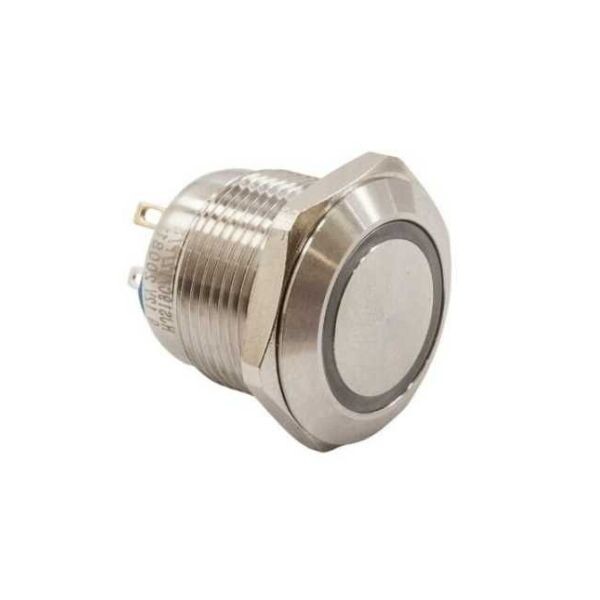

HJS19C 19mm Flat Spring Illuminated Metal Button - Green

19mm metal button is a product that you can use in various industrial applications, electronic projects and mass production projects. It is made of stainless steel. The product is shipped with a sealing gasket.

Due to its stainless steel nature, metal buttons are suitable for outdoor and indoor use. It is preferred due to these features in places where long-lasting use is required. In addition, as a button pressing structure, they have a much longer lifespan than plastic button types. The spring-loaded model has a lifespan of 500000 presses, and the key-operated model has a lifespan of 250000 presses.

19mm Metal Button Types

19mm Metal Button Types can be divided into Spring-loaded and They are divided into two: keyed. Spring buttons allow voltage to pass as long as they are held down. Models with a switch transmit energy when pressed for the first time, and turn off when pressed again.

When choosing a product The elements to be considered are as follows;

Head Type: Protruding or Straight
Light: With or without light
Light Type: With Power Icon or Not
Product Type: With Switch or Spring

These details required when choosing the product are clearly stated in the product image and name. Please pay attention to the name and image before purchasing.

Technical Specifications:

Operating Method: Spring< /LI>
Mounting Diameter: 19mm
Material: Stainless Steel
Voltage: 12-24V
Current: 3A
Switch Contacts: 1NO
Electrical Working Life: >50000
Compression Life: 500000 (spring model), 250000 (switch model)
Wiring: 26AWG
LI>
Operating Temperature: -30 °C ~ 85 °C
