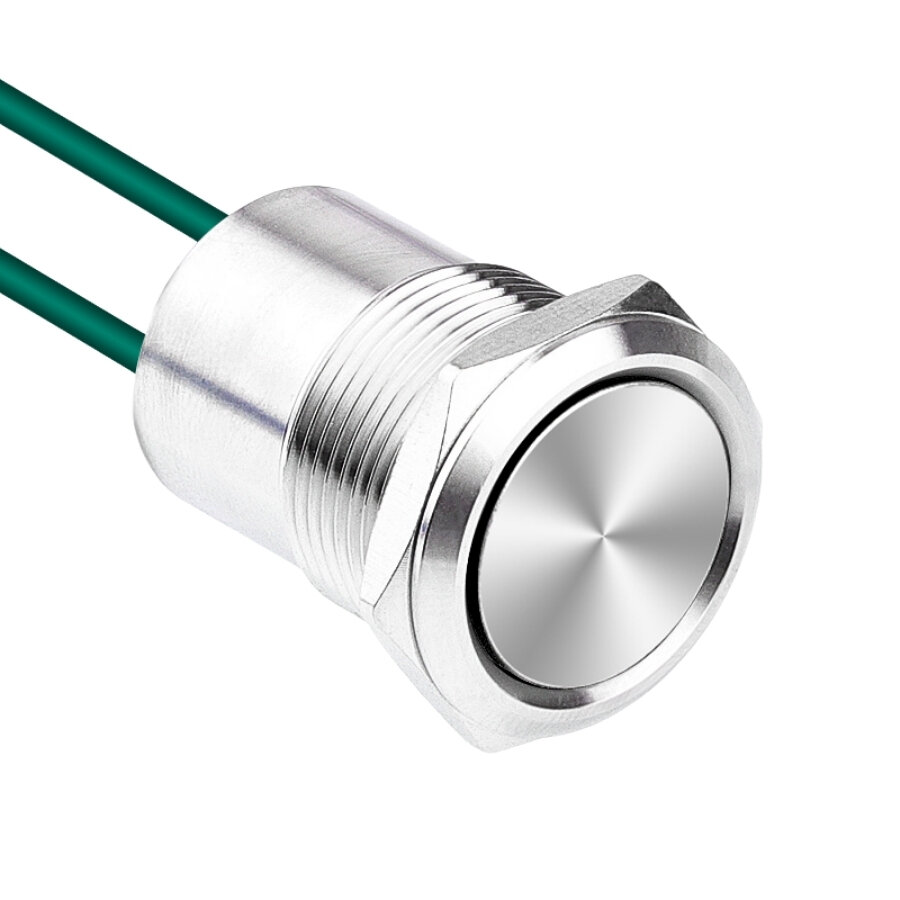

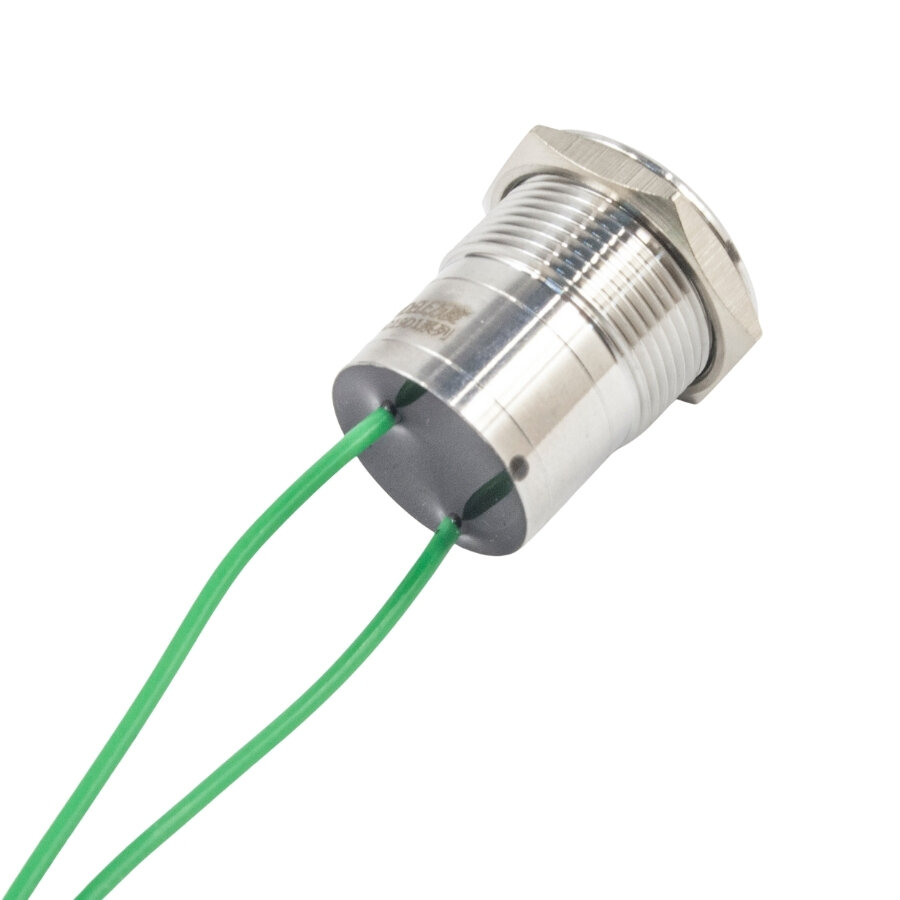

WD19D1-P2Z 19mm Straight Keyed Cable Metal Button

This 19mm metal button is an IP66 waterproof product that can be used in various industrial applications, electronics projects, and mass production projects. It is made of stainless steel. The product is shipped with a sealing gasket.

Because it is stainless steel and has an IP 67 protection rating, metal buttons are suitable for both indoor and outdoor use. This feature makes them preferred in applications where longevity is desired. Furthermore, the button press structure has a much longer lifespan than plastic buttons. The spring-loaded model has a lifespan of 500,000 presses, while the key-loaded model has a lifespan of 250,000 presses.

19mm Metal Button Types

19mm Metal Button Types are divided into two types: spring-loaded and key-loaded, depending on their intended use. Spring-loaded buttons allow voltage to pass as long as they are held down. Switched models, on the other hand, turn on the power when pressed for the first time and off when pressed again.

Factors to consider when choosing a product are as follows:

Head Type: Protruding or Flat
Light: Illuminated or Non-Illuminated
Light Type: Power Symbol or Not
Product Type: Keyed or Spring-loaded

Product Selection These details required when making a product are clearly stated in the product image and name. Please pay attention to the name and image before purchasing.

Technical Specifications:

Operating Mode: Keyed
Mounting Diameter: 19mm
Material: Stainless Steel
Protection Level: IP67
Switching Voltage: 1.5 ~ 250V AC/DC
Current: 20A
Switch Contacts: 1NO
Electrical Life: >50,000
Print Life: 500,000 (spring-loaded model), 250,000 (switch-loaded model)
Wiring: 18AWG
Cable Length: 15cm
Operating Temperature: -30°C ~ 85°C

For more detailed information, please click the link below to access the product's detailed technical documentation.

Production with your own custom symbols and logos is available. For special productions, you can send an e-mail to info@motorobit.com.
