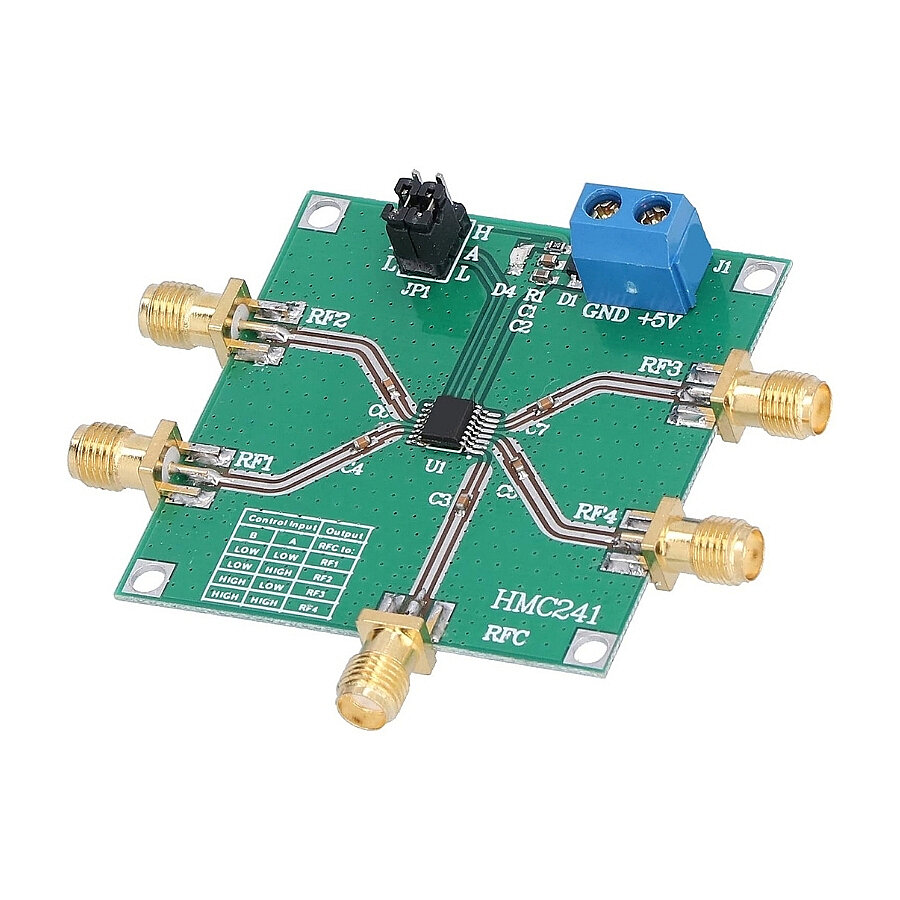

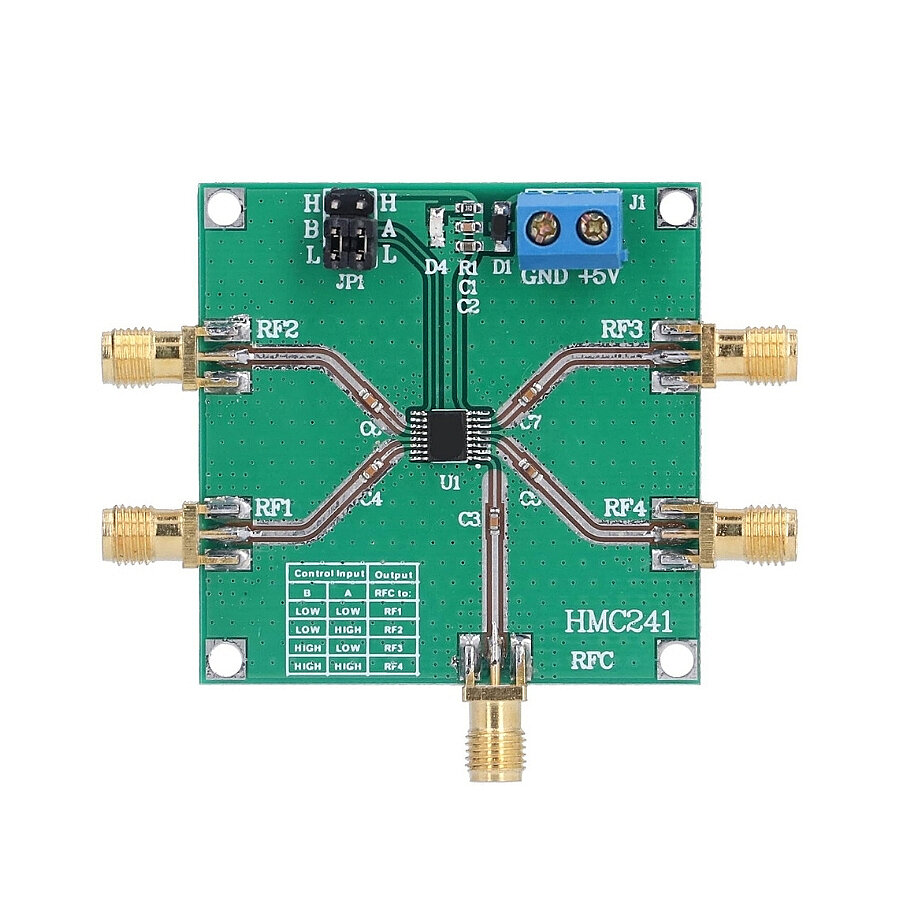

HMC241 DC–3.5GHz SP4T Band Switching Module
The HMC241 DC–3.5GHz SP4T Band Switching Module is a wideband Single Pole Four Throw (SP4T) RF switch board that enables the electronic routing of a single common RF line to one of four different RF channels.
Specifications
- RF Switch Configuration: SP4T
- Number of RF Ports: 1 common + 4 selectable RF ports
- Total RF Connectors: 5
- Common RF Port: RFC
- Output / Channel Ports: RF1 / RF2 / RF3 / RF4
- Operating Frequency: DC–3.5GHz
- RF System Impedance: 50Ω
- Supply Voltage: 5V DC
- HMC241 Supply Tolerance: 5V ±10%
- Typical Supply Current: 4mA
- Maximum Supply Current: 7mA
- Control Interface: TTL / CMOS
- Control Lines: 2 (A and B)
- RF Connector Type: SMA Female
