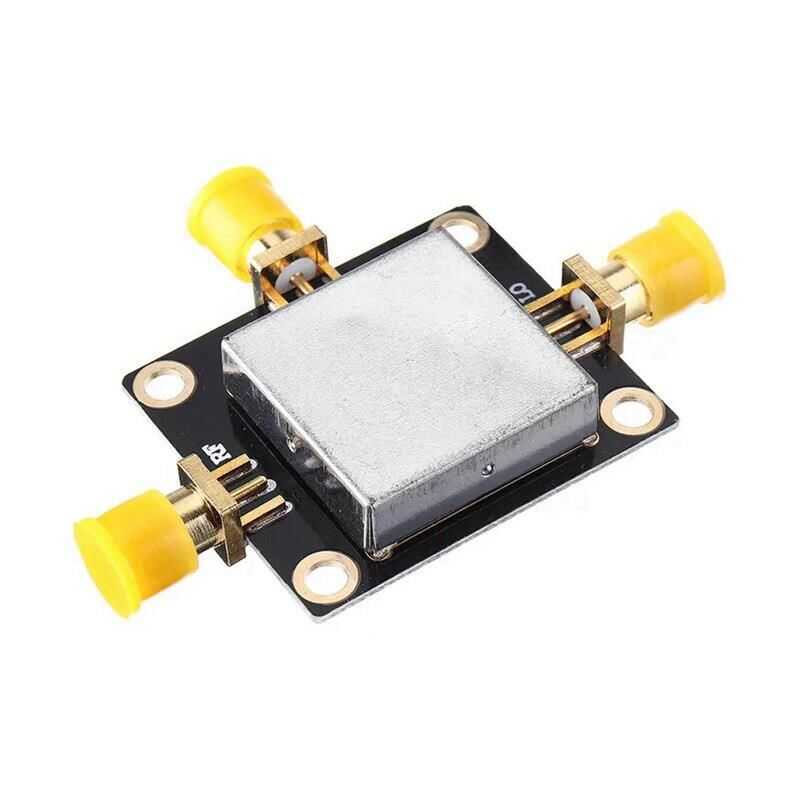

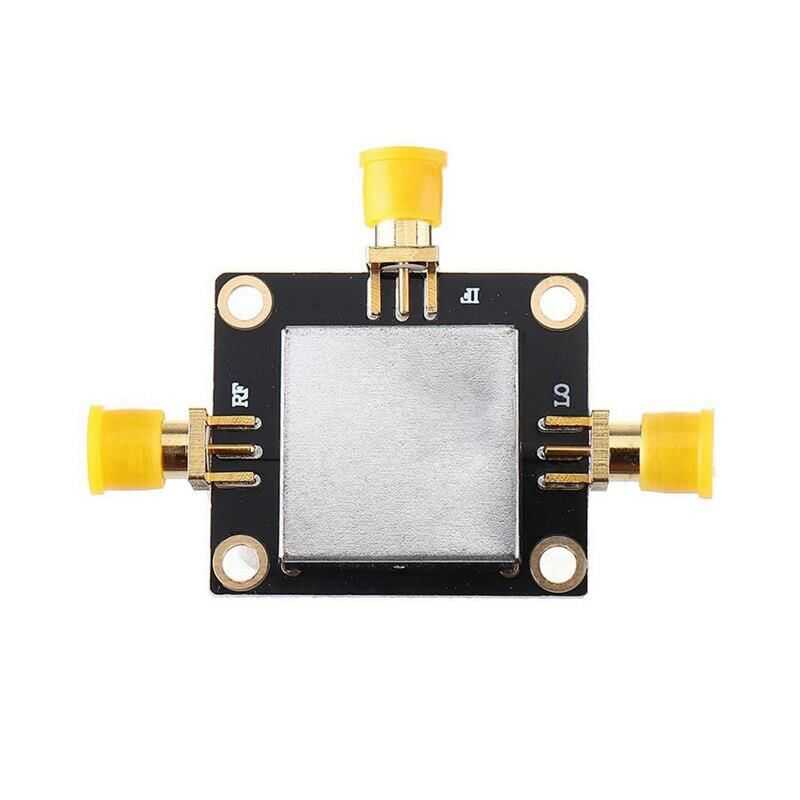

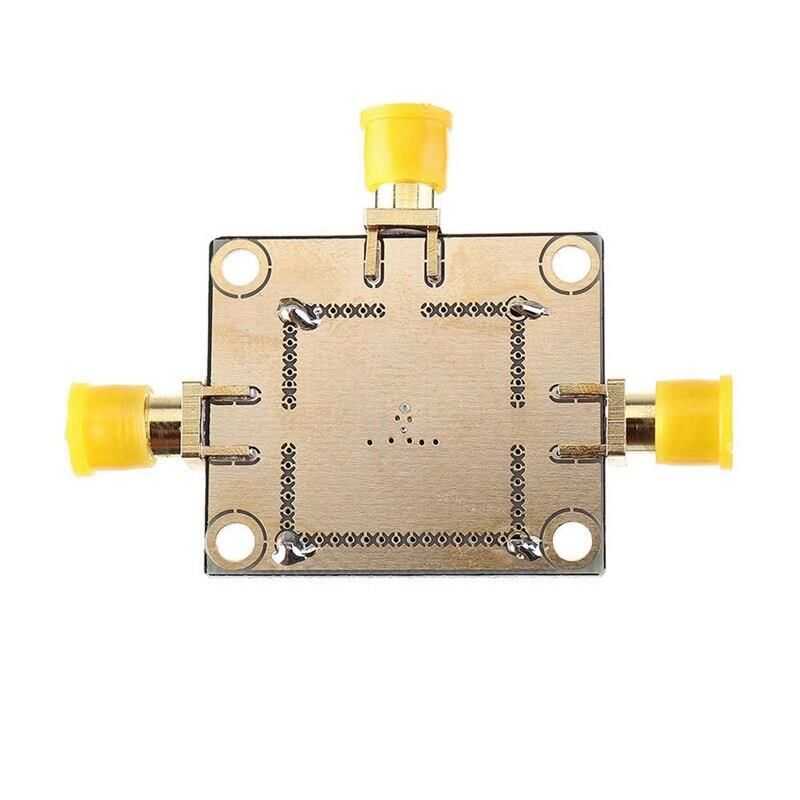

HMC412 9-15G Low Noise Dual Balanced RF Mixer Module



The mixer has the advantage of high isolation. It has low conversion loss of 8dB GaAs Schottky diode and uses new in-plane transformer chip barron structure. It can be used as up converter, down converter, two phase modulator and demodulator or phase comparator.

Model: HMC412 module

Conversion loss: 8db

LO - RF isolation: 25 dB

LO - IF isolation: 25dB

Frequency range, RF and LO: 9-15G

Frequency range, IF: DC-2.5G

Noise coefficient (SSB): 8dB

1dB gain compression (input): 9.5dBm

IP3 (input): 17dBm
