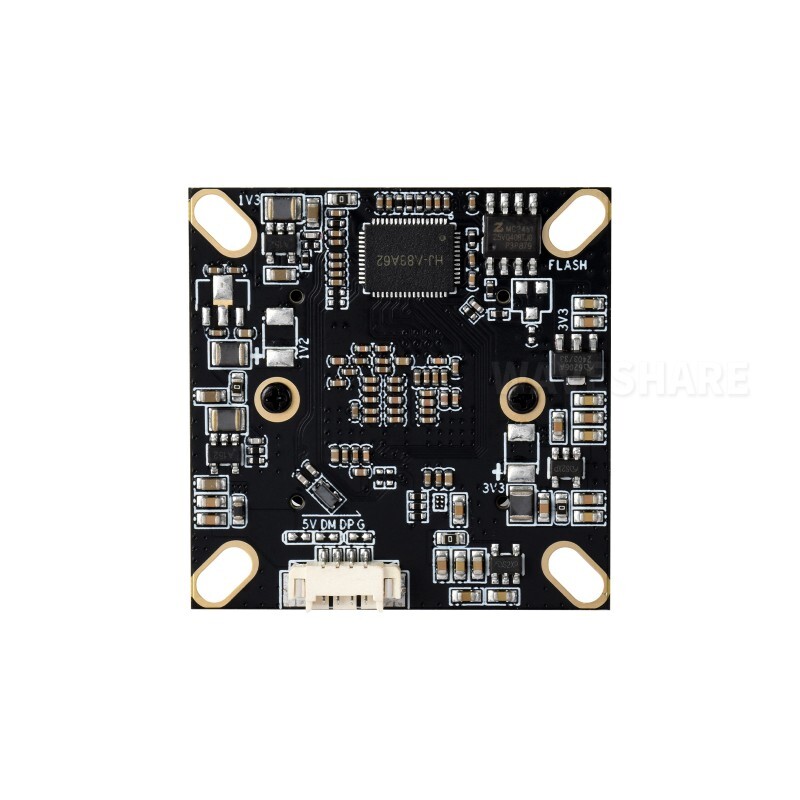

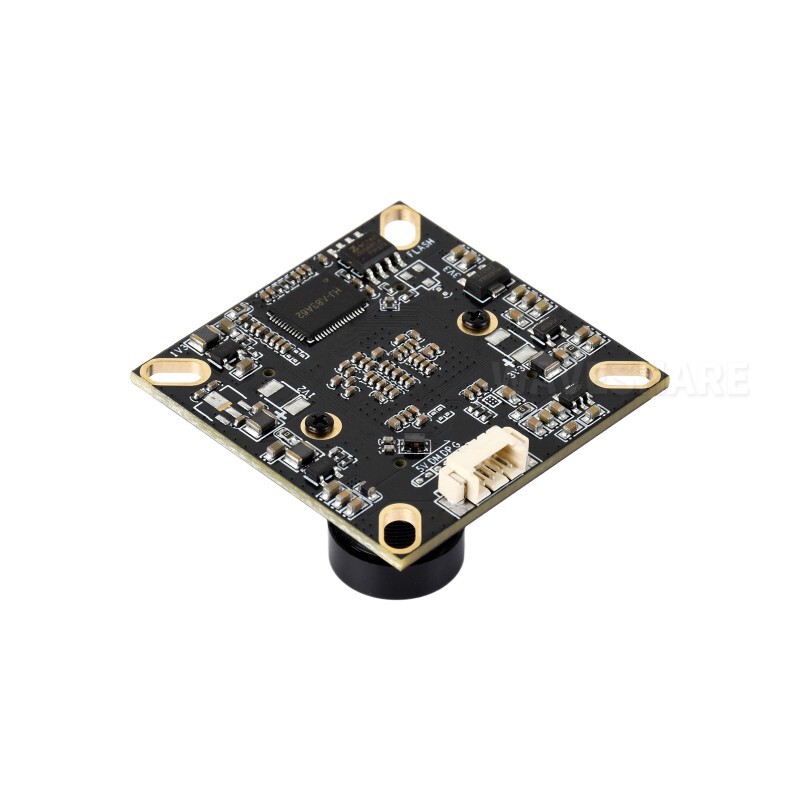

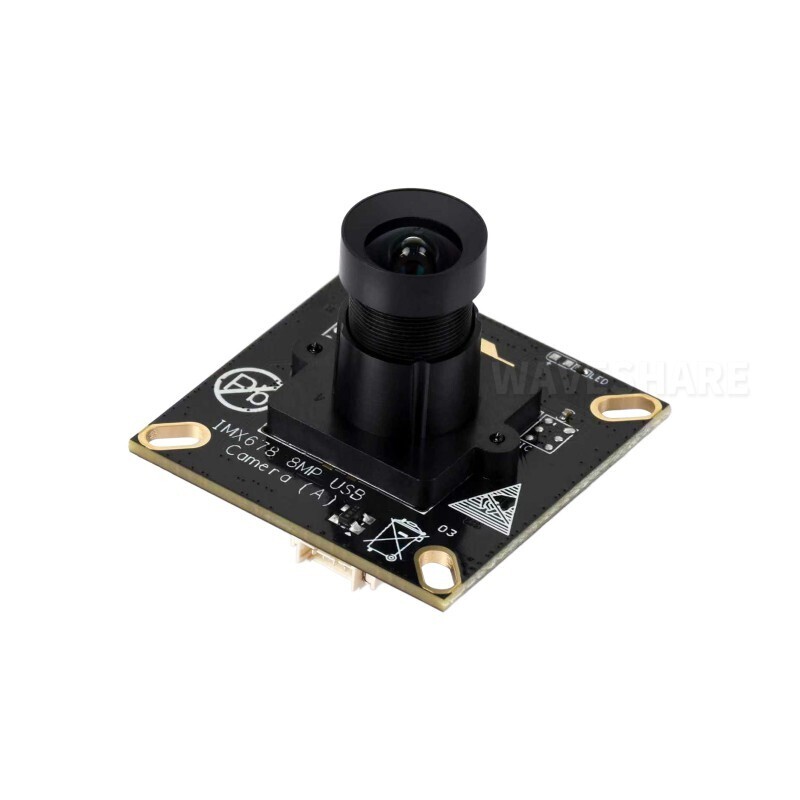

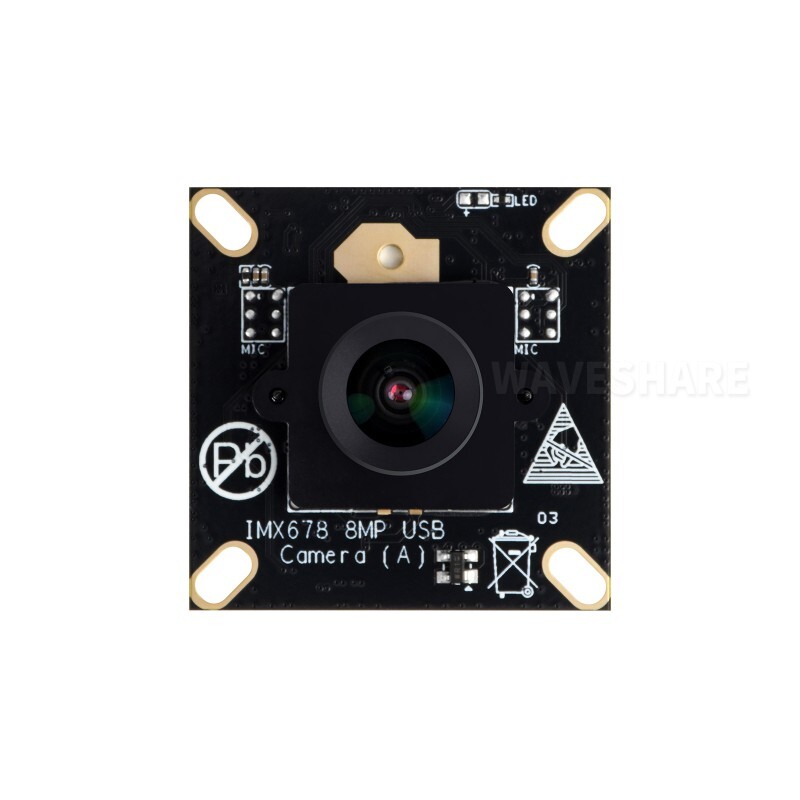

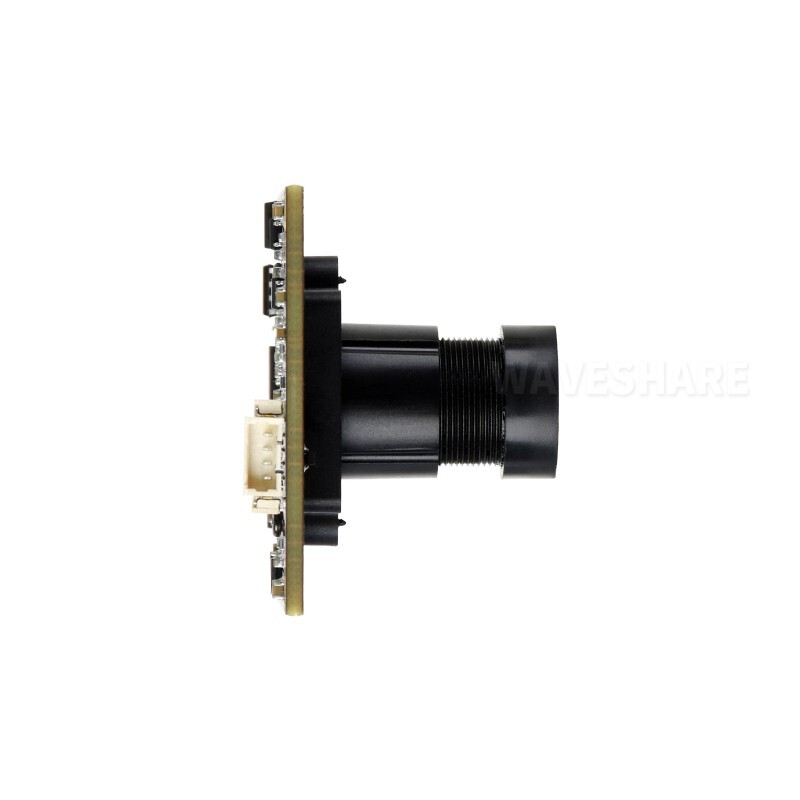

IMX678 8MP M12 USB Camera Module

IMX678 8MP M12 USB Camera Module

The IMX678 8MP M12 USB Camera Module features the IMX678 sensor chip. It provides a better imaging effect in low light conditions, delivering clear images without dark or blurry shots. With its 8MP resolution, it captures clear images at both near and far distances.

User Manual

Features

• SKU: 32641
• Pixels: 8MP
• Sensor chip: IMX678
• DSP: Auto gain/exposure/white balance
• Camera:

  • CCD size: 1/1.8 inch
  • Aperture (F): 2.4
  • Focal Length (EFL): 4.2mm
  • Field of View (FOV): 93°(D) 86°(H) 55°(V)
  • Distortion: < -1.2%
• Focus mode: Fixed focus
• Interface type: USB2.0
• Image:

  • Supported image formats: MJPG, YUY2
  • Static image resolution: 3840 × 2160
  • Video recording (MJPG):
    30FPS 3840×2160
    30FPS 2880×2160
    30FPS 2048×1536
    30FPS 1920×1080
    30FPS 1600×1200
    30FPS 1280×960
    30FPS 1280×720
    30FPS 800×600
    30FPS 640×480
  • Video recording (YUY2):
    1.5FPS 3840×2160
    1.5FPS 2880×2160
    3.75FPS 2048×1536
    3.75FPS 1920×1080
    5FPS 1600×1200
    7.5FPS 1280×960
    10FPS 1280×720
    10FPS 1024×768
    20FPS 800×600
    20FPS 640×480
• Operating voltage: 5V ± 5%
• Operating temperature: 0°C ~ 50°C
• Dimensions: 38.00 × 38.00 × 24.93 (mm)
• Supported systems: Windows, Linux, macOS

Package Contents

• IMX678 8MP USB Camera (A) x1
• USB Type-A - MX1.25 4PIN cable ~1.5m x1

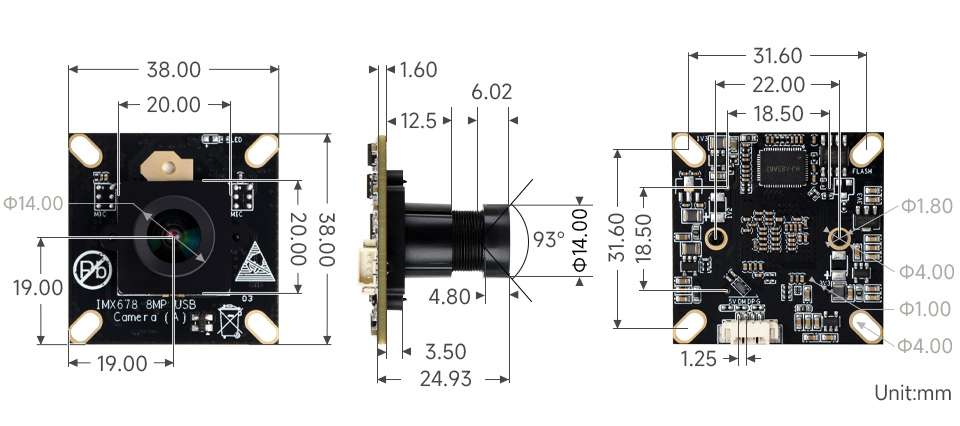

Dimensions
