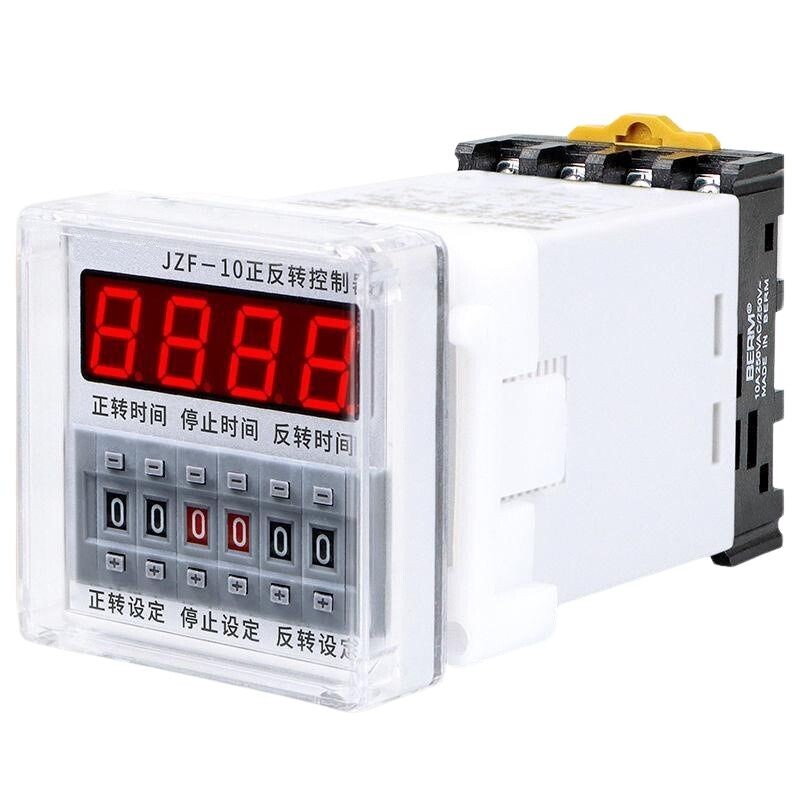

JZF-10 DH48S-S AC 220V Timed Relay Module - Double Time

JZF-10 DH48S-S AC 220V Timed Relay Module - Double Time. DH48S-S is a timed relay module with a digital display that works with 220V and can switch AC or DC. It is a circular delay type time relay, it opens and closes the circuit according to a preset cycle.

Circular Delay:

Applying the preset on-off time for the time relay cyclically when the power is applied.

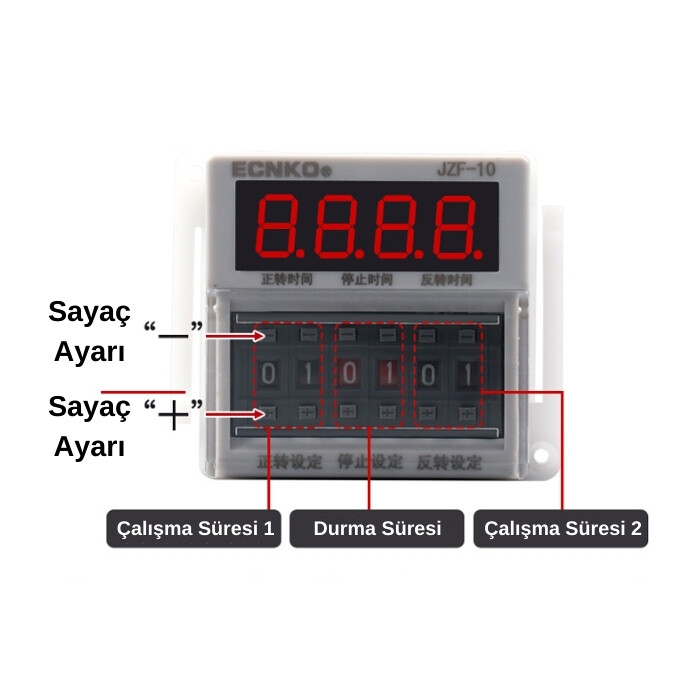

The first set time of the product is the first working time. After this time, it stops for the time set in red in the middle. Afterwards, it works for the second set time and stops again. This process continues in a loop. Seconds can be set on the product. It can be set between 0 - 99 seconds.

Technical Specifications

Working Voltage: 220V AC
Working Mode: Circular Delay
Adjustable Time: 0 - 99s
Repetition Error: <1%
Number of Contacts: 1
Contact Capacity: 250V AC 5A / 24V DC 7A
Working Temperature Range: -5 ~ 45°C
Electronic Life: >10⁵
Mechanical Life: >10⁸
Dimensions: 95x45x50mm
