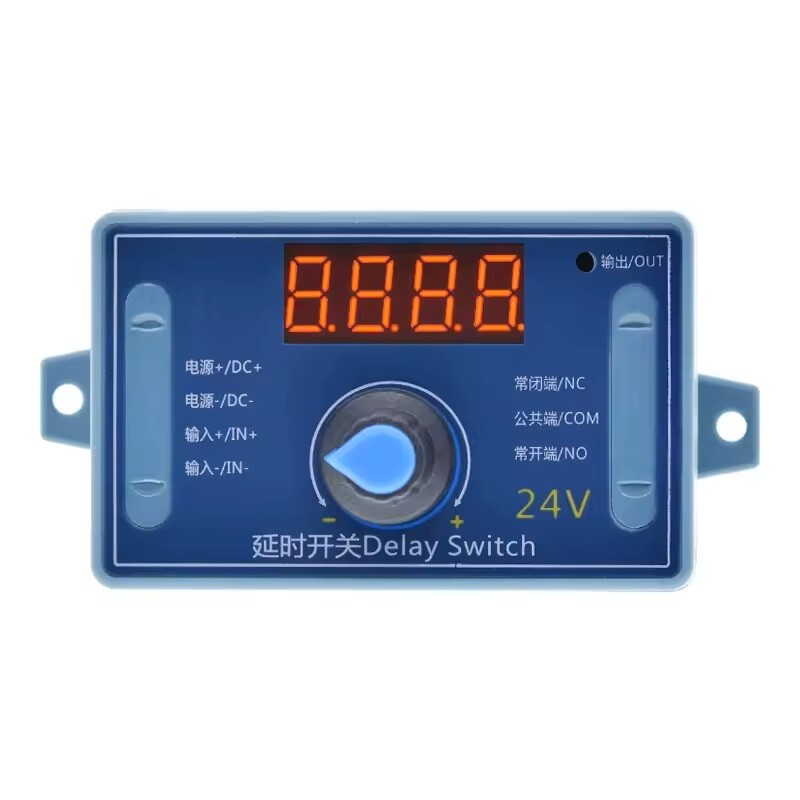

Relay Module with 24V Time Setting with 32 Modes - Boxed

Relay Module with 24V Time Setting with 32 Modes - Boxed

Features

• Supply Voltage: 24VDC
• Output Load: 30VDC 10A/250VAC 5A
• Operating Temperature December: -25~85°C
• Dimension: 70.3x44.2x23mm
• Memory Function

Setting the Mode

The device turns on when you press the encoder on the product for a short time once, and the device turns off when you press it again in the same way.

When you press for a long time (about 3 seconds), the mode appears on the selection screen. You can turn the encoder right-left to come to the mode you set.

When it comes to the set mode, it enters the mode when you press for a long time again.

You can set the duration by turning the encoder to the right-left and pressing on it for a short time.

When the adjustment is finished, the setting is saved when you press for a long time. (If there are A-B times in the mode, it switches to the other time. The setting is saved again in your long-term edition.)

Product Manual

Modes

P-11: Pointing mode, with signal to close, without signal to open.
P-12: Self-locking mode, the relay state is flipped once after each trigger.
P-13: After triggering, the relay will be activated and disconnected after delaying for A time; the trigger is invalid during the delay.
P-14: After triggering, the relay will be activated and disconnected after A time delay; the trigger will be retimed during the time delay.
P-15: After triggering, the relay will be activated and disconnected after A time delay; the trigger will be timed out during the time delay.
P-16: After triggering, the relay will be sucked and disconnected after delay A time; trigger reset during delay (relay disconnected)
P-17: After triggering, the relay will suck during the signal duration, the input signal will disappear, and will be disconnected after A time delay; during the delay period, the relay will be triggered again to stay sucked, and the timing will stop until the last signal disappears, and will be disconnected after A time delay.
P-18: Immediately after power on, the relay will be activated and disconnected after a delay of A seconds; until the next power on.
P-21: Give a signal, and the relay will be activated after a delay time of A.
P-22: Give continuous signal, after A time delay, the relay will be activated; when the signal disappears, the relay will be disconnected.
P-23:Signal disappears for more than A time, the relay will be activated; with signal, the relay will be disconnected.
P-24: Give continuous signal, after A time, the relay will be activated; if the signal disappears after A time, the relay will be disconnected.
P-25: Give continuous signal, after A time, the relay will close; give continuous signal again, after A time, the relay will open
P-26: Give signal, the relay suck A time and then disconnect; After the signal disappears, the relay suck A seconds again and then stop
P-27: There is a pulse signal (. P-27: Relay open with pulse signal (... rising or falling edge), relay open without pulse signal, relay open after A time delay (continuous high or continuous low is considered as no pulse).
P-28:. After power up, the relay will be activated after delay time A until power off.
P-31:. After power on, the relay is activated for A time and disconnected for B time, infinite cycle; power off stops.
P-32: With a continuous signal, the relay will be closed for A time and closed for B time, infinite cycle; when the signal disappears, the cycle will be terminated.
P-33: Give a signal once, the relay will absorb A time and disconnect B time, infinite cycle; give a signal again, terminate the cycle.
P-34: After power on, after delaying A time, the relay will be sucked, and after sucking B time, it will be disconnected.
P-35: Give a signal once, after delay A time, the relay will be activated, and after activated B time, it will be disconnected.
P-36: Give continuous signal, after A time is exceeded, the relay will be activated, after B time is activated, the relay will be disconnected; the signal disappears, the timing is cleared and the relay is disconnected.
P-37:With signal, the relay will be automatically disconnected after A time, and then timing B time after disconnection, the signal trigger is invalid in A+B time.
P-38:With signal, the relay is automatically disconnected after A time, and then timed B time after disconnection, and then automatically disconnected after A time again.
P-41:No action with signal; signal disappears to trigger; the relay will open after A time delay.
P-42:Signal disappears; relay will be activated after delaying A time; relay will be disconnected after delaying B time again.
P-43: Signal disappears; relay will be activated after A time delay; relay will be disconnected after B time delay.
P-44:. After power on, the relay will be activated for A time and disconnected for B time; the relay will be disconnected and stopped after cycle C times.
P-45: No operation after power on; after giving signal, relay will be closed for A time and open for B time; after cycle C, relay will be closed and stop; if signal is given, it will be executed again.
P-46:After giving signal more than A times, the relay is sucking; keep sucking; disconnect and stop.
P-47:After giving a signal more than A times, the relay is sucked; after sucking B time, it is disconnected.
P-48: After giving the signal more than A times continuously in C time, the relay will be opened and stopped after B time.
