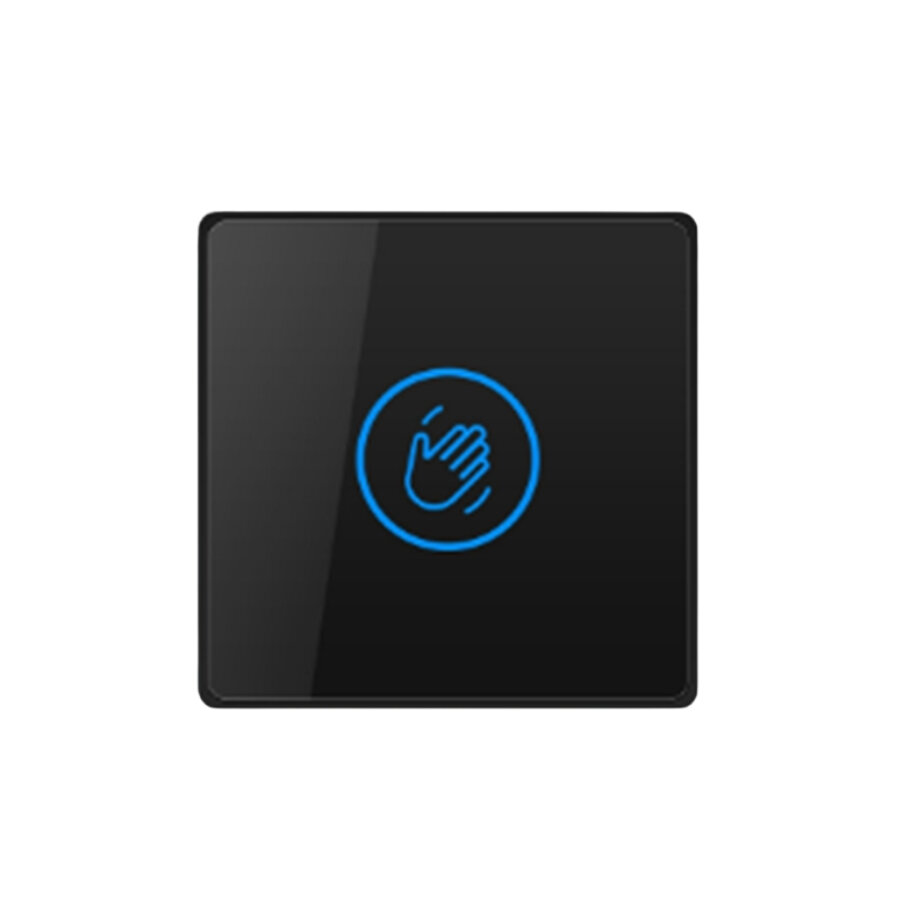

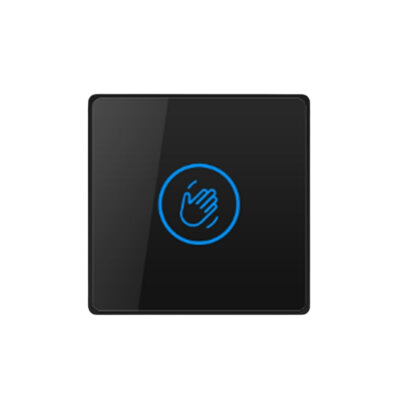

K83 Black Automatic Door Touchless Hand Sensor

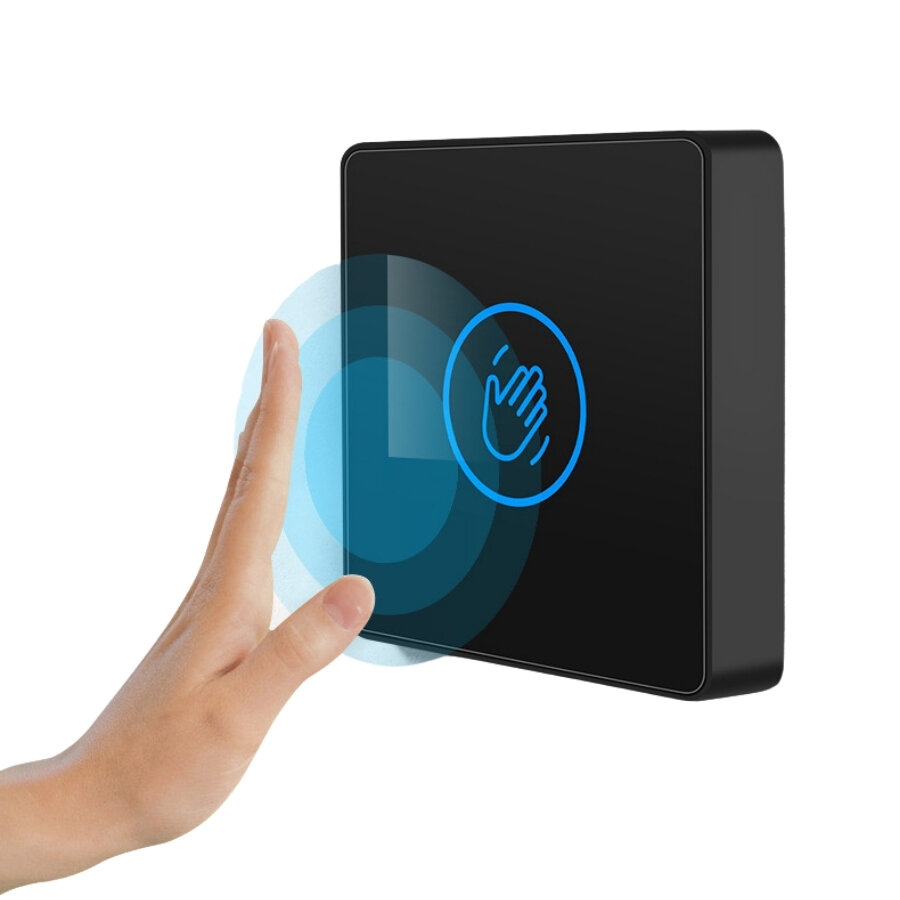

The K83 Black Automatic Door Touchless Hand Sensor, with its acrylic panel, is a touchless hand sensor that can be used on automatic doors. It can detect your hand from a distance of 1 cm and open the door.

Because it's touchless, it's a practical and hygienic product. It has a surface-mounted structure. This is a no-touch button model designed for use in automatic access systems without requiring physical contact.

Features

Operating Voltage: 12-24VDC
Color: Black
Contact: NO/NC
Sensing Distance: 1cm
Operating Temperature Range: -10 to 55°C

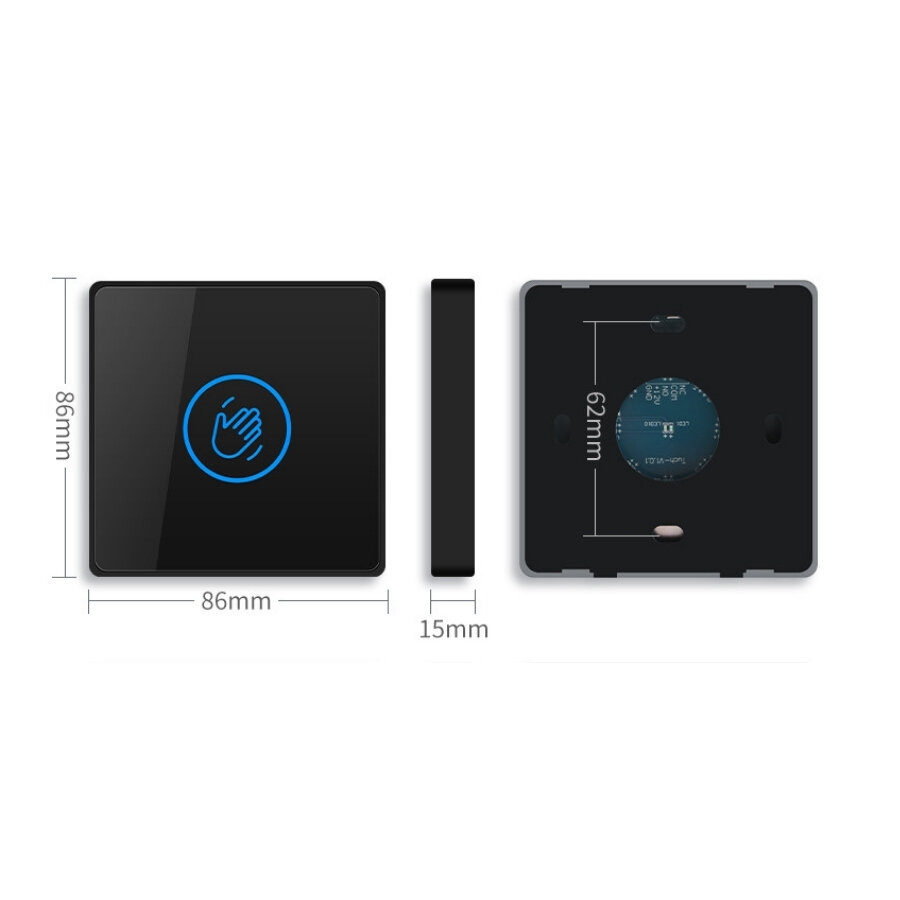

Dimensions: 86x86x15mm

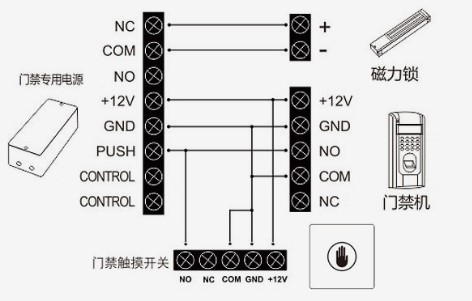

Connection

k83-wiring-diagram
