K83 White Wireless Automatic Door Non-Contact Hand Sensor

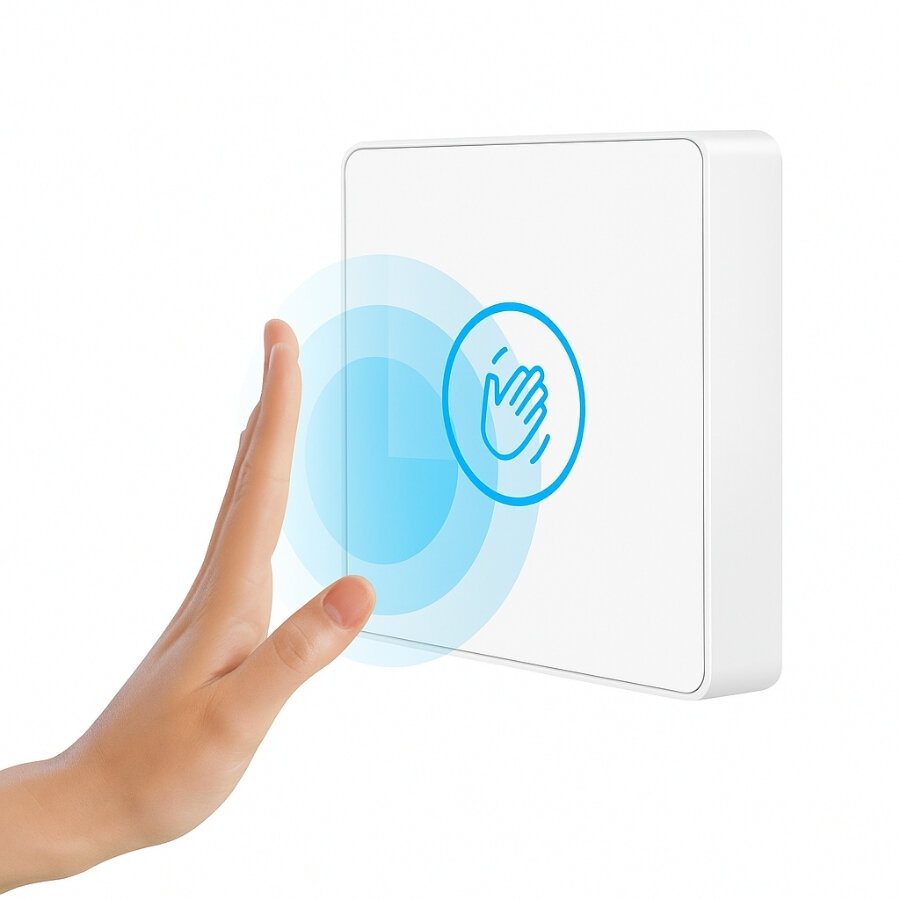

The K83 White Wireless Automatic Door Non-Contact Hand Sensor, with an acrylic panel, is a touchless hand sensor that can be used on automatic doors. It glows blue when idle and green when triggered. It can detect your hand from 1 cm away and open the door.

Because it is touchless, it is a practical and hygienic product. It has a surface-mounted structure. This no-touch button model is designed for operation in automatic access systems without requiring physical contact.

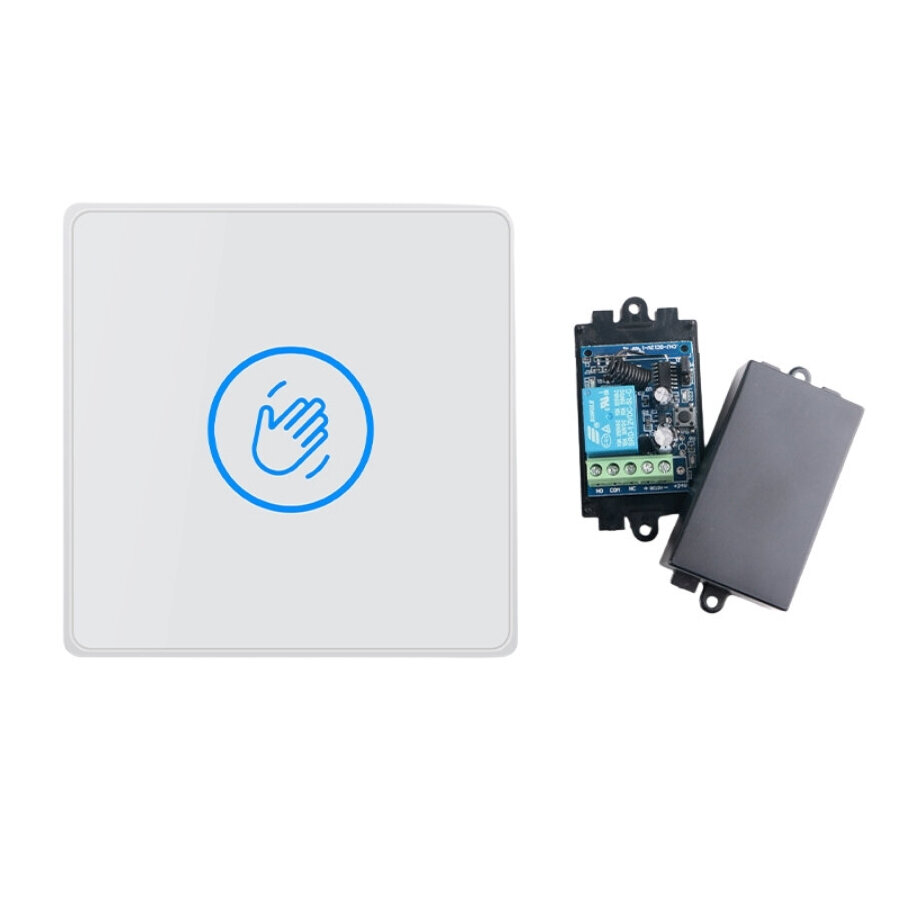

A wireless relay module is included with the product. With this module, the trigger signal from the sensor is directly transferred to the relay. This eliminates the need for any wiring between the sensor and the control relay module.

A CR2032 battery is included with the product for installation in the sensor.

Features

Operating Voltage: 12-24VDC
Color: White
Contact: NO/NC
Sensing Distance: 1cm
Operating Temperature Range: -10 ~ 55°C

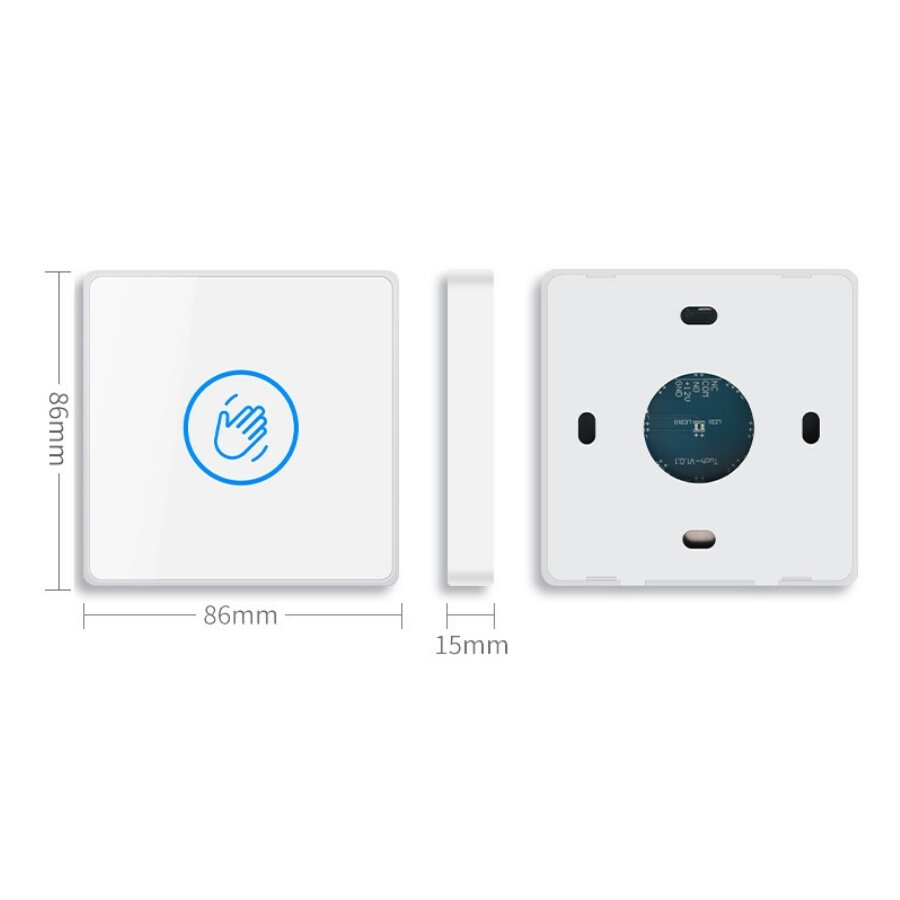

Dimensions: 86x86x15mm

Connection

k83-wiring-diagram
