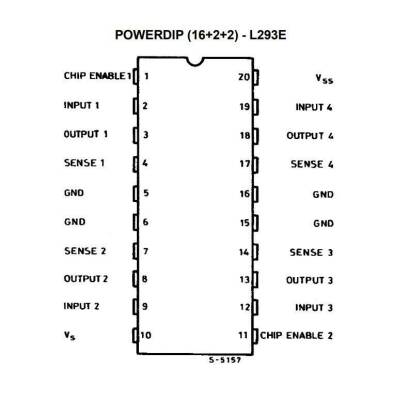

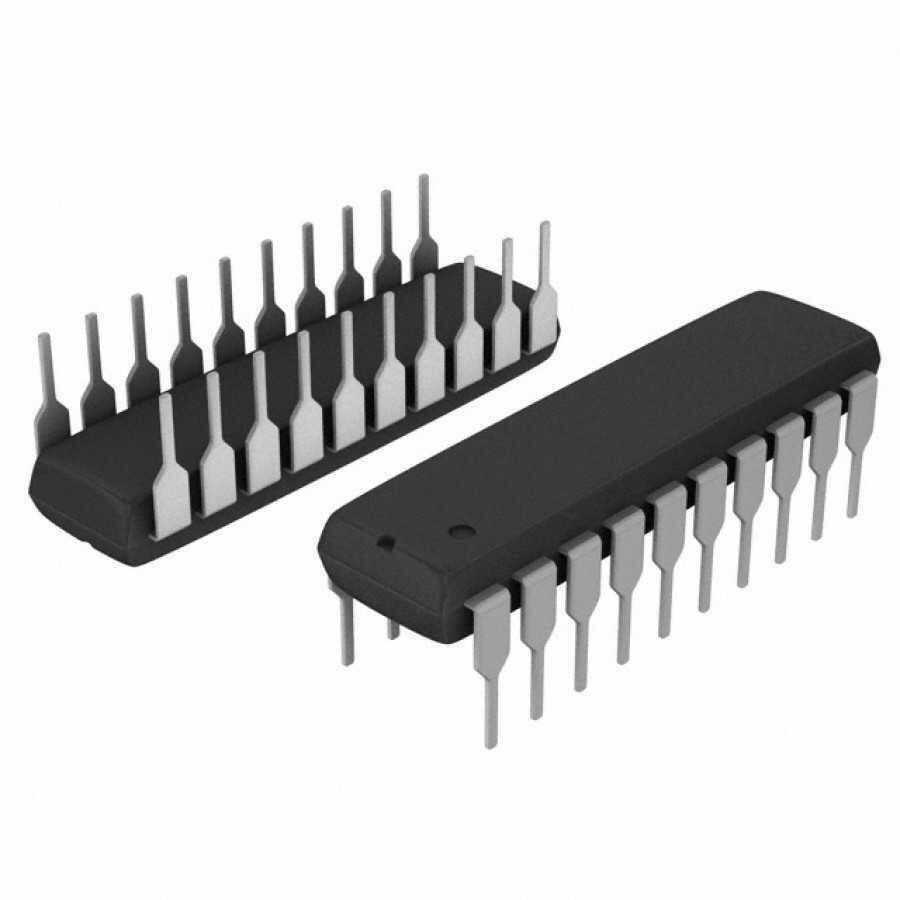

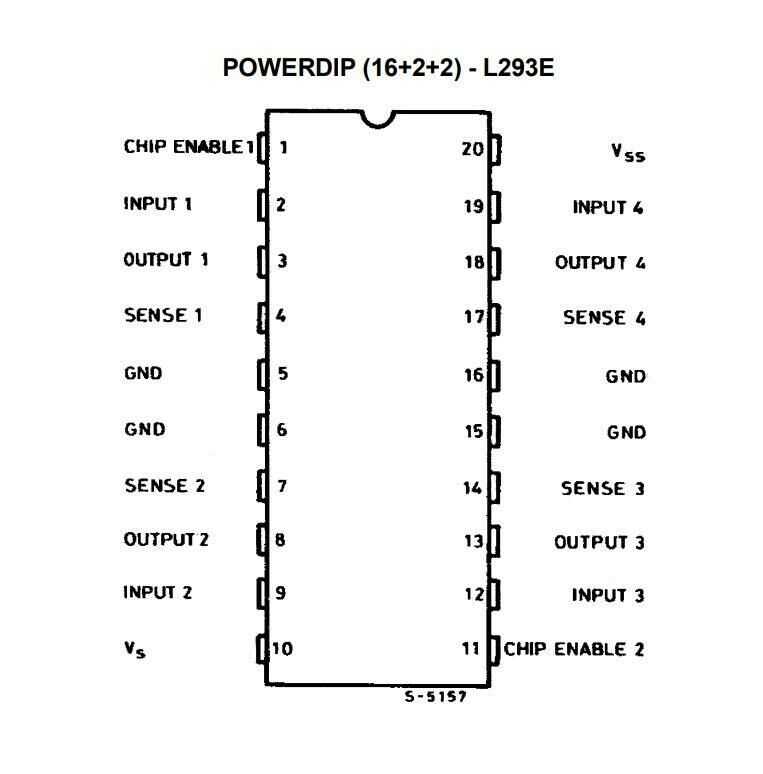

L293E DIP-20 Motor Driver IC

L293E are quad push-pull drivers capable of delivering output currents up to 1A per channel. Each channel is controlled by a TTL-compatible logic input, and each driver pair (full bridge) is equipped with a blocking input that turns off all four transistors. A separate supply input for the logic is provided so that it can be operated with a lower voltage to reduce dissipation. Additionally, the L293E features external connection of sense resistors for switching mode control.
