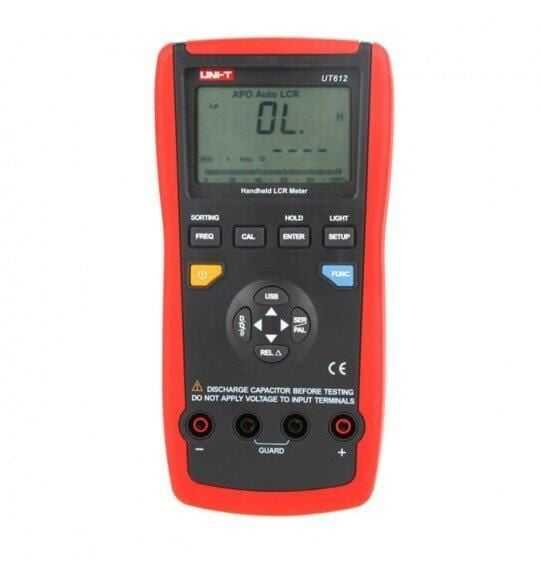

LCR Multimeter UT612 - Measuring Instrument

UT612 LCR meter is a more advanced meter used to measure inductance, capacitance and resistance. Advanced features include series/parallel measurement modes, quality factor/loss/phase angle measurements, equivalent/DC resistance measurements, and 5 kinds of measurement frequencies in AC mode to choose from. UT612 can be easily used in production lines, component inspection and electronic maintenance.

Features

1. 26-segment analog bar chart

2. Serial / parallel mode (selectable)

3. 5 selectable frequency tests (100Hz / 120Hz / 1kHz / 10kHz / 100kHz)

4. Open/short circuit calibration compensation

5. Smart selection mode for quick selection of components

6. Mini-USB transmission to PC

7. Deviation rate measurement

8. Data hold, LCD backlight, auto power off

9. relative mode

10. Loss factor (D), quality factor (Q), phase angle (θ), equivalent series resistance (ESR), equivalent parallel resistance (EPR) and DCR DC resistance measurements
