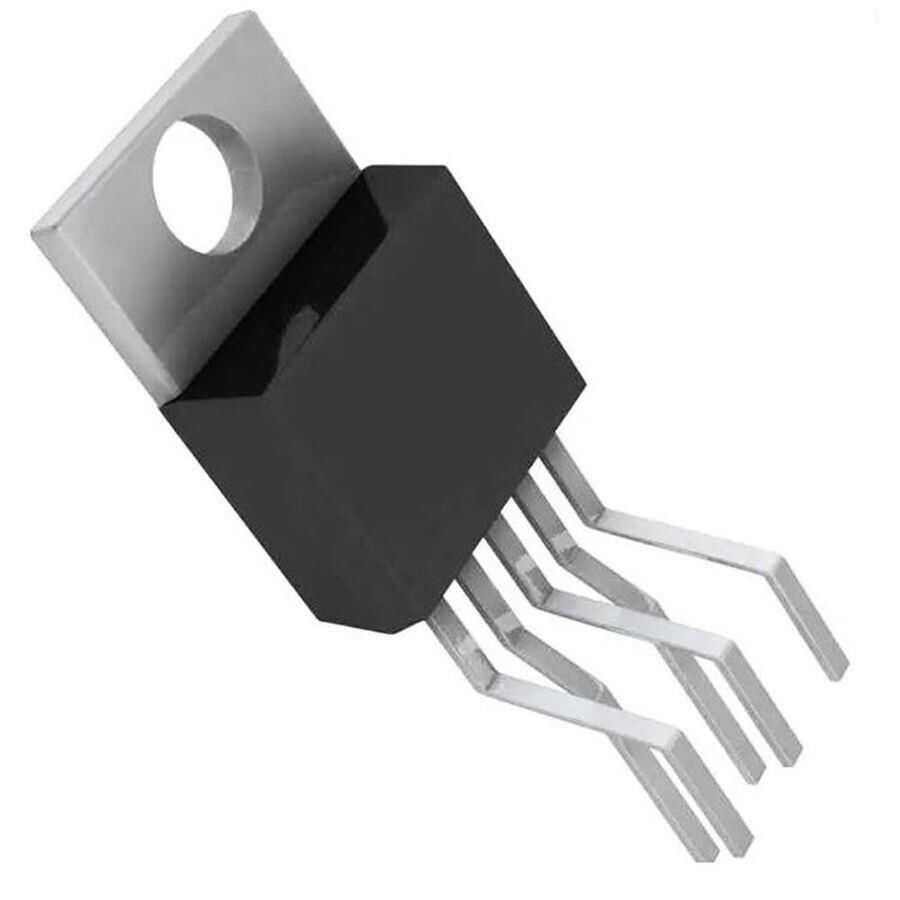

LM1875 TO-220 Audio Amplifier IC

The LM1875 is a monolithic power amplifier that offers very low distortion and high-quality performance for consumer audio applications.

LM1875 delivers 20 watts to 4 or 8 loads on ±25V sources. Over 30 watts of power can be provided using 8 loads and a ±30V supply. The amplifier is designed to operate with minimal external components. Device overload protection consists of both internal current limit and thermal shutdown.

Usage Areas

High Performance Audio Systems

Bridge Amplifiers

Stereo Phonographs

Servo Amplifiers

Instrument Systems

Series	LM1875
Supply Voltage	16V - 60V
Output Power	25W
Sound - Load Impedance	8 ohm
THD Noise	0.015%

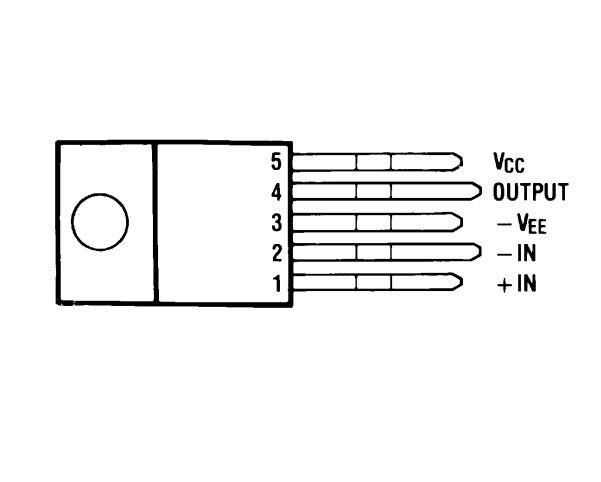

Number of Pins	5 Pin
Package Type	TO-220

LM1875 Datasheet
