LM2575T-ADJ Voltage Regulator - TO220

LM2575 series regulators are ideal monolithic integrated circuits for the easy and convenient design of a step-down switching regulator. All circuits of this series can drive 1.0 A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5.0 V, 12 V, 15 V and adjustable output versions.

These regulators are designed to minimize the number of external components to simplify power supply design.

Areas of Use

Simple and Highly Efficient Step Buck Regulators
Efficient Pre-regulator for Linear Regulators
On-Board Switching Regulators
Positive and Negative Converters (Buck − Boost)
Negative Boost Converters
Power Supply for Battery Chargers

Series	LM2575
Output Type	ADJ
Output Voltage	1.23 V to 37 V
Input Voltage	4.75 - 40V
Current Output	1A

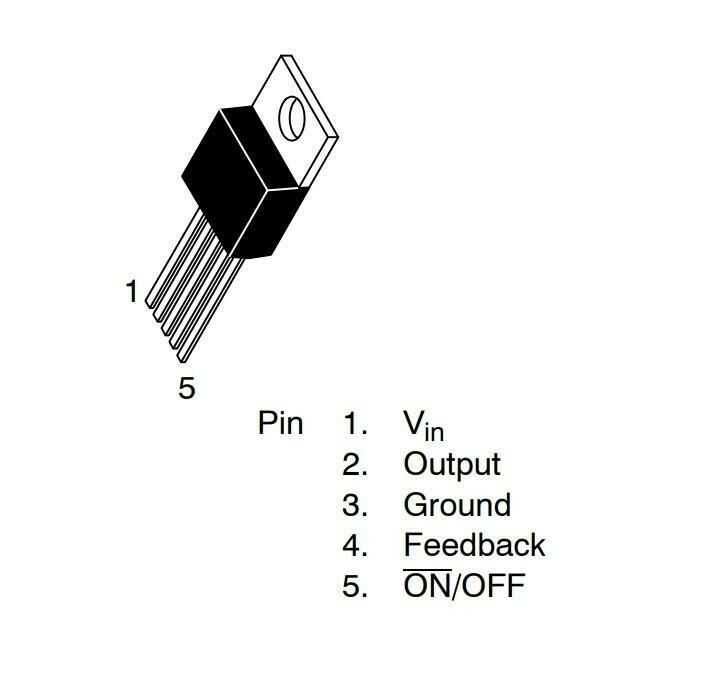

Package Type	TO-220

LM2575 Series Datasheet
