LM2940 5V TO-220 Voltage Regulator

The LM2940-N and LM2940C positive voltage regulators are capable of providing a typical drop voltage of 0.5 V and a maximum output current of 1 V to 1 A over the entire temperature range. Additionally, a quiescent current reduction circuit is included that reduces the ground current when the difference between the input voltage and the output voltage exceeds approximately 3 V. With an output current of 1 A and an input-output difference of 5 V, the quiescent current is therefore only 30 mA. Higher quiescent currents are only available when the regulator is in dropout mode (VIN − VOUT ≤ 3 V).

Usage Areas

Regulator for Switching Consumables

Logic Power Supplies

Industrial Instrumentation

Series	LM2940
Supply Voltage	6.25V - 26V
Output Voltage	5V
Output Current	1A
Number of Exits	1 Exit
Number of Pins	3 Pin

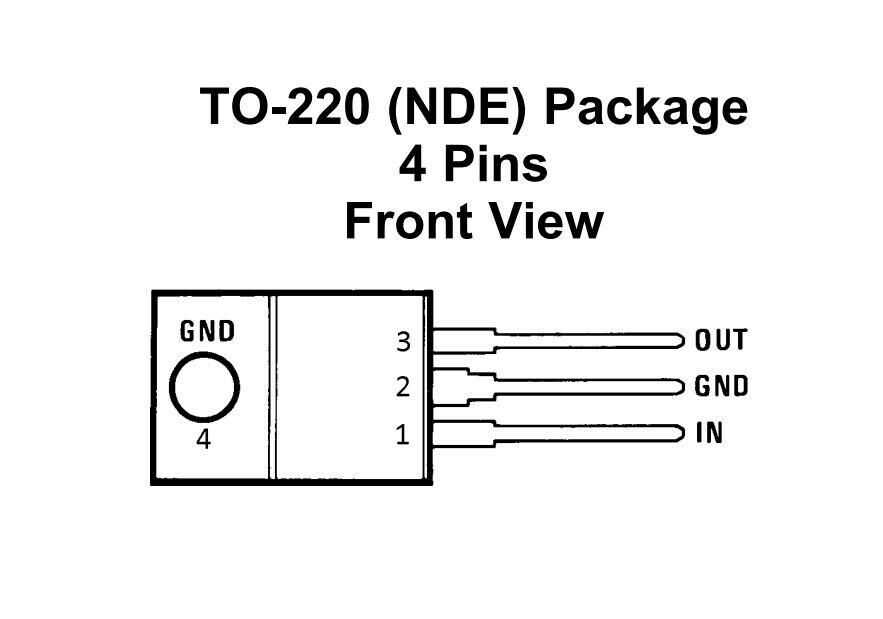

Package Type	TO-220

LM2940 Datasheet
