LM321MFX/NOPB SOT23-5 OpAmp IC

LM321 brings performance and economy to low-power systems. With a high unity gain frequency and a given 0.4-V/µs slew rate, the quiescent current is only 430-µA/amplifier (5 V). The input common mode range includes ground and therefore the device can operate in single-supply applications as well as dual-supply applications. It is also capable of driving large capacitive loads comfortably.

Usage Areas

Chargers

Power supplies

Industrial: Controls, Instruments

Desktop computers

Communication Infrastructure

Series	LM321MFX
Supply Voltage	3V - 32V
GBP - Bandwidth	1 MHz
Per Channel Output Current	40 mA
Number of Channels	1 Channel
Number of Pins	5 Pin

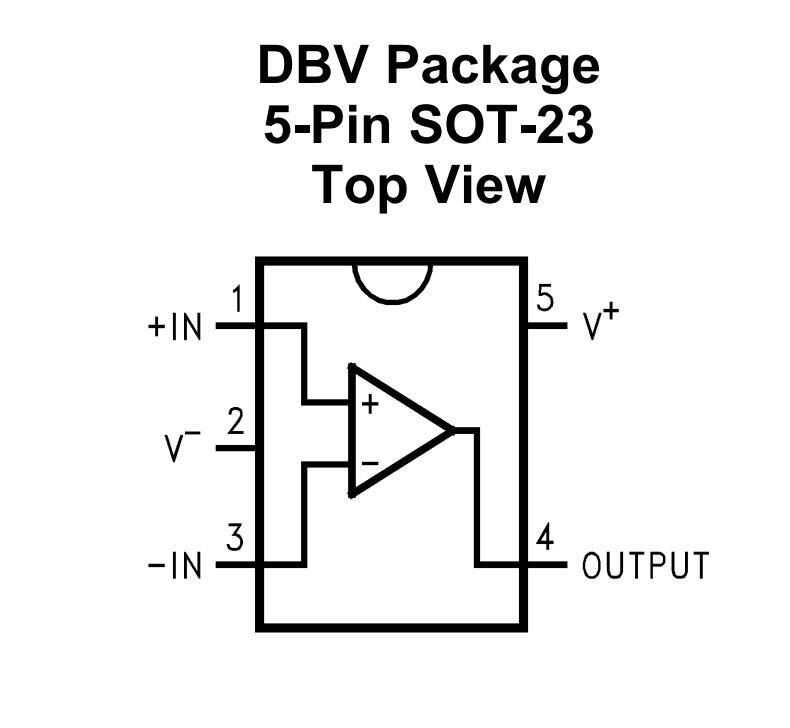

Package Type	SOT23-5

LM321MFX Datasheet
