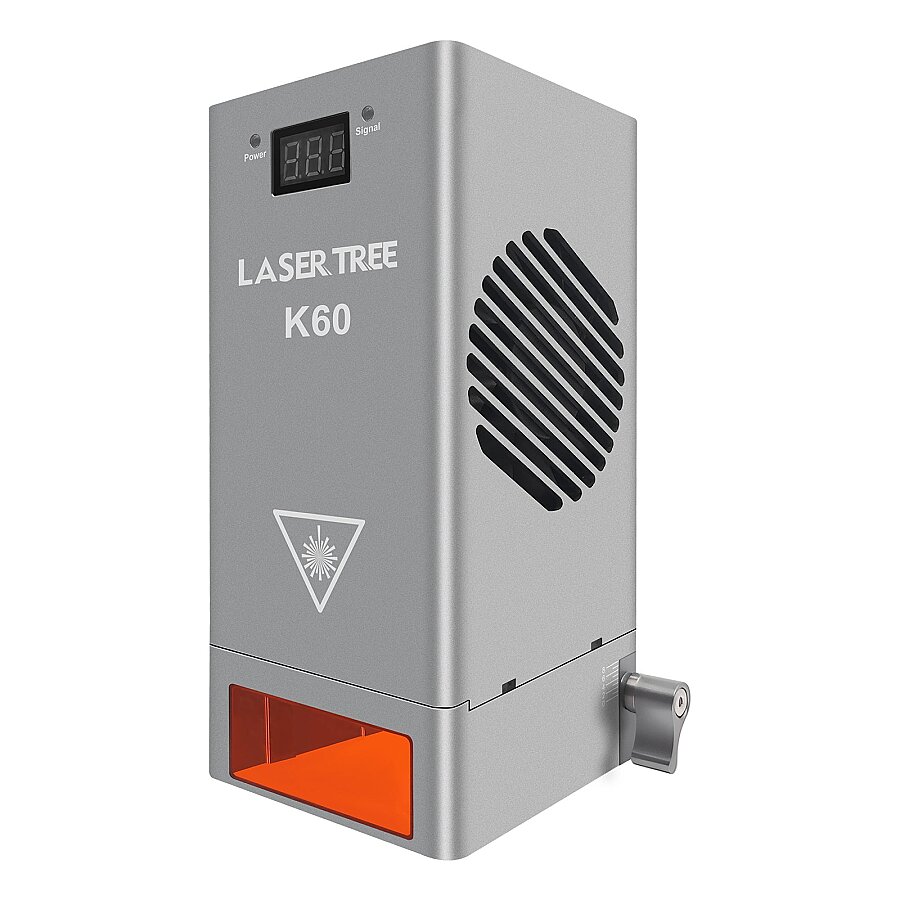

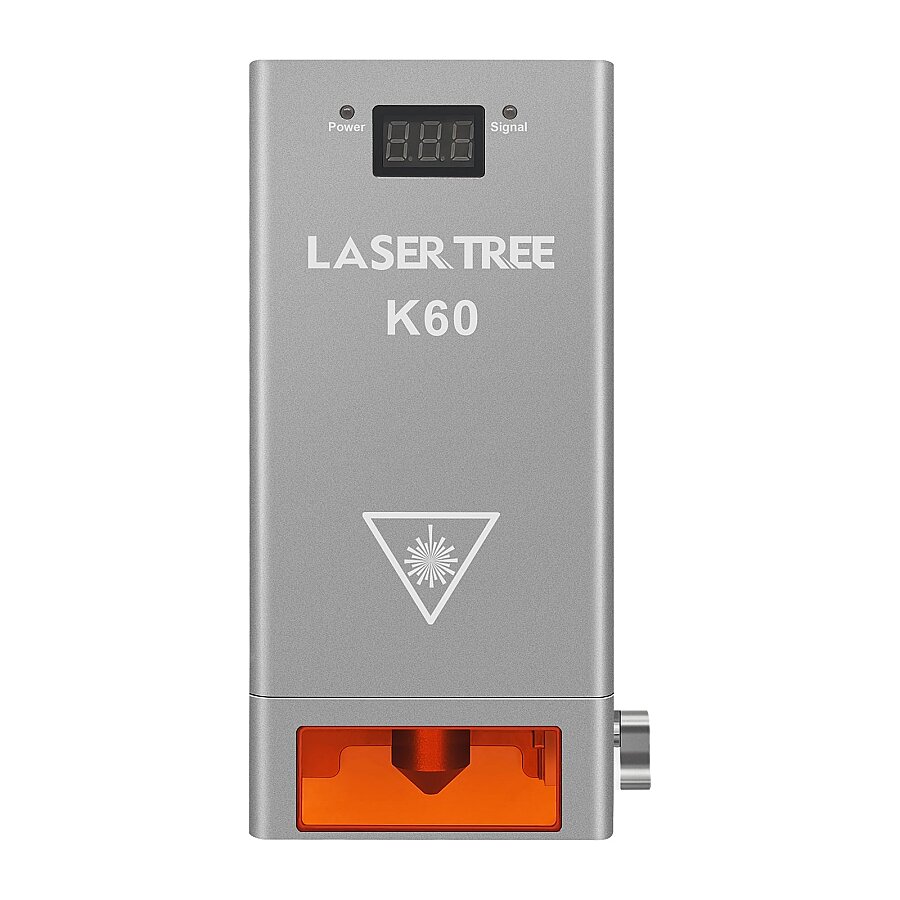

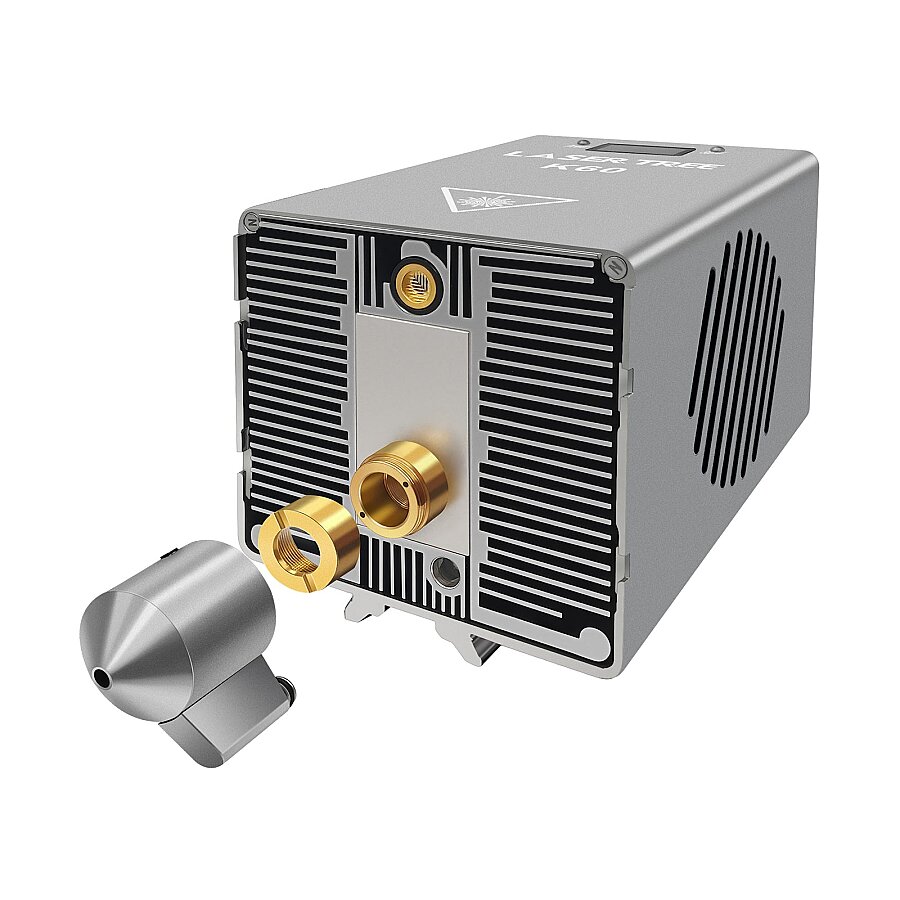

The LT-K60 60W 24V CNC Laser Module Kit is a 450nm blue diode laser module designed for high-power laser cutting and engraving, offering switchable optical power modes of 20W, 40W, and 60W. It enables a single laser head to meet diverse power requirements, ranging from precision engraving to high-power cutting tasks.

One of the K60's key features is its adjustable optical power capability. The module operates in 60W mode by default. Power selection mode is activated by pressing and holding the power selection button for approximately 5 seconds, allowing the user to cycle through the 60W, 40W, and 20W settings.

Thus, a lower power mode can be selected for engraving tasks that do not require high power, while the 60W mode can be chosen for intensive cutting operations.

Specifications

• Supply Voltage: 24V DC
• Supply Current: 10A
• Laser Type: Blue diode laser
• Optical Power Modes: 20W / 40W / 60W
• Maximum Rated Optical Power: 60W+
• Default Power Mode: 60W
• Power Mode Selection: Via button on the module
• Power Sequence: 60W → 40W → 20W
• Wavelength: 450nm ±10nm
• Focal Distance: 40mm
• 20W Spot Size: Approx. 0.15 × 0.15mm
• 40W Spot Size: Approx. 0.15 × 0.18mm
• 60W Spot Size: Approx. 0.15 × 0.25mm
• Power Control: TTL / PWM
• PWM Control Level: 0 / 3-12V
• PWM Frequency: 0-5kHz
• Electrical Connector: MR30
• MR30 Lines: 24V / GND / PWM
• Cooling: Active dual fan
• Fan Speed: 6000 RPM
