20W 450nm Burning CNC Laser - 5W Optical Power
The 20W 450nm Burning CNC Laser - 5W Optical Power is a burning laser that can be used to process wood, plastic, rubber, acrylic and other materials. Its wavelength is 450 Nm. It operates with 12V DC voltage.
Precautions Before Use
- Burning lasers are harmful to the human body and eyes. Therefore, avoid direct contact with the laser.
- When using this product, laser protective glasses should be worn to protect your eyes and prevent short-term glare caused by direct laser light.
Specifications:
- Supply Voltage: 12VDC
- Current: 3A
- Power: 20W
- Optical Power: 5.5W
- Wavelength: 450Nm
- Light Color: Blue
- Engraving Accuracy: 0.02mm
- Focal Distance: 3mm
- Minimum Focal Point Size: 0.09x0.09mm
- Cutting Depth: 3~4mm
- Materials it can process: plywood, fabric, wood, plastic, bamboo, paper, acrylic, ceramic, stainless steel, leather, cardboard, kraft paper, coated metal
- Dimensions: 33x33x180mm

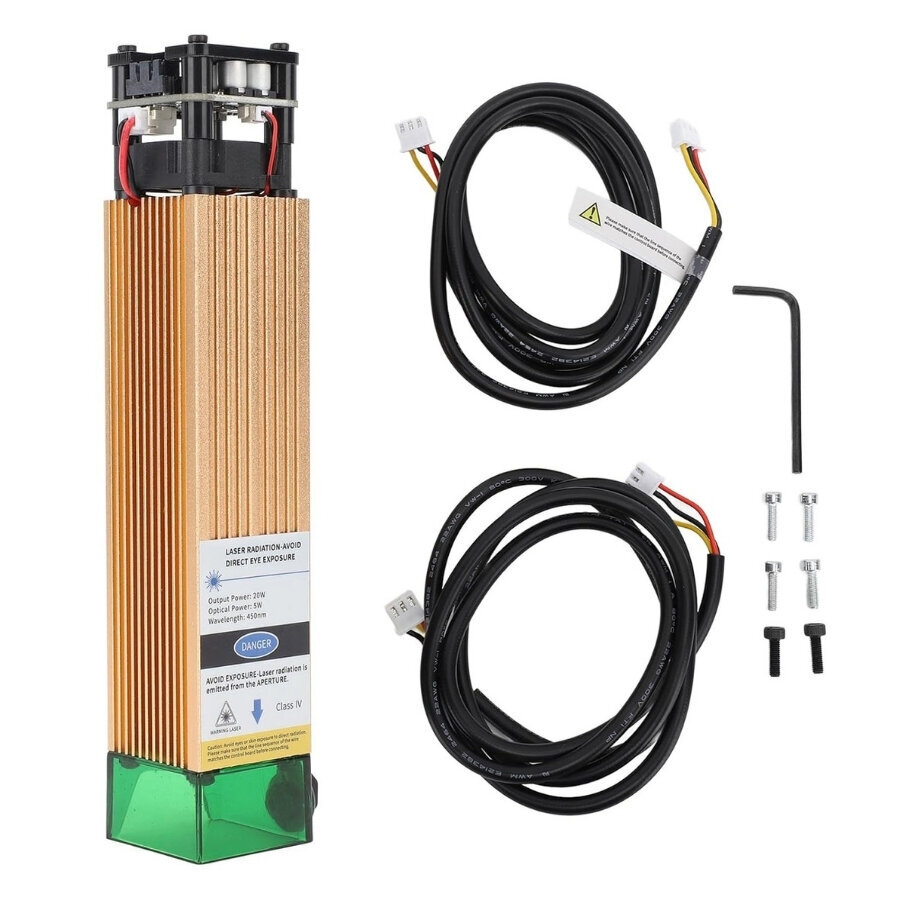

Two cables are included with the laser. The pin sequences of the ends of the cables that will be connected to the laser are the same (PWM-GND-12V), but the pin sequences on the opposite ends are different. You can connect the cable with the appropriate sequence for your device's circuit board and use it.
