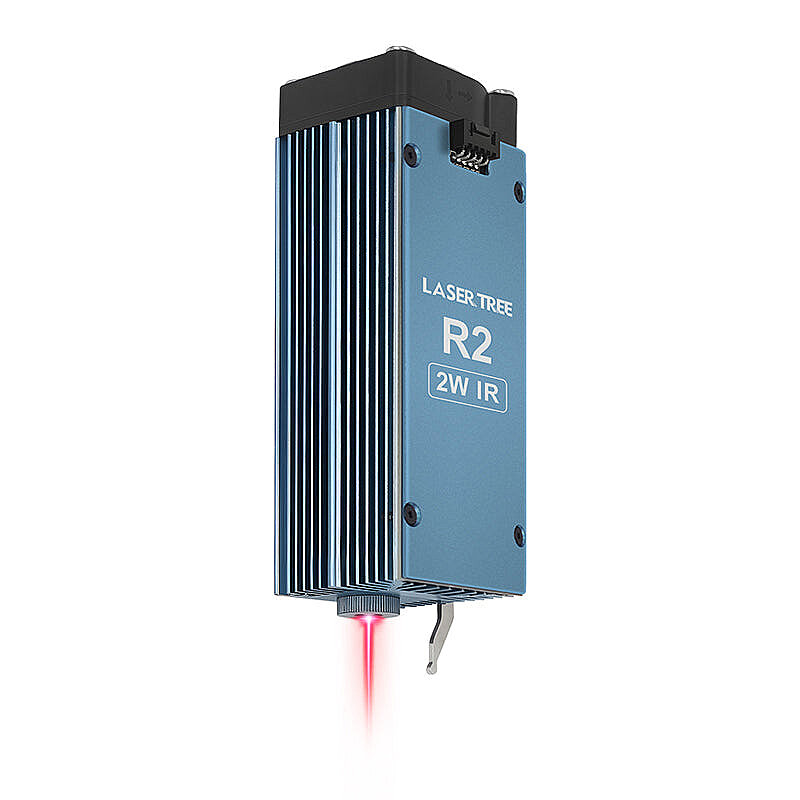

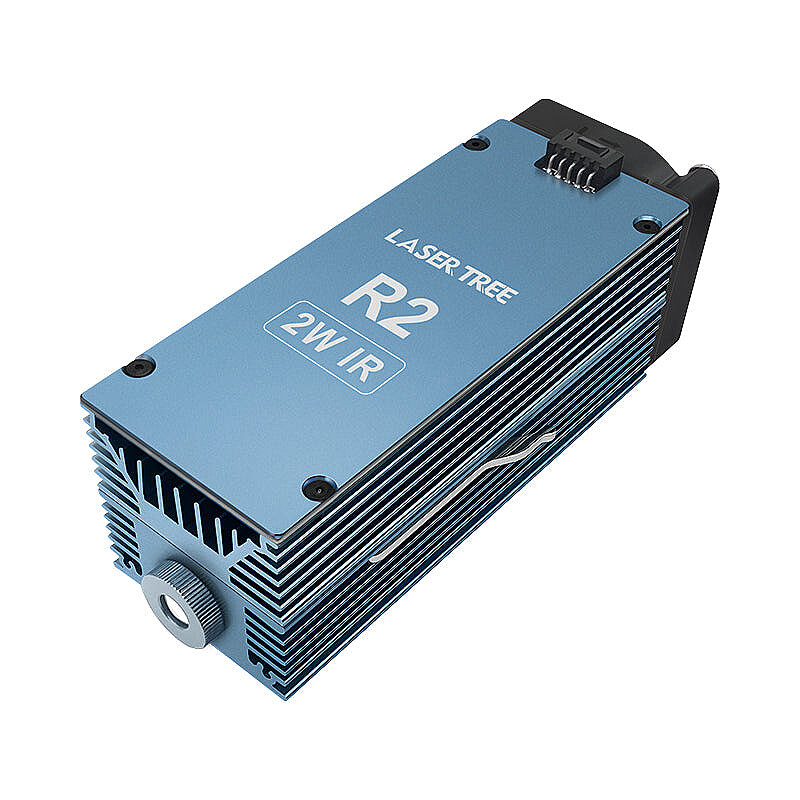

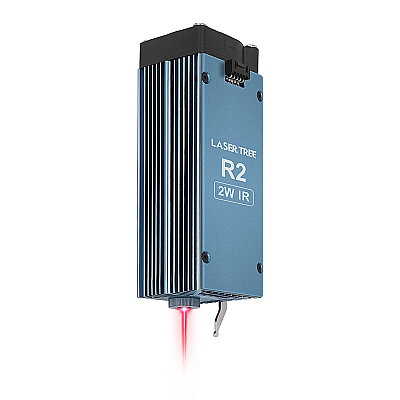

R2 2W 1064nm Infrared Laser Module
The R2 2W 1064nm Infrared Laser Module is a 1064nm infrared laser module with 2W of optical output power, designed for precision laser marking and engraving applications. Its laser spot size of approximately 0.03mm enables the processing of small text, fine lines, logos, and highly detailed patterns.
Specifications
- Supply Voltage: 24V DC
- Supply Current: 4A
- Laser Type: IR / Infrared
- Operating Mode: Pulsed laser
- Wavelength: 1064nm ±1nm
- Optical Output Power: 2W
- Laser Spot Size: Approx. 0.03 × 0.03mm
- Focal Length: 23mm
- Laser Power Control: PWM
- PWM Control Level: 0–5V
- PWM Frequency: 0–5kHz
- Module Input: XHB2.54 5-Pin
- Cooling: Active air cooling / fan
- Operating Temperature: 0°C – 60°C
- Storage Temperature: -10°C – +50°C
