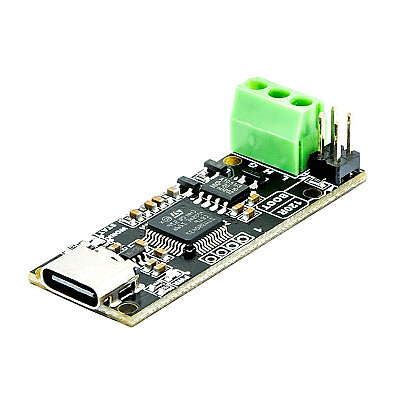

Makerbase CANable 2.0 USB to CAN Analyzer/Converter Module
1.300,00
TL
+
VAT
1.560,00
TL
Notify Me When It Arrives
Notify Me When It Arrives
Makerbase CANable 2.0 USB to CAN Analyzer/Converter Module
The Makerbase CANable 2.0 USB to CAN analyzer/converter module is a compact, open-source USB-to-CAN adapter. CANable is recognized by your computer as a virtual serial port and acts as an interface between the serial line and the CAN bus. When using the alternative candleLight firmware, CANable is detected as a native CAN interface on Linux. CANable 2.0 supports both standard CAN and CAN-FD protocols.
CANable adapters; It is compatible with ARM-based embedded system platforms such as Raspberry Pi, Raspberry Pi Zero, ODROID, and BeagleBone, and is highly suitable for integration into OEM products.
Features
- Microcontroller: STM32G431C8
- Processor Core: ARM Cortex-M4
- USB Connection: USB Type-C
- CAN Interface: CAN Bus
- USB Power Supply: 5V
- Classic CAN Speeds: 10 / 20 / 50 / 100 / 125 / 250 / 500 / 750 kbit/s and 1 Mbit/s
- CAN FD Data Rates: 2 Mbit/s and 5 Mbit/s (depending on firmware support)
- Firmware Support: slcan / candleLight
- Linux Compatibility: SocketCAN
- LED Indicators: Power and status LEDs
- Reset Button: Yes
- Programming / Debug: SWD / JTAG
- CAN RX: PB8
- CAN TX: PB9
- USB D-: PA11
- USB D+: PA12
- Main System Clock Speed: 160 MHz
- FDCAN Peripheral Clock Speed: 80 MHz
