Mini Dual Gigabit Ethernet Base Module - Raspberry Pi CM5 Compatible

Mini Dual Gigabit Ethernet Base Module - Raspberry Pi CM5 Compatible

The CM5-DUAL-ETH-MINI, a Mini Dual Gigabit Ethernet Base Module compatible with Raspberry Pi CM5, is a base board that supports dual network port power supply and Type-C 5V 5A DC power supply, and can be used with the Raspberry Pi Compute Module 5. It comes with 1 USB 3.2 Gen1 port for user convenience.

Wiki

Features and Important Notes

• SKU: 31074
• Do not plug in or unplug any devices other than the USB and network ports while the device is powered on.
• Type C is used as a USB SLAVE interface for flashing images and cannot be used as an OTG interface or to power external devices.
• The motherboard has 1 USB 3.2 Gen1 port by default.

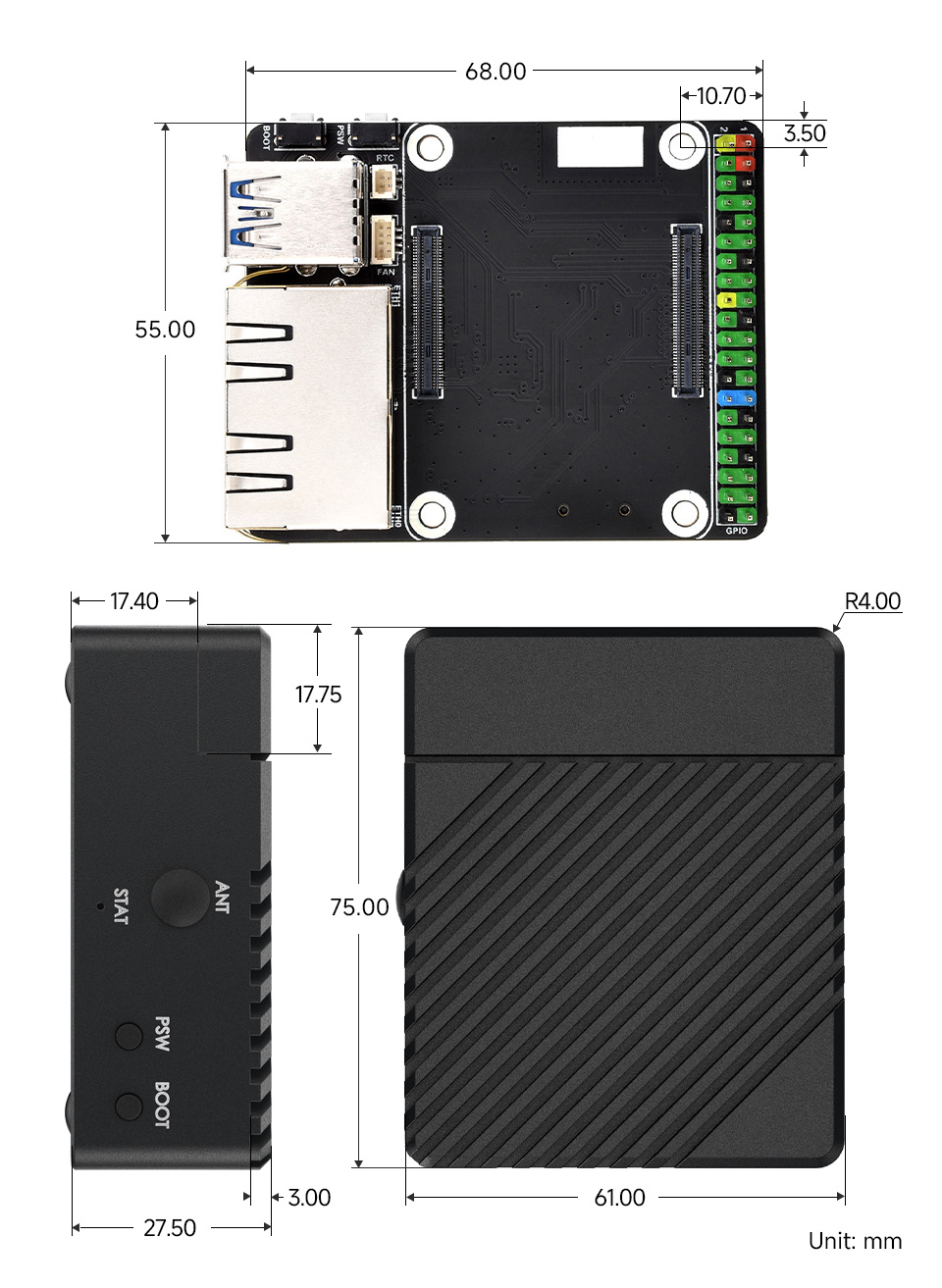

• On the motherboard By pressing the BOOT button, you can connect the device to the computer via Type-C before turning it on and put it into flashing mode. Do not connect any other devices while flashing via Type-C. Insufficient power supply for flashing will cause the device to be unrecognized. The maximum current output of the USB 3.0 port is 2A. The CM5 socket is compatible with all variants of the Compute Module 5. Network Connection: Dual Gigabit Ethernet RJ45 connectors USB: USB 3.0 port PIN header: Raspberry Pi 40PIN GPIO header Storage: TF card socket for Compute Module 5 Lite (without eMMC) variants Fan header: 4-wire SH1.0 port, provides speed adjustment and measurement, 5V Power input: 5V, Type-C interface Dimensions (base board): 55.0 × 68.0 mm Metal with case: 61.0 × 75.0 × 27.5 mm
