RP2040-ETH Mini Ethernet Development Board

RP2040-ETH Mini Ethernet Development Board

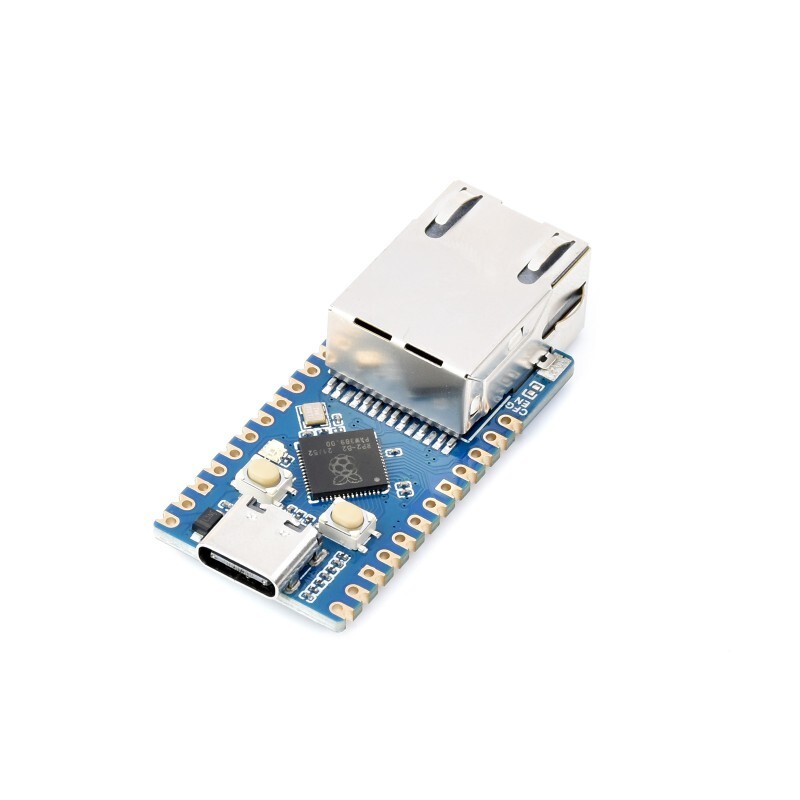

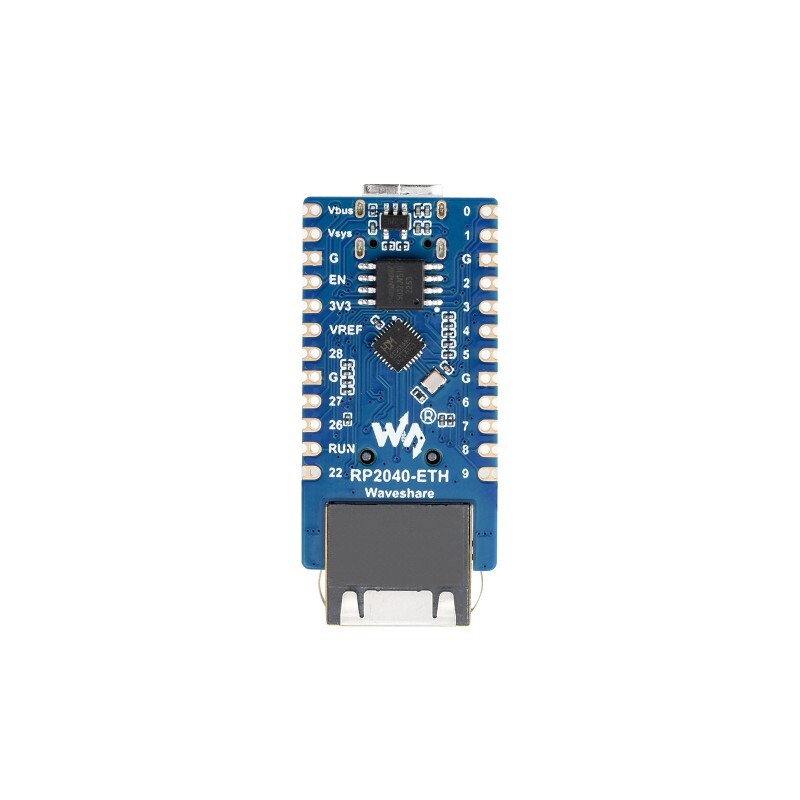

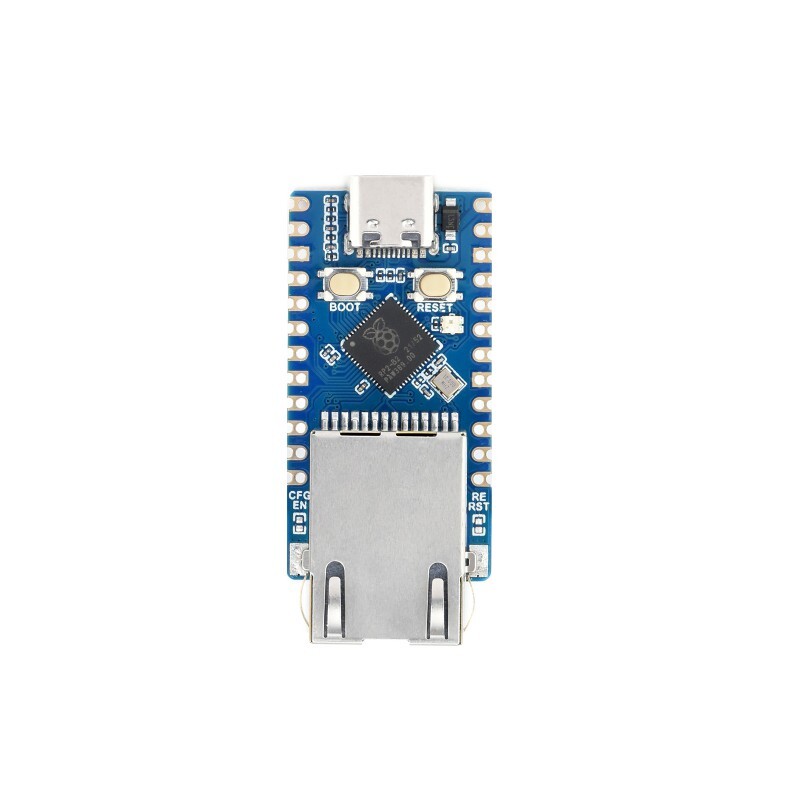

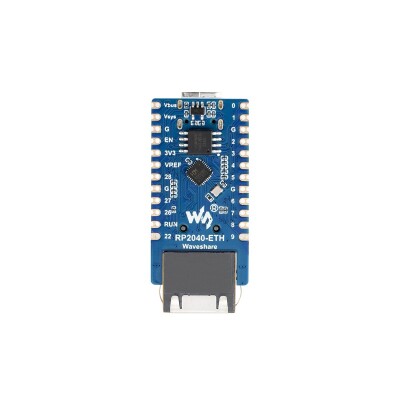

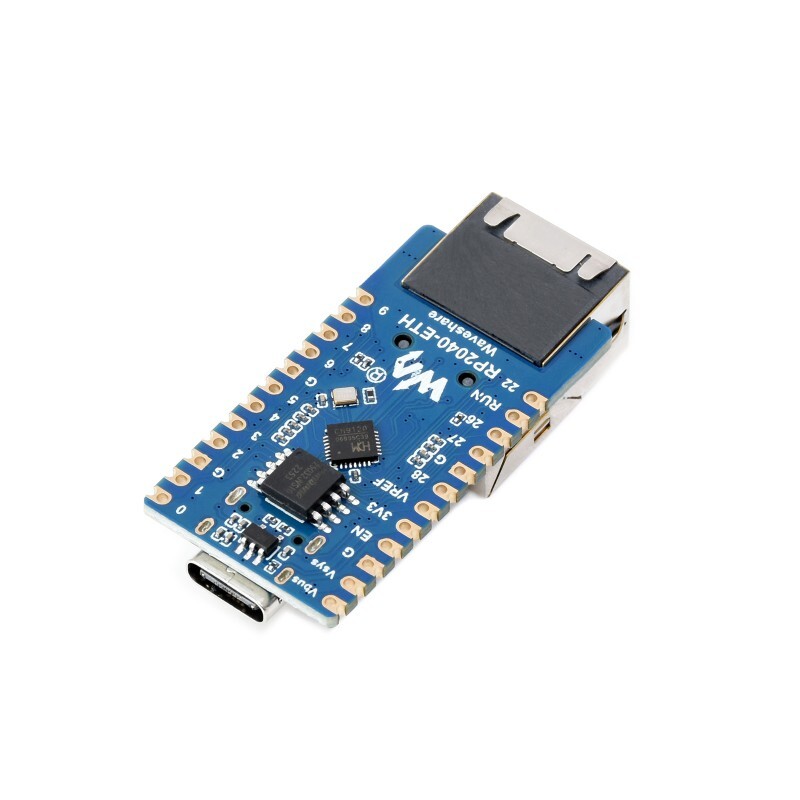

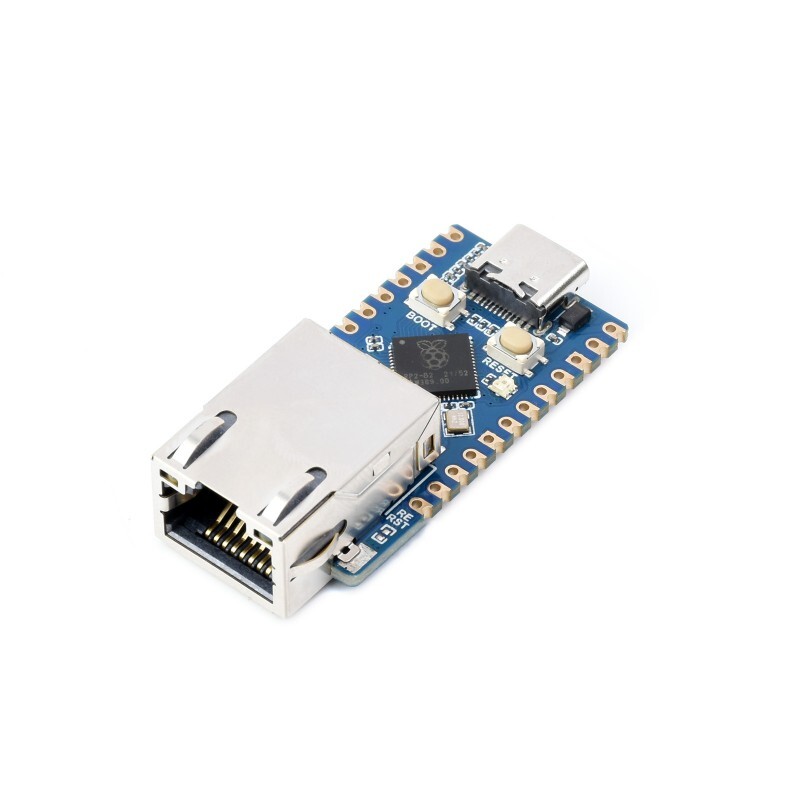

RP2040-ETH Mini Ethernet Development Board is a mini RP2040-ETH development board that integrates TCP/IP protocol stack for network communication. 14 × multi-function GPIO pins and goal holes on PCB edges allow for easy and quick integration into projects.

User Manual

Features

• SKU: 24082
• Dual-core Arm Cortex M0+ processor
• Internal 264KB SRAM and 4MB onboard Flash memory.
• Onboard CH9120 with integrated TCP/IP protocol stack.
• Network parameters such as chip operating mode, port and IP via host software and serial commands
• 14 × multi-function GPIO pins compatible with some Pico HATs.
• More hardware peripherals:
  • 1x SPI (SPI0)
  • 2x I2C
  • 2x UART
  • 13x Controllable PWM channels
• Onboard temperature sensor.
