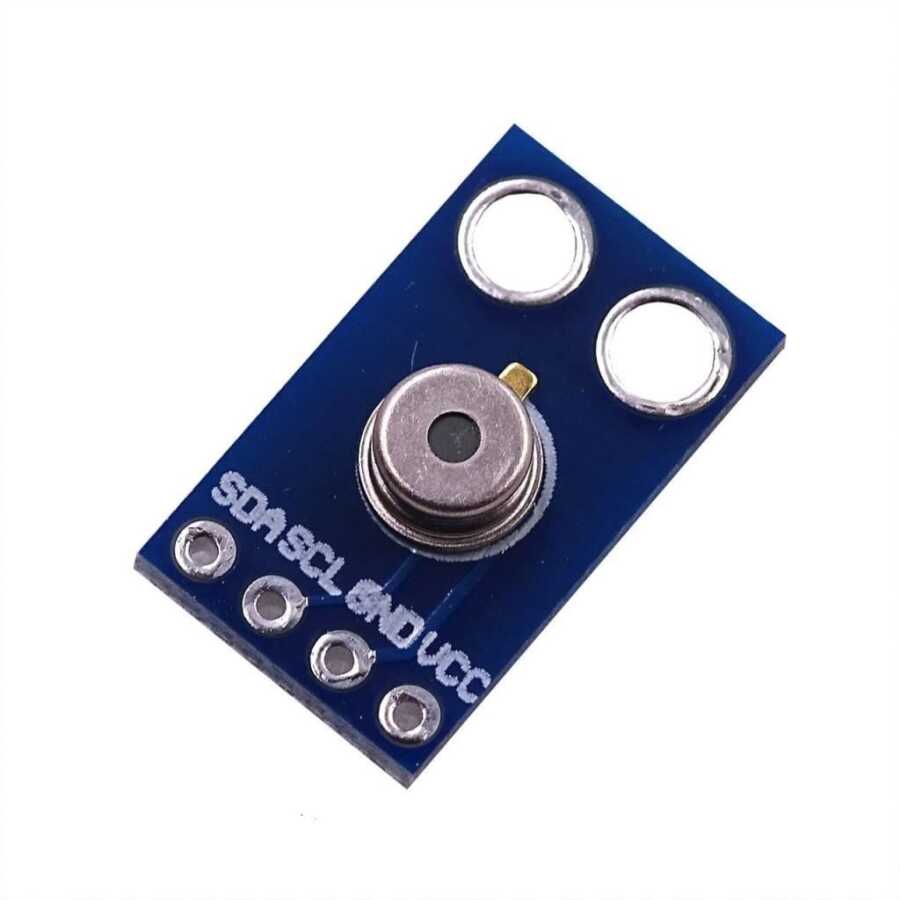

MLX90615 Digital Infrared IR Temperature Sensor
MLX90615 is an infrared thermometer for non-contact temperature measurements. Both the infrared sensitive thermocouple detector chip and the signal conditioning chip are integrated into the same TO-46 package. Thanks to its low-noise amplifier, 16-bit ADC and powerful DSP unit, the high accuracy and resolution of the thermometer is achieved. The thermometer is calibrated from the factory with the digital interface with SMBus enabled. Reading resolution 0.02 ° C
Specifications:
- Model MLX90615 CJMCU
- Temperature range: - 20 - 125 ° C
- Accuracy: 0.5 ° C
- Resolution: 0.02 ° C
- Output Type: I2C
- Voltage: 3.3 V
- Dimension 18 x 11 mm
Usage Areas:
- High precision non-contact temperature measurements;
- Hand Thermometers
- Ear Thermometers
- Temperature controlled home appliances;
- Healthcare;
- Cattle monitoring;
- Multi-zone temperature control - up to 100 sensors can be read over 2 common wires
