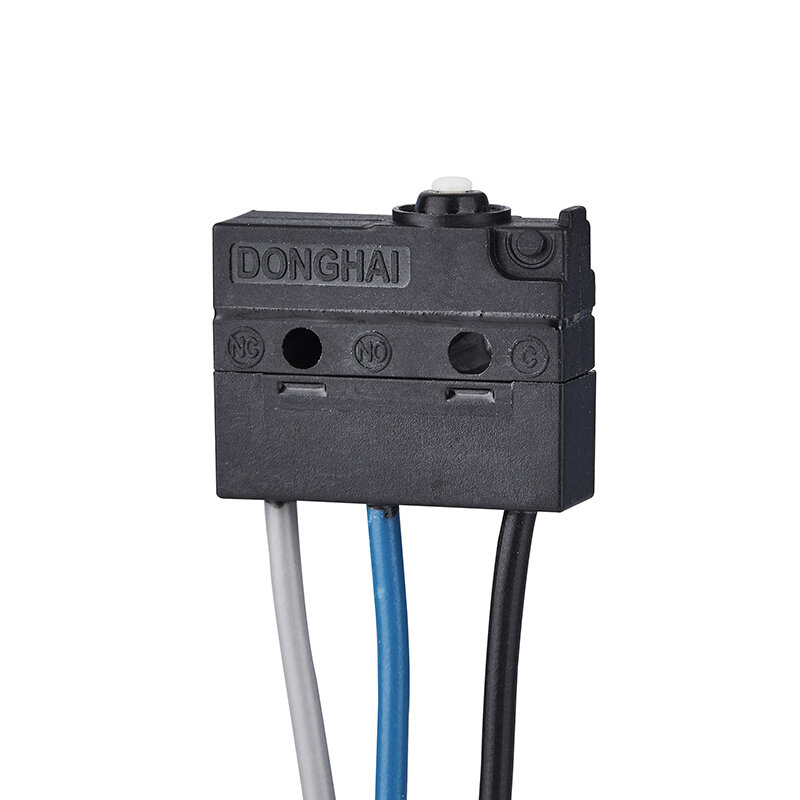

MT8-B00W300A06-AA300 SPDT NO+NC 3-Pin Waterproof Wired Micro Switch

MT8-B00W300A06-AA300 SPDT NO+NC 3-Pin Waterproof Wired Micro Switch

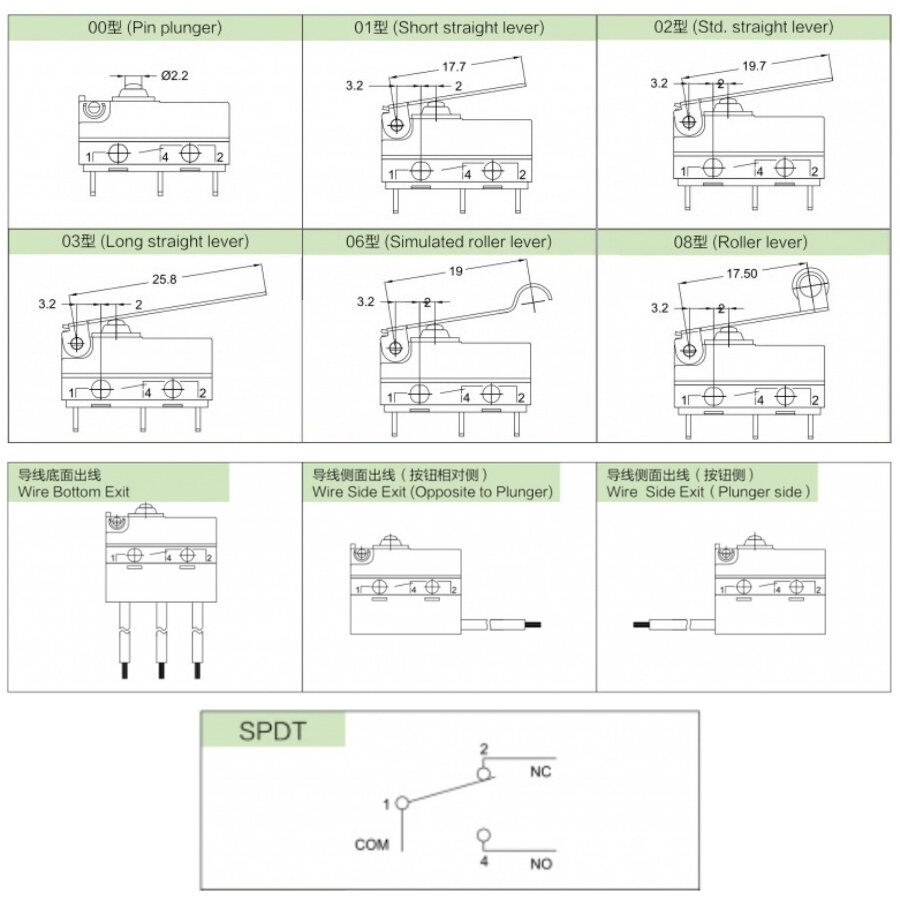

The MT8-B00W300A06-AA300 SPDT NO+NC 3-Pin Waterproof Wired Micro Switch is an IP67 protected micro switch designed for reliable operation even in harsh environmental conditions. Providing high resistance to water and dust, this switch can be used in many industrial and commercial areas such as automotive electronics, motor control, white goods applications, toys and door lock systems. Thanks to its compact structure, it offers easy mounting in confined spaces and provides a flexible solution with different lever/terminal options.

Features

• Nominal Current & Voltage: 3A 125/250VAC - 3A 36VDC 300gf max SPDT NO+NC IP Rating: IP67
