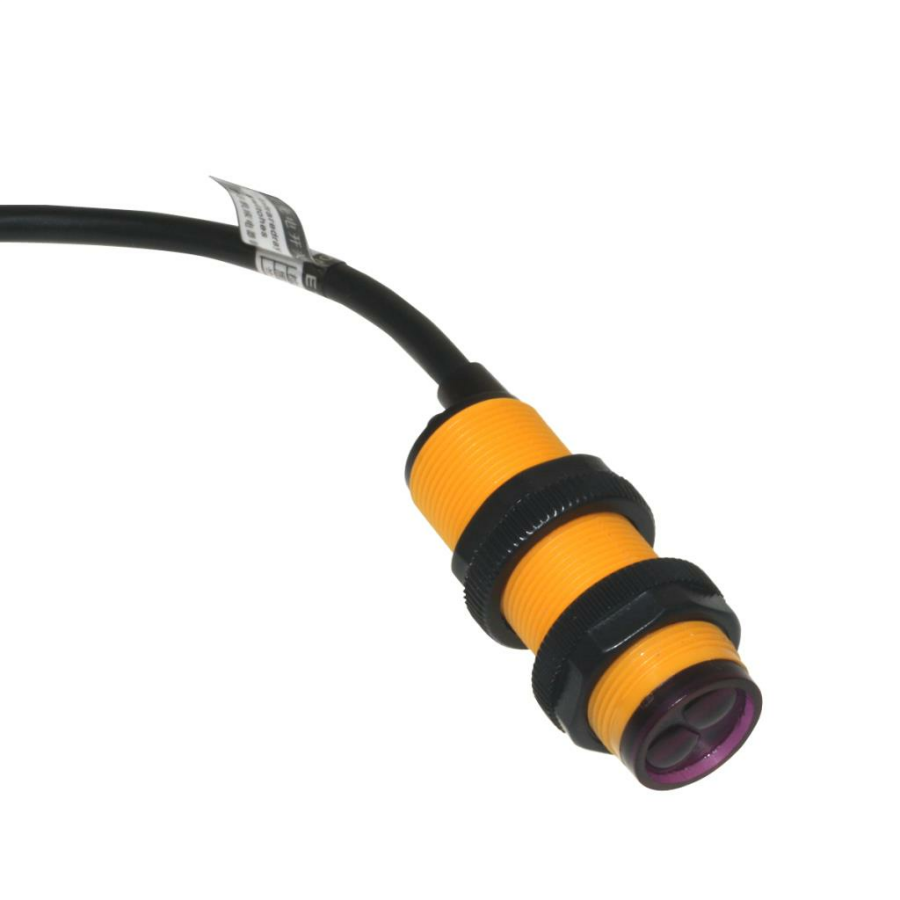

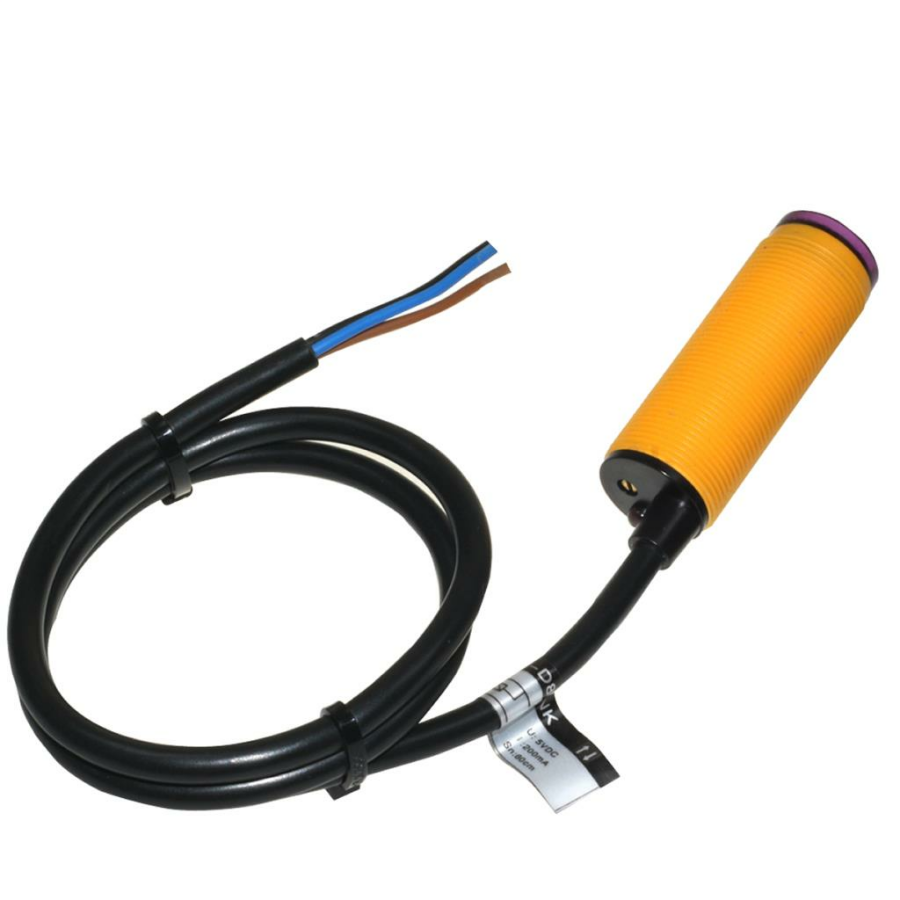

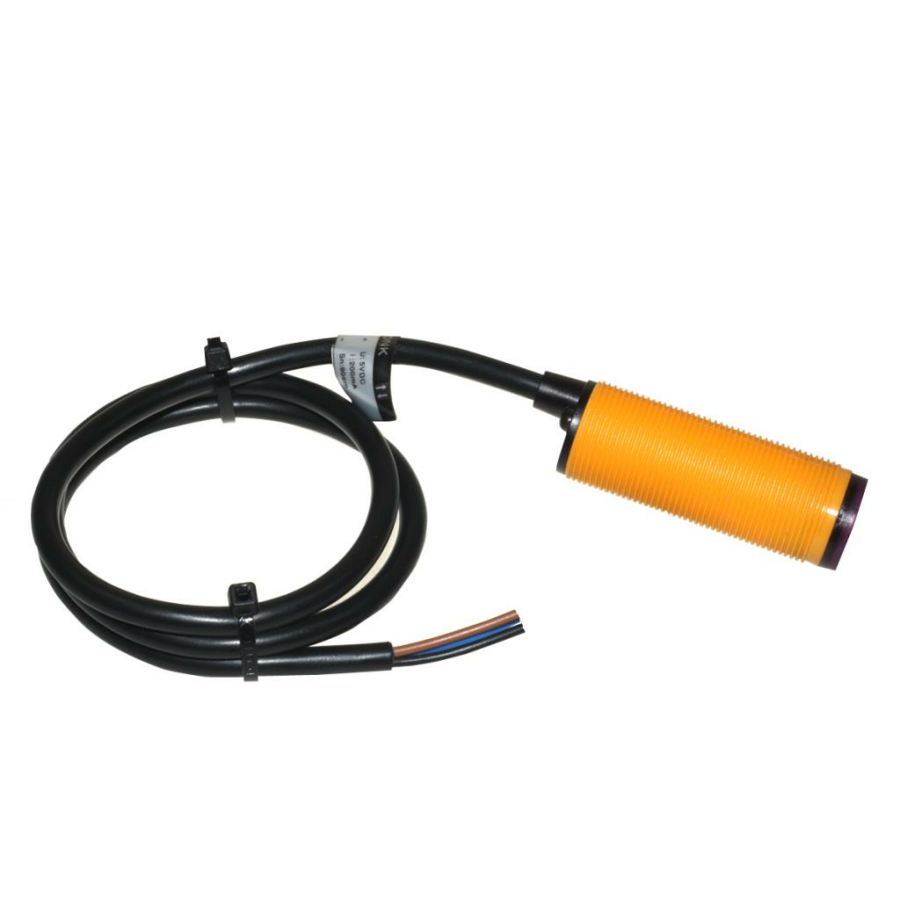

MZ80 Infrared Sensor E18-D80NK PNP

MZ80 Adjustable Infrared Sensor is a sensor that can measure up to 80cm. The measurement range can be adjusted from the potentiometer on it. It gives digital voltage output when an obstacle comes within the set distance range. It is easy to use. It can be easily assembled with the salmon on it. When it detects an object, the light behind it turns off.

The product works completely compatible with Arduino. You can use it with the sample codes below.

This product is the PNP model. When an object is detected, a positive output comes from the DATA output. It can be used with the help of a resistor and transistor in applications that need to be used as NPN. Please take this information into consideration before purchasing.

Specifications

Supply voltage: 5v

Current Consumption: > 25mA (min) ~ 100mA (max)

Dimensions: 1.7cm (diameter) x 4.5cm (length)

Cable length: 45cm

Object detection: transparent or matte

Measurement range: 3cm - 80cm (may vary depending on the surface of the obstacle)

PNP output

Operating temperature range: -25 °C ~ 55 °C

Application Areas

Automation systems

Obstacle detection

Object counting

Security systems

Maze robot

Sumo robot

Usage

Brown: +5V

Blue: GND

Black: Data

MZ80 Arduino Sample Code
