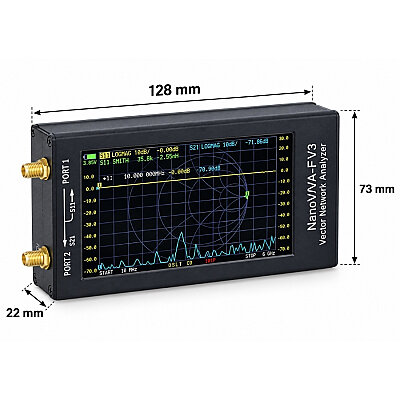

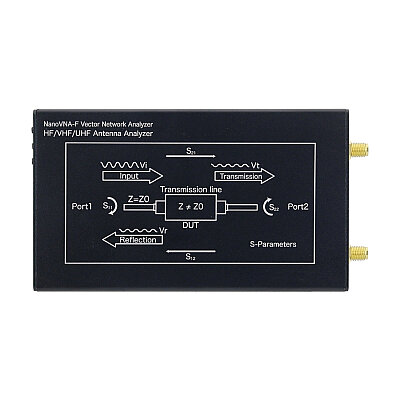

NanoVNA-F V3 1MHz-6GHz Vector Network Analyzer
NanoVNA-F V3 1MHz-6GHz Vector Network Analyzer

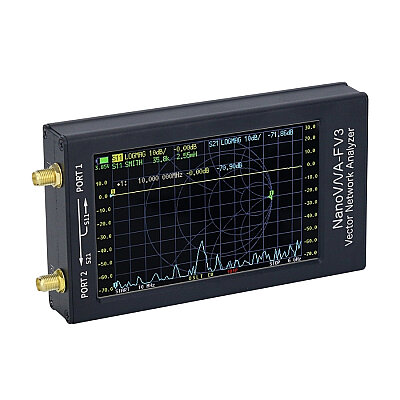

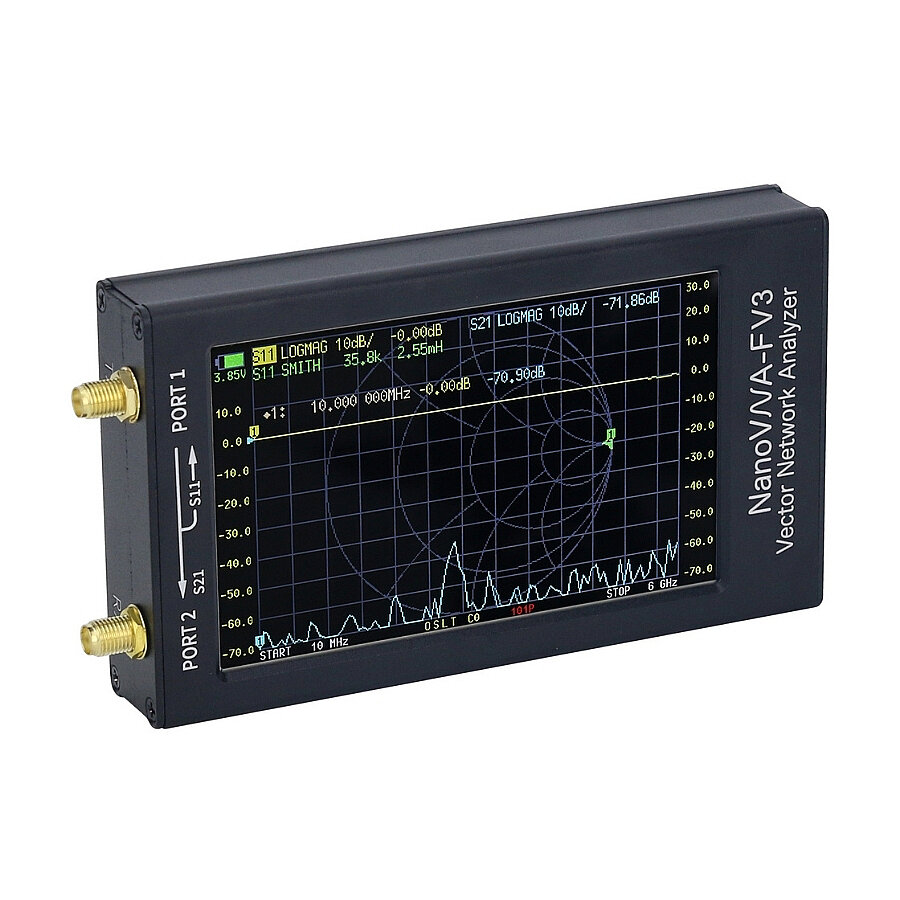

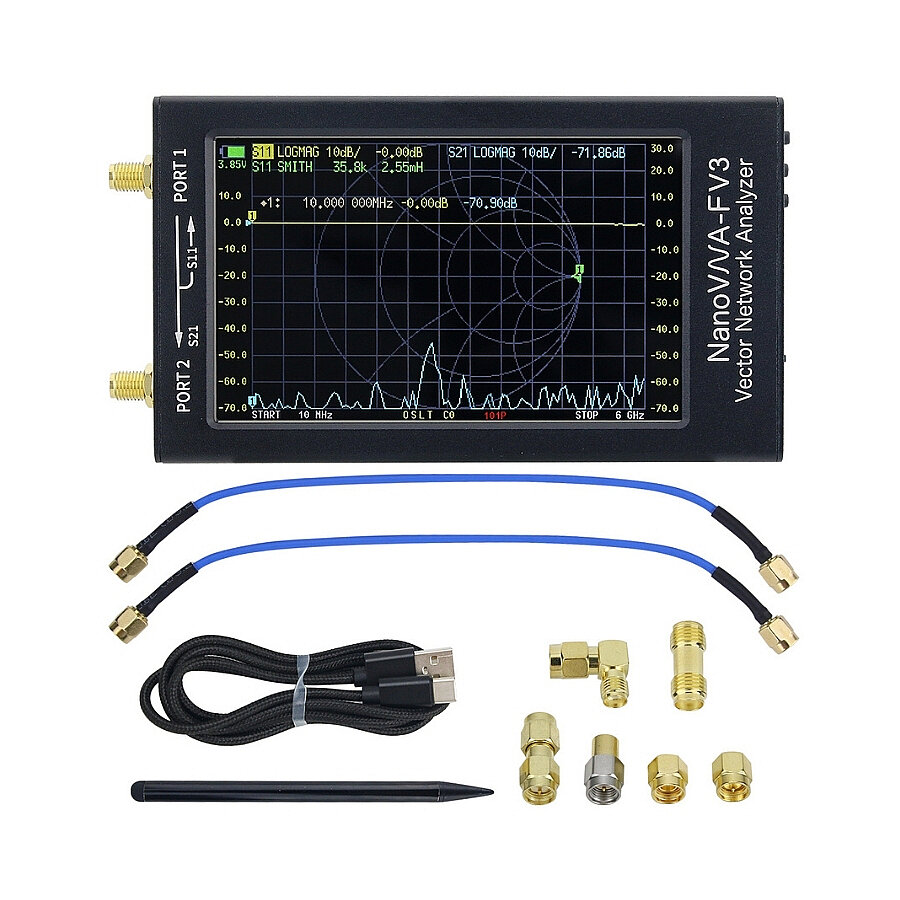

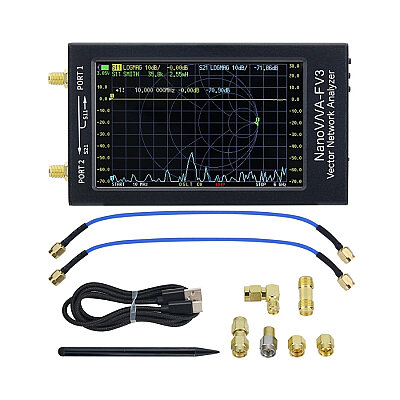

The NanoVNA-F V3 1MHz-6GHz Vector Network Analyzer is a portable vector network analyzer (VNA) with a frequency range of 1MHz–6GHz, designed for measuring RF circuits, antennas, filters, cables, and impedance matching applications.

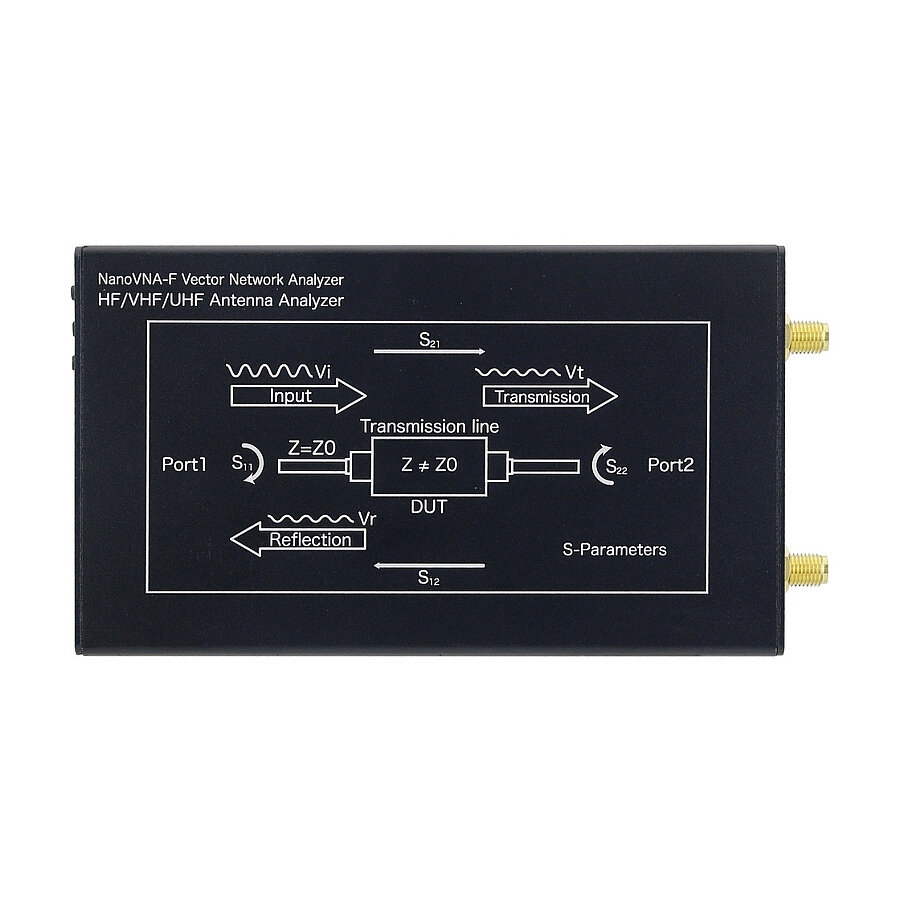

The device can perform both S11 reflection measurements and S21 transmission measurements. This allows for the analysis of antenna impedance and return loss, as well as the transmission characteristics of filters, cables, and RF circuits. The NanoVNA-F V3 offers a wide operating range capable of covering many RF applications across Shortwave, VHF, UHF, ISM, Wi-Fi, Bluetooth, and GPS frequency bands.

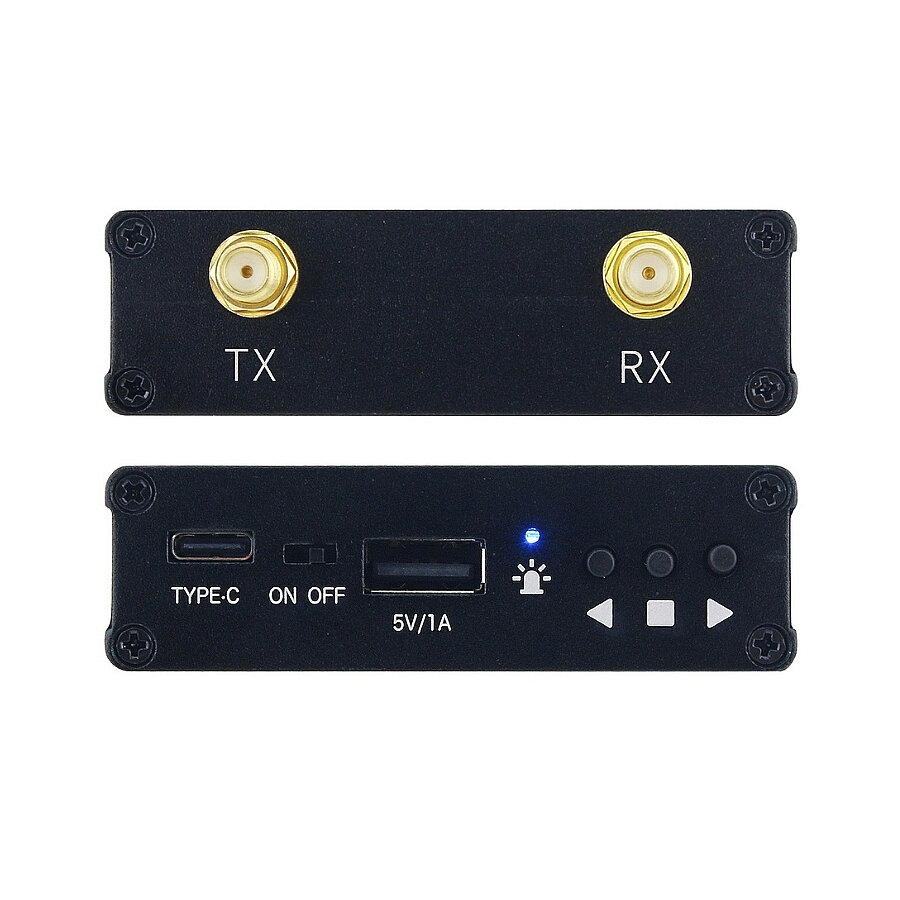

Its built-in 3.7V 4500mAh lithium battery provides up to approximately 5 hours of portable operation, according to the manufacturer. Charging and PC connectivity are handled via USB Type-C. Additionally, the device features a 5V/1A USB-A power output for powering external devices.
Specifications
- Frequency Range: 1MHz–6GHz
- Battery: 3.7V 4500mAh Li-ion
- Operating Time: Up to approximately 5 hours
- Measurement Parameters: S11 / S21
- RF Output Power: Max. approx. -10dBm
- Frequency Accuracy: < ±1ppm
- S21 Dynamic Range: 65dB, below 3GHz
- S21 Dynamic Range: 60dB, above 3GHz
- S11 Dynamic Range: 50dB, below 3GHz
- S11 Dynamic Range: 40dB, above 3GHz
- Sweep Points: 11–801 adjustable
- Maximum Sweep Points: 801
- RF Connectors: SMA

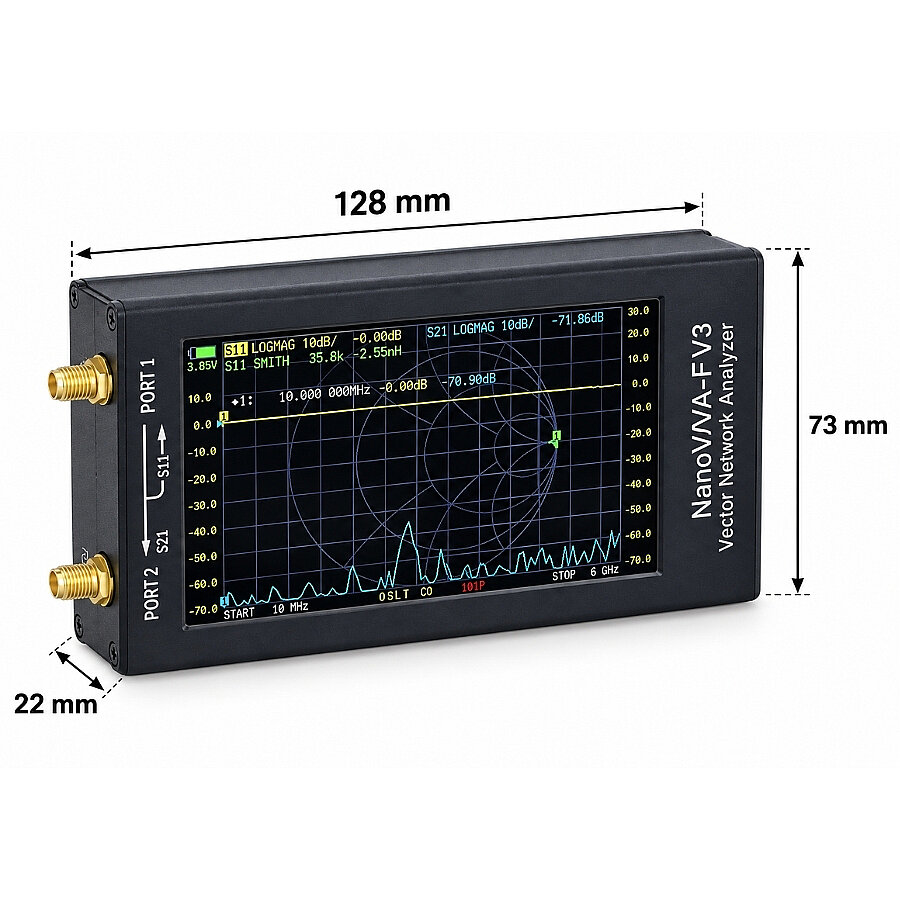

- Display: 4.3" IPS LCD
- Display Resolution: 800×480
- Touch Panel: Resistive
- Charging / Data Port: USB Type-C
- Charging Voltage: 4.7–5.5V DC
- USB Power Output: USB-A 5V / 1A
- Housing Material: Aluminum alloy
- Operating Temperature: 0°C ~ +45°C
