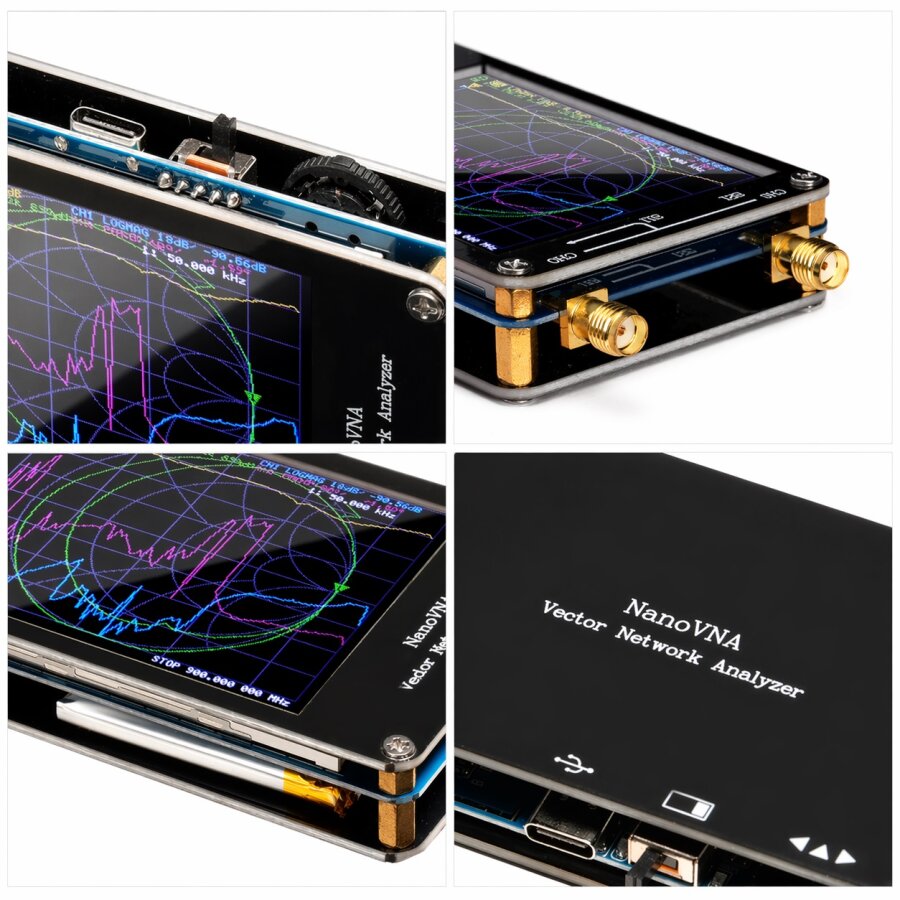

NanoVNA-H 50KHz-900MHz Vector Network Spectrum Analyzer ;, is a handheld Vector Network Analyzer (VNA) with a small frame. It is a low-cost but high-performance vector network analyzer (VNA) with LCD display. 2.8 inchesç It has a touch screen and a 650mAh battery. It displays the data in a graph representing the spectrum amplitude on the y-axis and the frequency on the x-axis.

For detailed information, you can review the product manual.

Product Guide

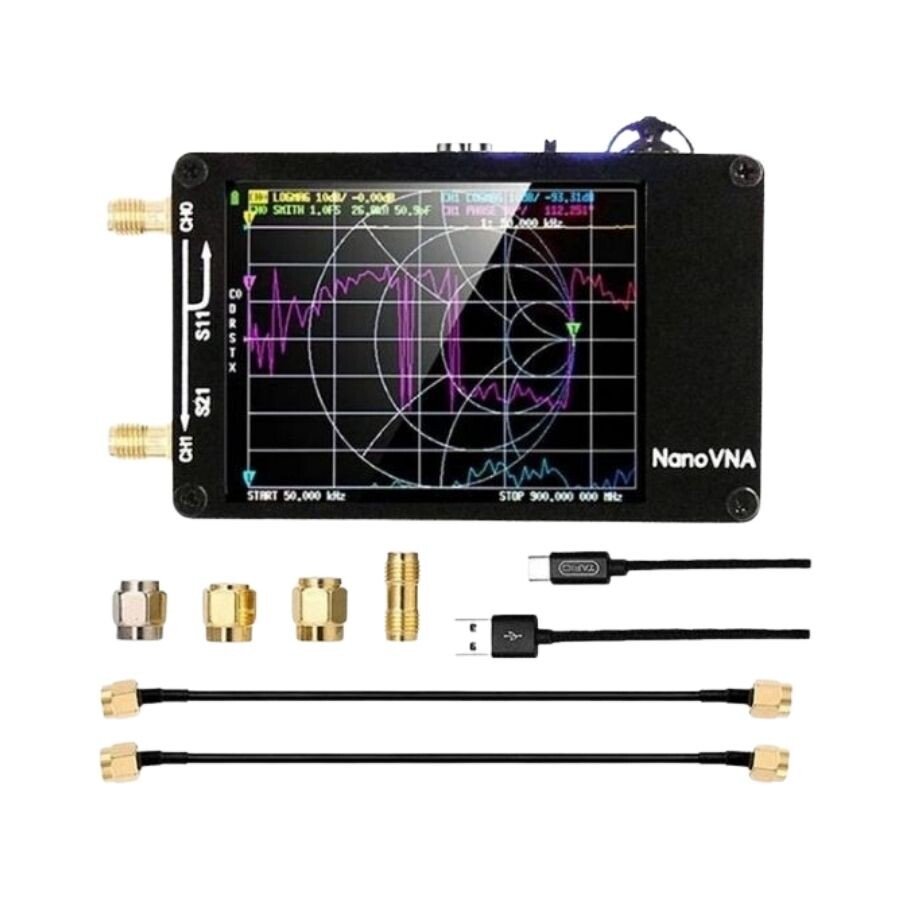

Box Content

• 1 Spectrum Analyzer
• 2 pieces 20cm SMA male-male RG174 RF cable
• 1 piece 25cm Type-C / Type-C cable
• 1 piece 90cm USB - Type-C charging cable
• 4 pieces SMA connection connectors

Features

• Operating Frequency: 50KHz - 900MHz
• RF Output Value: - 13dbm (Max -9dbm)
• Number of Channels: 1
• Screen size: 2.8"
• Ç Size: 320x240
• Screen Type: TFT
• Dimension: 54x85.5x11mm
