NanoVNA RF Tester Card Filter Attenuator - RF Demo Kit

RF Test Card: Vector network analyzer, antenna calibration RF demo kit for learning test calibration learning. RF Breadboard is useful for beginners who want to discover the secrets of vector/spectrum analyzer.

Short Wave Low Pass Filter LPF: 30 MHz; FM high pass filter HPF: 100 MHz; Commonly used SAW bandpass filter: 433 MHz; BSF video ceramic trap: 6.5 MHz

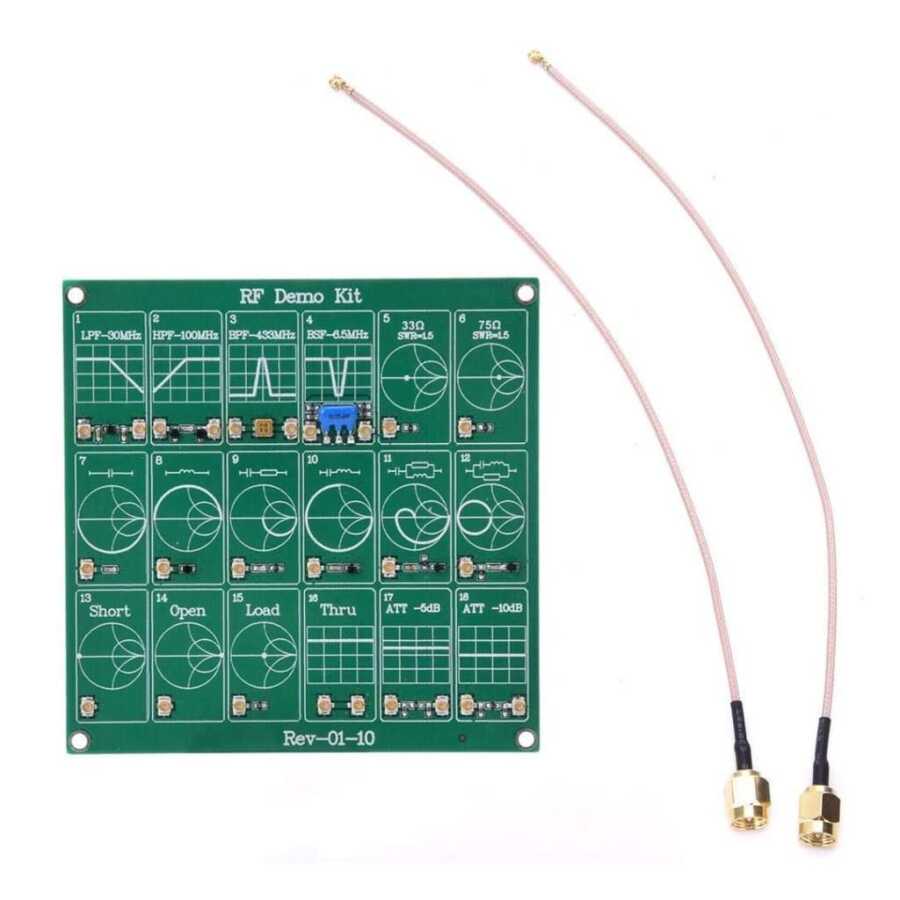

18 functional modules and 2 UFL connection cables: the board is fully integrated with 18 functional modules. Equipped with 2 UFL connection cables for convenient use. Each module is well selected with high quality and strong reliability. The card is small and light, suitable for carrying.

Technical Specifications

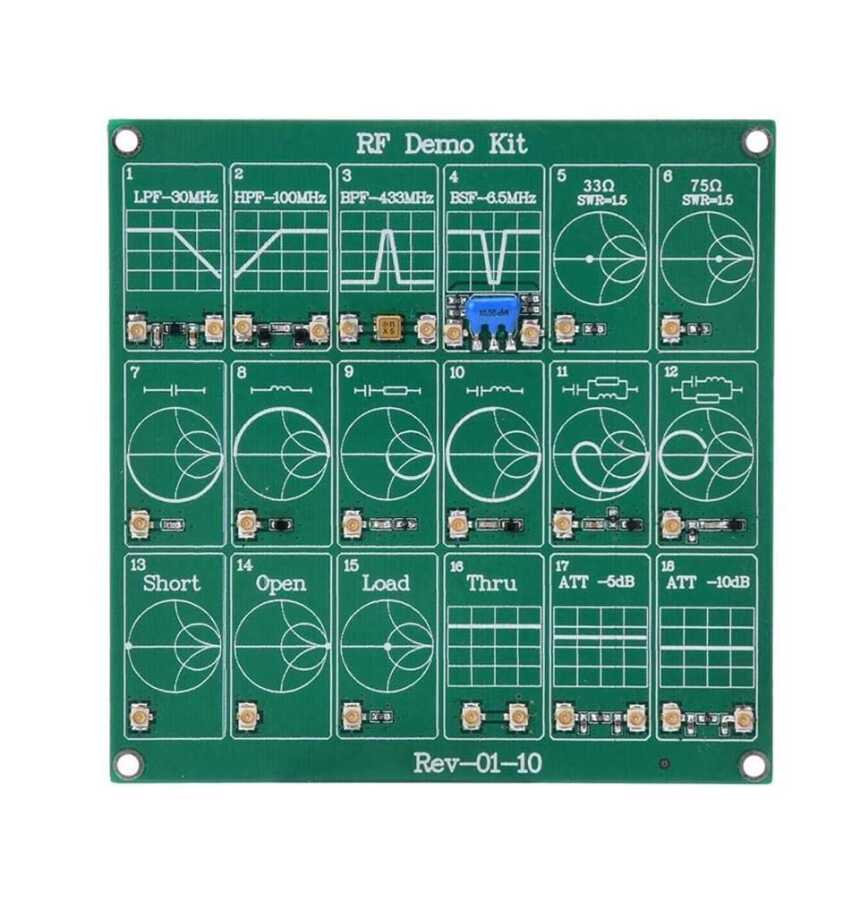

Vector network analyzer learner tool

RLC series and parallel circuit 1

RLC series and parallel circuit 2

33 ohm resistor, SWR=1.5

75 ohm resistor, SWR=1.5

BSF ceramic notch filter, center frequency 6.5MHz

BPF ceramic filter, center frequency 10.7MHz

RC series circuit

LC series circuit

capacitor

Inductance

Homemade low pass filter, 3dB bandwidth 400MHz

Homemade high pass filter, 3dB bandwidth 500MHz

Short circuit calibration circuit

Open circuit calibration circuit

50 ohm load calibration circuit

10dB attenuation circuit

3dB attenuation circuit

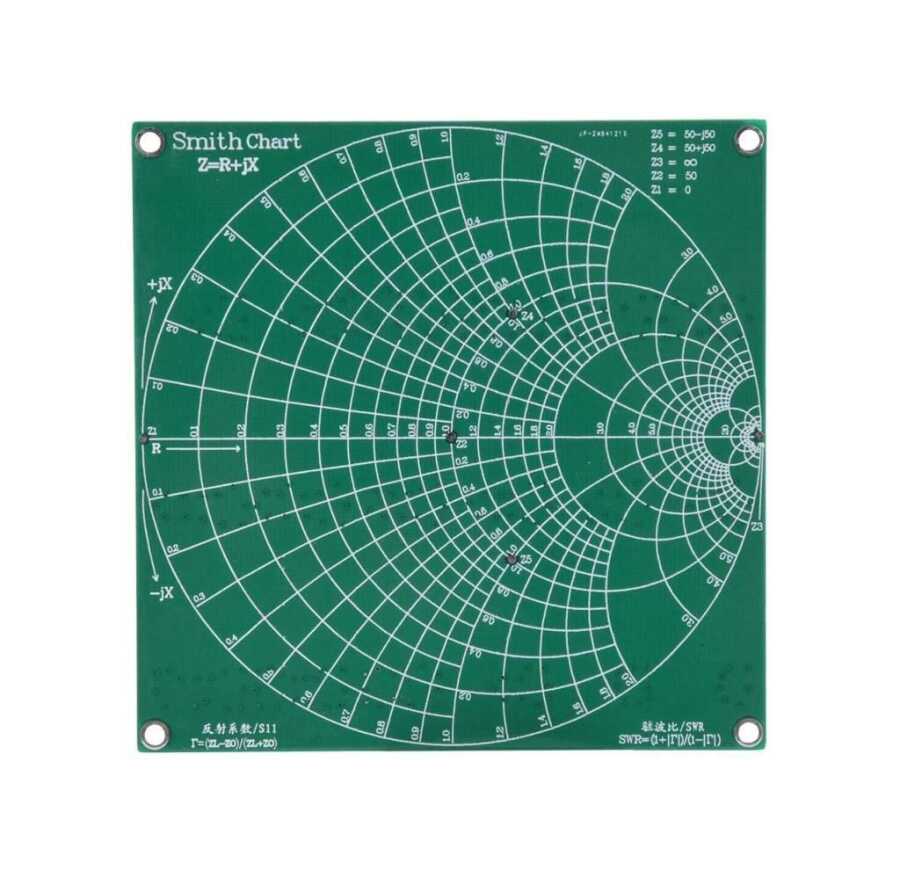

10x10cm printed circuit board

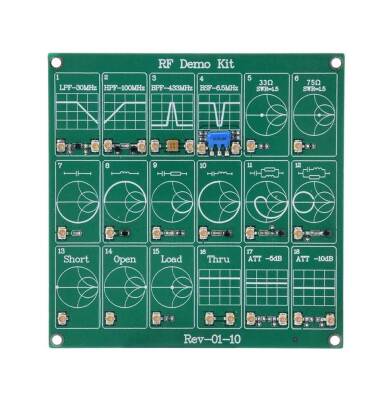

NanoVNA RF Tester Board Filter Attenuator - RF Demo Kit
