OV9281 1MP Mono USB Camera (A)

OV9281 1MP Mono USB Camera (A)

The OV9281 1MP Mono USB Camera (A) supports 120 FPS high frame rate recording. It features a global shutter for clearer images. The global shutter eliminates camera shake when shooting fast-moving objects. More suitable for shooting at high frame rates.

User Manual

Features

• SKU: 31671
• Pixels: 1 MP (black and white)
• Resolution: 1280 × 720
• Sensor chip: OV9281
• DSP: Auto gain/exposure/white balance
• Shutter type: Spherical shutter
• Camera:

  • CCD size: 1/4 inch
  • Aperture (F): 2.2
  • Focal length (EFL): 1.65 mm
  • Field of view (FOV): 120°
  • Dynamic range: 52 dB
• Interface type: USB 2.0 Type-C
• Supported image formats: MJPEG
• Operating temperature: 0°C ~ 50°C
• Diagonal dimensions: 25 mm × 25 mm
• Supported systems: Windows, Linux

Package Content

• OV9281 1MP USB Camera (A) x1
• SH1.0 4PIN double plug cable x1

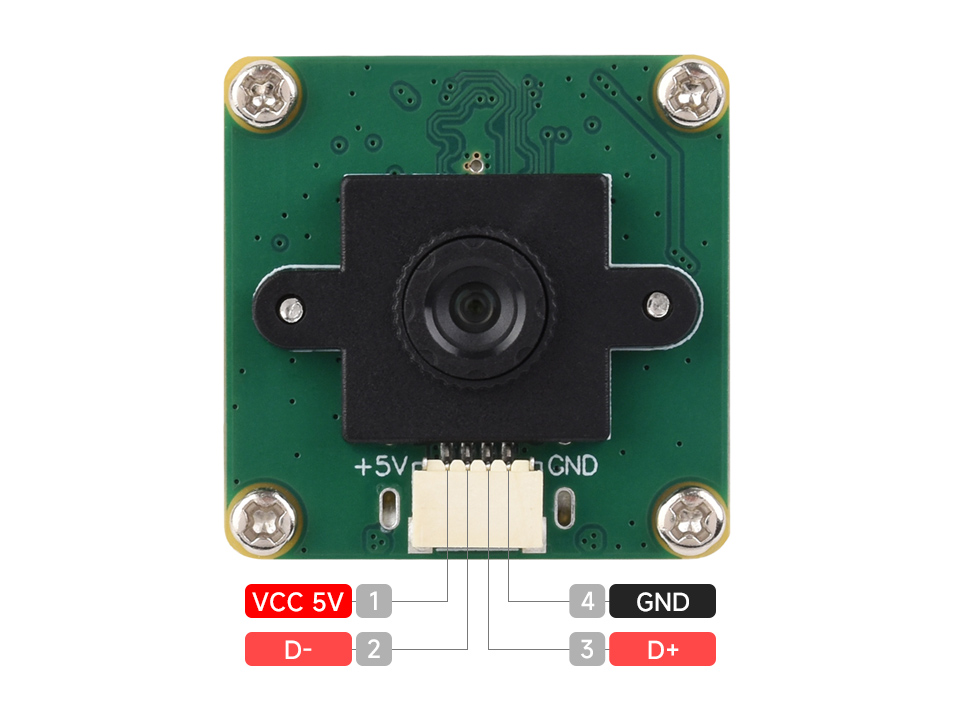

Pinout

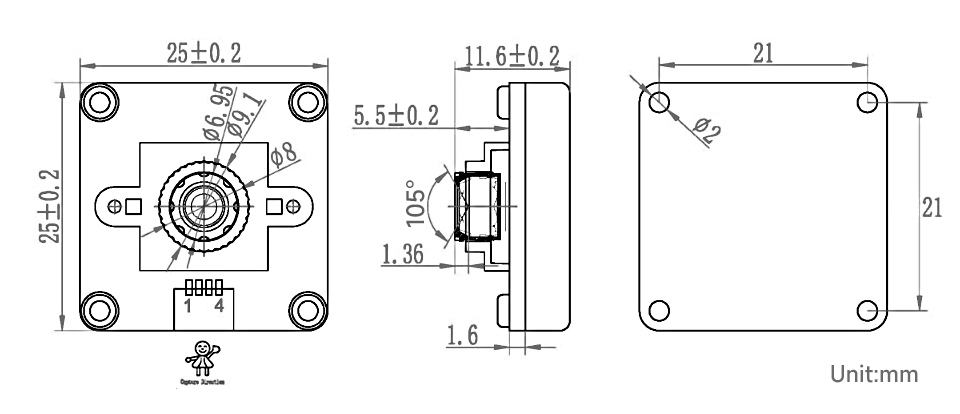

Size
