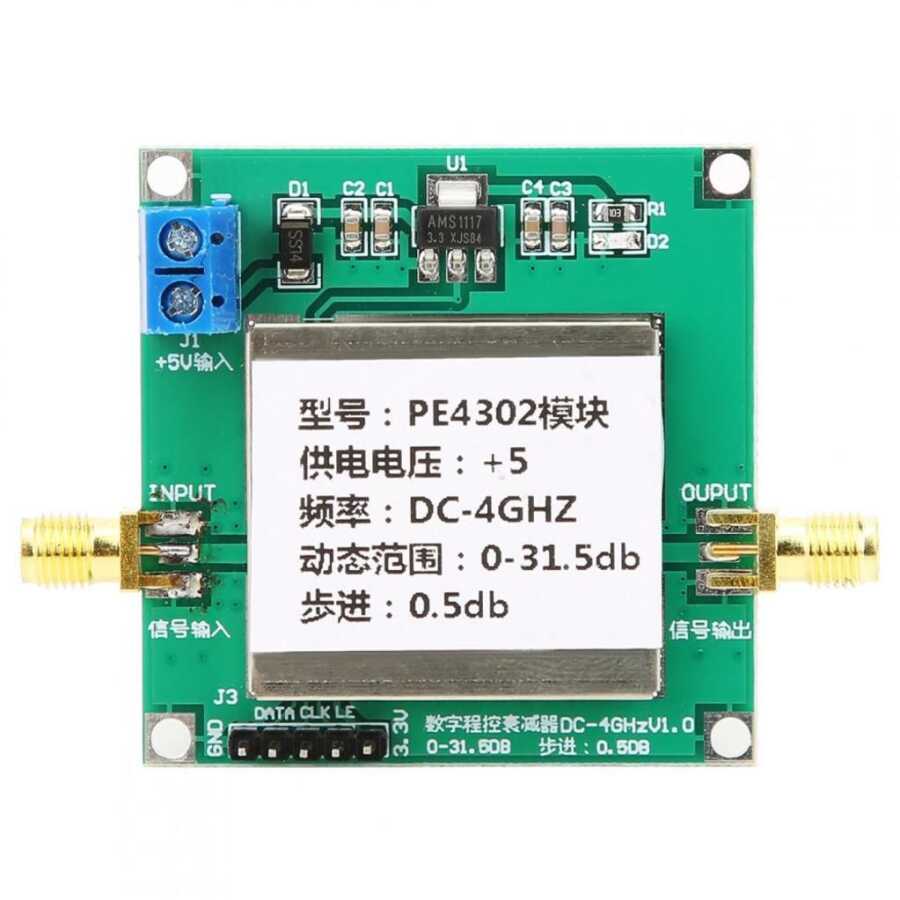

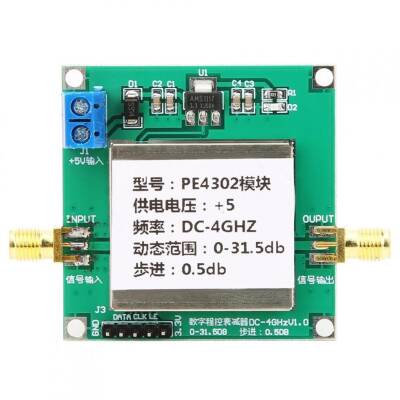

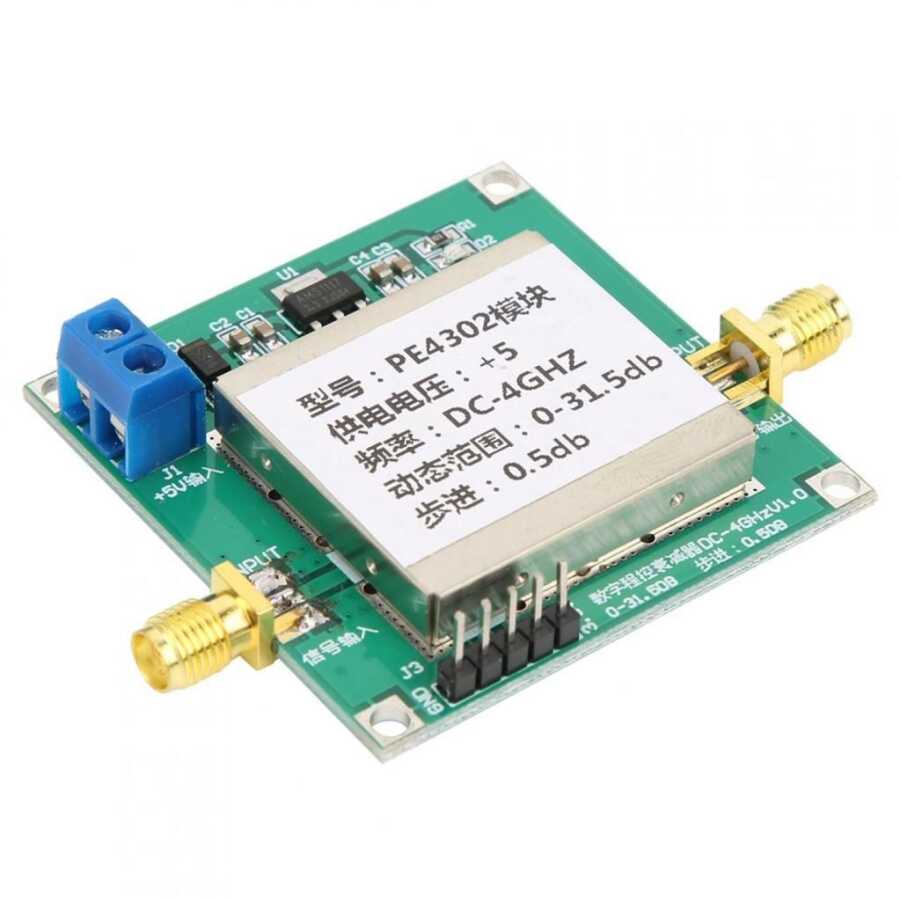

PE4302 Digital Programmable Stepped Attenuator Module DC 4GHZ 0-31.5DB

PE4302, 0, It is a highly linear, 6-bit RF Digital Step Attenuator (DSA) covering an attenuation range of 31.5 dB in 5 dB steps.

This 50 ohm RF DSA provides both parallel and serial CMOS control interface, operates on a single 3-volt source and provides high attenuation accuracy across frequency and temperature. It also has a unique control interface that allows the user to select an initial attenuation state at startup.

Technical Specifications

Supply voltage: 5V DC (typical current value 5mA)

Programmable gain attenuation range: 0 - 31.5DB Step 0.5DB

Input and output impedance: 50 ohm

The module supports parallel port and serial port mode and boot state selection function

Bandwidth: 1MHz to 4GHz

Metal shell shielded

Different mode configuration

1. Serial mode configuration: disconnect J5 J7 J6, J4 short circuit

Three-wire serial mode, pins: GND DATA CLK LE 3.3V

2. Parallel port C0.5-C16 control mode configuration: J4 J7 disconnect, J5 J6 short circuit

3. Parallel port PUP control mode configuration: J4 J5 disconnect, J7 J6 short circuit
