Photocell-Based Timing Module

Photocell-Based Timing Module

The Photocell-Based Timing Module is a light-sensitive motor control unit designed to automatically operate a connected 6V DC motor twice a day by detecting ambient light levels.

Unlike conventional clock-based timers, this unit does not operate according to a fixed time schedule; instead, it functions by detecting changes in ambient light via a photocell. When it senses the first light of the day, it activates the motor for a pre-set duration. When it detects that the light has faded—signaling that it has become dark—it activates the motor a second time for the same pre-set duration.

Specifications

• Operating Voltage: 6V DC
• Current Consumption at 6V: Approximately 0.12A
• Control Method: Ambient light / photocell
• Daily Automatic Operation Cycles: 2 times
• 1st Trigger: Upon detection of the first light of the day
• 2nd Trigger: When light fades / it becomes dark
• Motor Run Time: Adjustable
• Run Time Range: 1–20 seconds

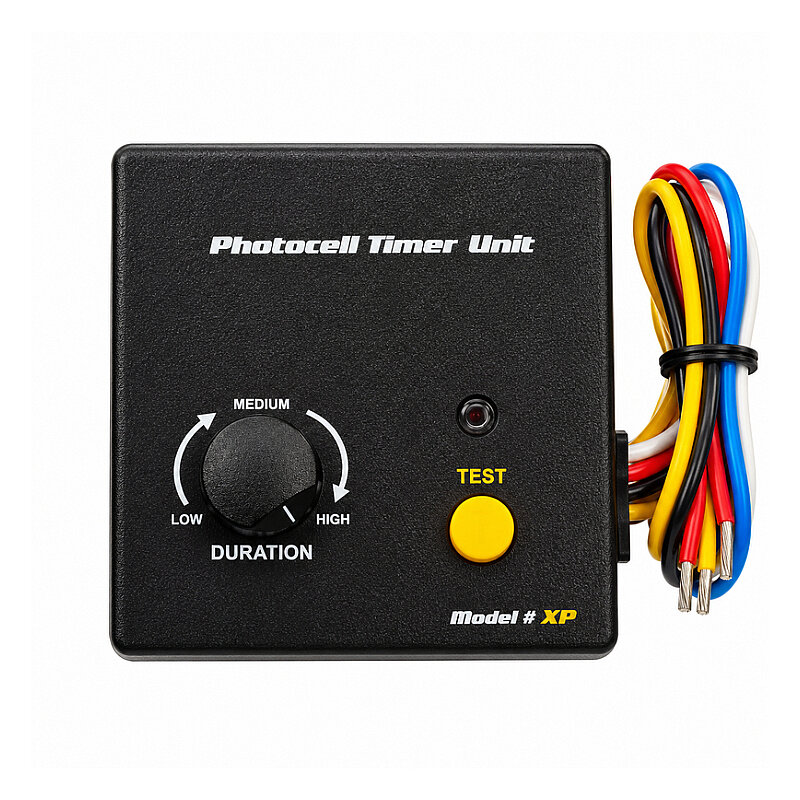

• Time Adjustment: Via a control knob on the front panel
• Motor Control: For 6V DC motors
