RS-GZ-N01-2-20W 0–200,000 Lux Light Intensity Sensor - RS485

RS-GZ-N01-2-20W 0–200,000 Lux Light Intensity Sensor - RS485

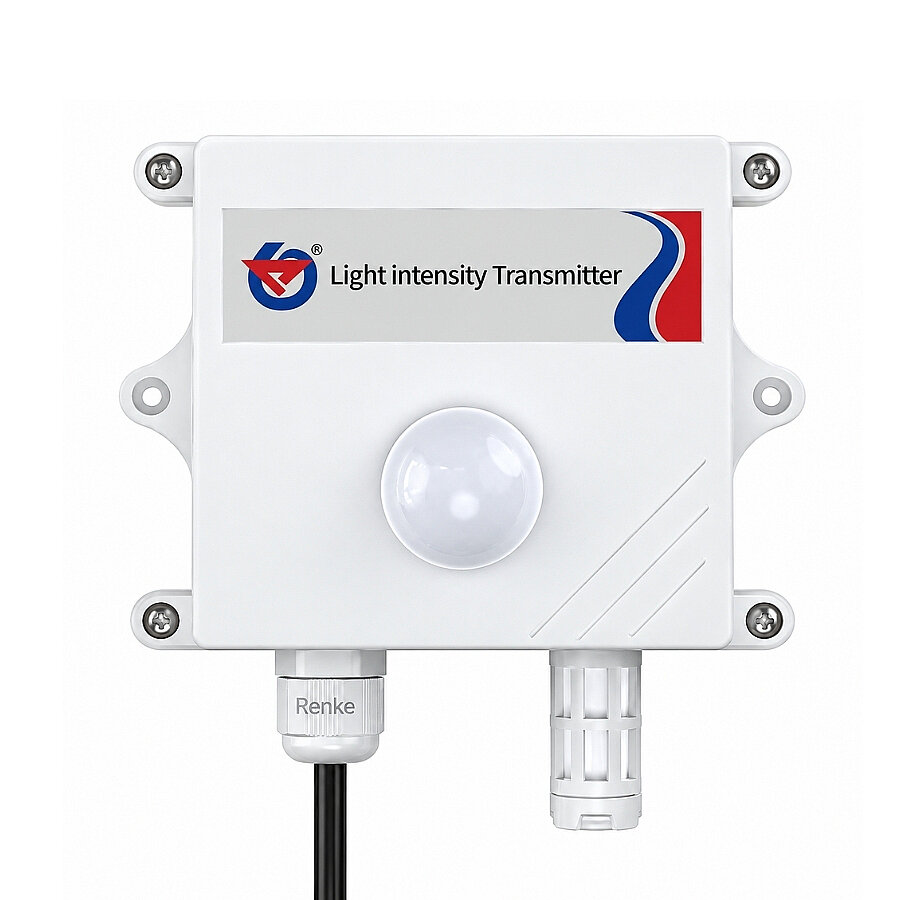

The RS-GZ-N01-2-20W 0–200,000 Lux Light Intensity Sensor (RS485) is a high-precision, industrial-grade illuminance and light intensity sensor designed to measure ambient light levels in Lux. The light level measured by the sensor can be transmitted to control systems via the RS485 communication interface using the Modbus RTU protocol.

Thanks to its RS485 communication infrastructure, the sensor can be integrated with PLCs, industrial control boards, data acquisition systems, automation systems, and microcontroller projects that support RS485. The use of the Modbus RTU protocol enables the connection of multiple devices to the same RS485 line and allows for reliable data transmission over long distances.

Specifications

• Supply voltage: 10–30 VDC
• Maximum power consumption: Approx. 0.4 W
• Output type: Digital
• Communication interface: RS485
• Communication protocol: Modbus RTU
• Measurement unit: Lux (lx)
• Measurement range: 0–200,000 Lux
• Light measurement accuracy: ±7% @ 25°C
• Light measurement response time: ≤2 seconds
• Operating temperature: -40°C to +60°C
• Operating humidity range: 0–95% RH, non-condensing
• Protection class: IP65
