PLUTO+ 70MHz-6GHz SDR Transceiver Radio Set

PLUTO+ 70MHz-6GHz SDR Transceiver Radio Set

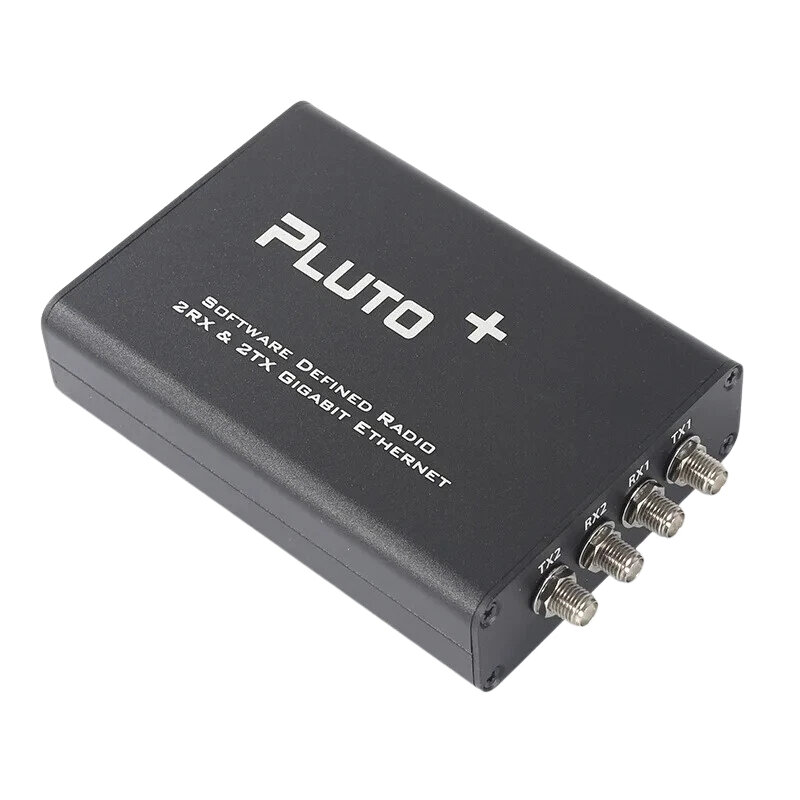

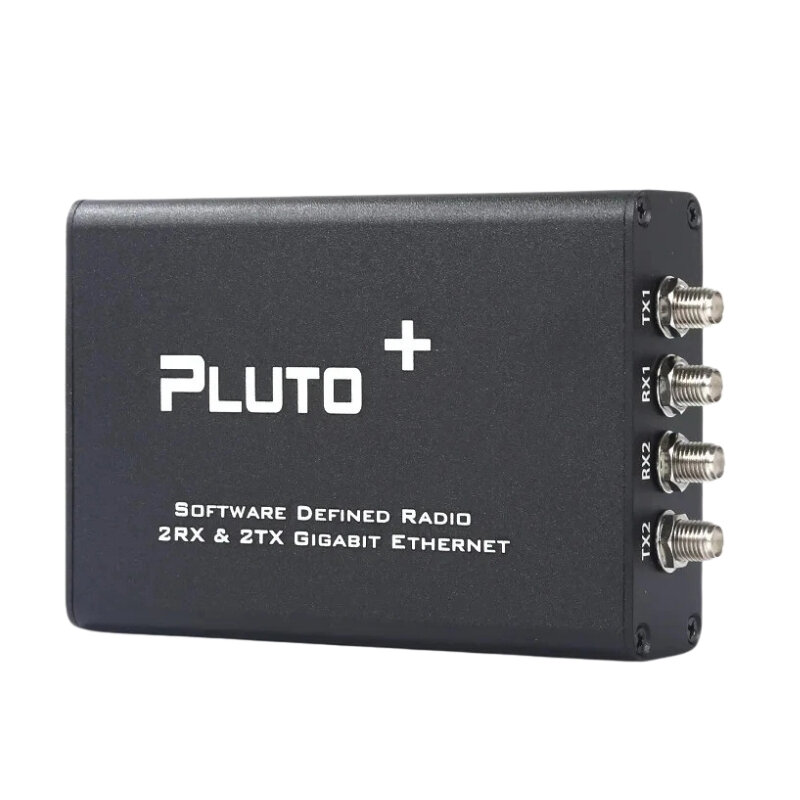

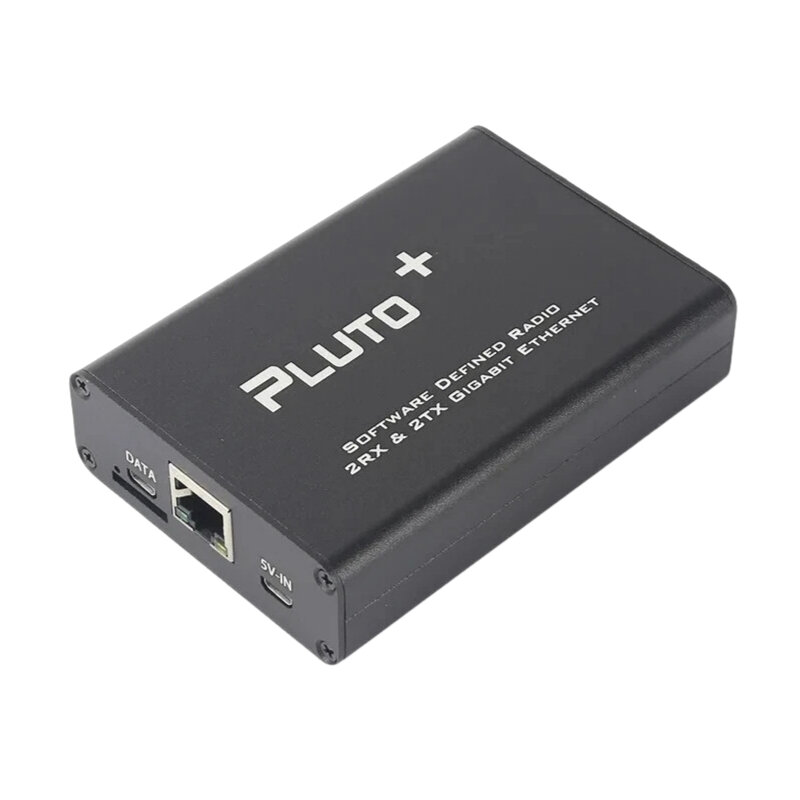

PLUTO+ 70MHz-6GHz SDR Transceiver Radio Set is a software-defined radio platform supporting 2TX and 2RX, Gigabit Ethernet and Micro SD card. Based on the design of ADALM-PLUTO and addresses its shortcomings.

Firmware

Features

• ADC/DAC: AD9363 (convertible to AD9361 or AD9364)
• 2 Transmit, 2 Receive channels
• RF Range: 70MHz~6GHz
• Reference Clock: VCTCXO 40MHz 0.5ppm
• SOC: FPGA for Zynq7010: 28k
• RAM: 512M
• FLASH: 32M
• USB: 2.0, OTG support
• Ethernet: 1000Mb
• Micro SD available for booting
• DC Input: 5V±0.5V-2A microUSB

Interfaces

Please note that all IO levels are 1.8V.

• When using official firmware for ADI-PlutoSDR, please connect to URST-MI052.
• When using Pluto+ firmware and needing Ethernet support, please connect to URST-MIO46.
• When booting with an SD card, please connect SD-H to 1V8.
Connect.
• When debugging with JTAG, please connect JTAG# to GND.
• When using external reference clock input, please connect EXCLK to GND.

PTT Key Port:

PTT operates optocouplers via GPIO0 (MI00); This requires an external relay or control circuit.

DFU BUTTON:

You can enter DFU mode at any time by pressing the DFU button and turning PLUTO+ back on, but you need to connect the URST jumper to MI052.

IPEX Reference Clock Input:

You can connect a cable to provide an external high-precision reference clock input for the AD9363 via the IPEX interface.

The main level should not exceed 3.3V, and the EXCLK jumper should be connected to GND to turn off the internal clock.

Calibrating the Frequency of the Internal VCTCXO:

If you have a reference signal source, you can precisely calibrate the frequency of the 40M clock signal by adjusting the adjustable resistor next to the VCTCXO.

You can adjust it.

Micro-SD:

Supports booting from SD card, you need to connect the SD-H jumper to 1V8.

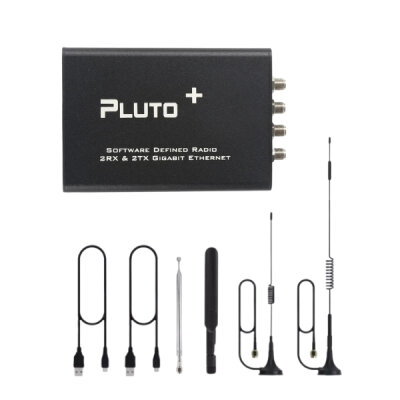

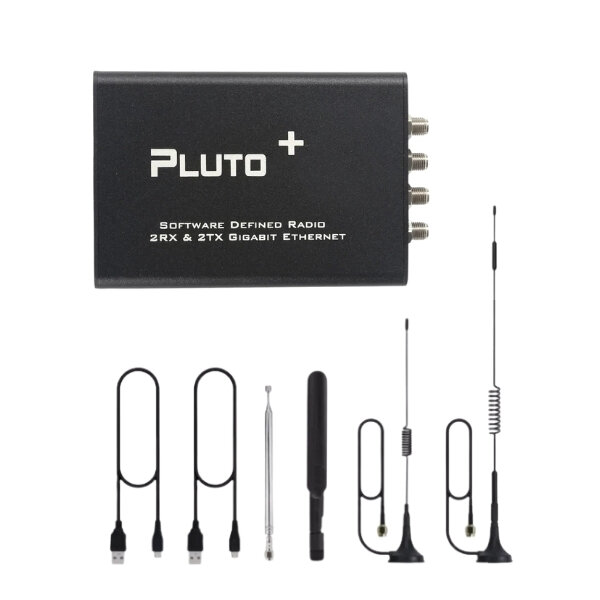

Package Contents

• 1 x PLUTO+ SDR radio
• 2 x USB cables
• 1 x 8dBi 2.4GHz/5GHz/5.8GHz antenna
• 1 x 5dBi 40MHz-860MHz antenna
• 1 x 40MHz-6GHz telescopic antenna
• 1 x 12dBi 700MHz-2700MHz antenna
