PN532 13.56MHz RFID NFC Kit

PN532 13.56MHz RFID NFC Kit

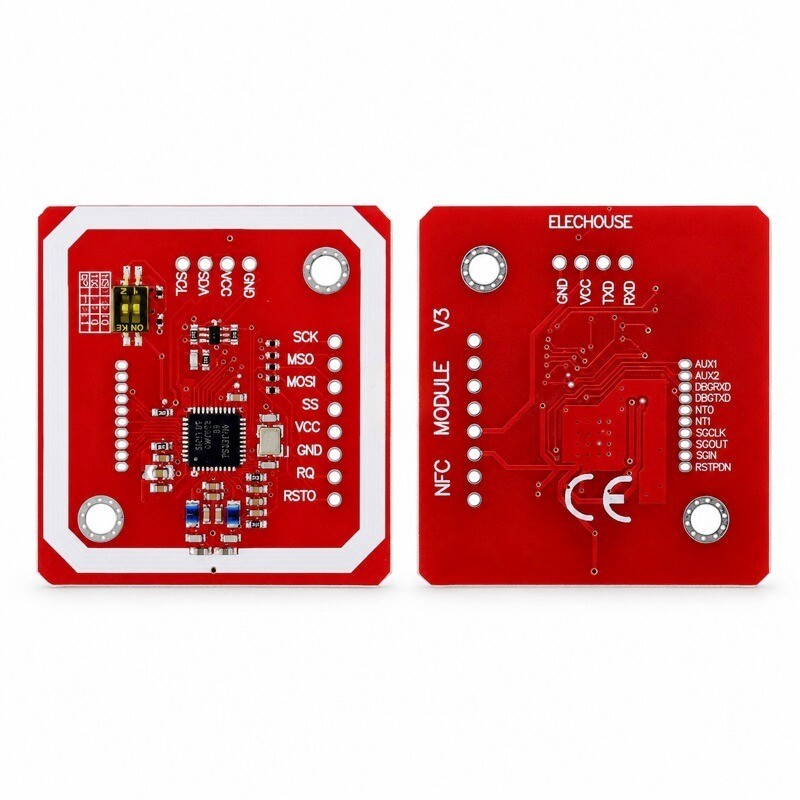

The PN532 13.56MHz RFID NFC Kit, PN532, is an RFID module used for contactless communication where read and write functions from RFID devices are required. It operates at a frequency of 13.56 MHz. The interesting aspect of this RFID module is its microcontroller functionality based on the 80C51 core with 40 KB ROM and 1 KB RAM.

PN532 operates with the concept of modulation and demodulation and supports I2C and UART communication. It supports 3.3V to 24V TTL as it has a built-in level shifter. It has an internal PCB antenna and can also communicate with other NFC devices such as smartphones and NFC-based tags.

Features

• Communication distance: 5cm~7cm
• Supports protocols such as II2, SPI and HSU (High-Speed ​​UART)
• I2C / UART TTL Voltage level - 3.3V ~ 24V TTL
• Internal level shifter available, reducing external components.
• Operates in NFC mode
• Operates in RFID reader/writer mode
• Does not require an external antenna as it supports communication from a distance of 4cm~6cm thanks to the internal PCB antenna.
• Card Size: 42.5x40mm

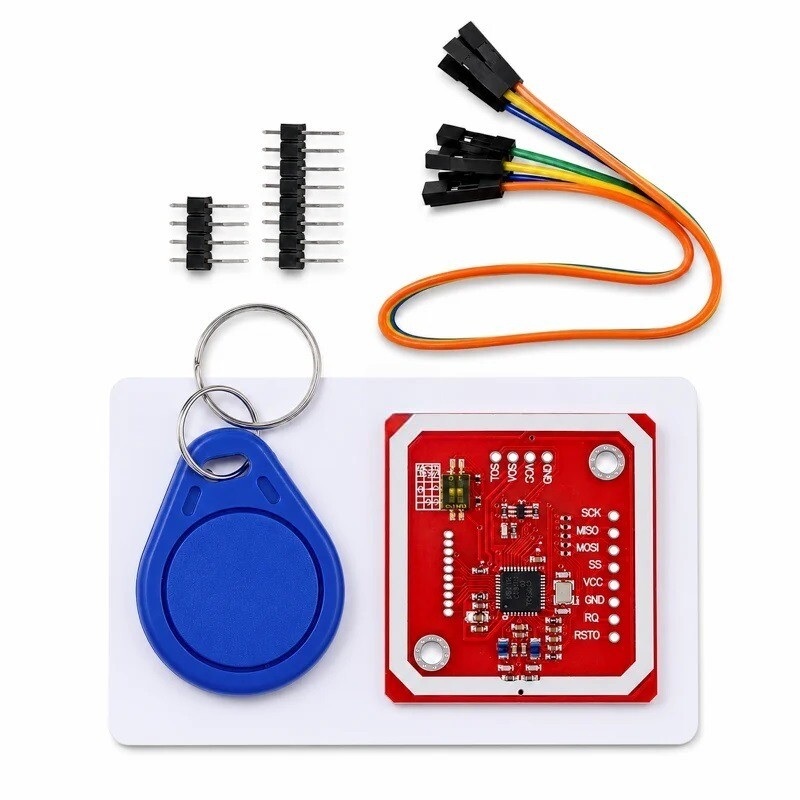

Package Contents

• 1 PN532 Card
• 1 3-pin Female-to-Female Jumper Cable
• 1 RFID Card
• 1 RFID Keychain
• 1 8-pin Right-angle Header
• 1 4-pin Right-angle Header
