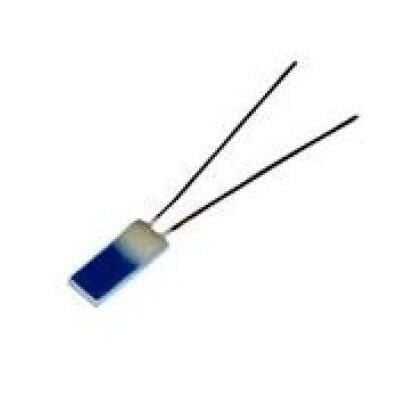

PT100 Thermal Sensor CRZ1632R-100B

This size of thin film RTD temperature sensor element is widely used in the temperature metrology industry worldwide. This thin film RTD temperature sensor element is small so it can be installed in a small diameter tube. Vibration and shock resistance are improved by circuit spraying technology compared to wire-wound types. It works perfectly even at high temperatures due to the stability structure.

Technical Specifications

Product Code: CRZ2005R-100
Temperature Range: F0.3 (B) -70 to 400 °C (-94 to +752 F)
Dimension (mm): 2.0x5.0x1.1
Resistance Value: Pt 100
Measurement Current: Less than 1 ma
Temperature Coefficient Resistance (Tcr): 0.003851
Stability: 200° C, 1000 Hours R0 <0.02% | 400°C, 1000 Hours R0 <0.04%
Response Time: Air -> V=1.0 m/s -> 16 | Air -> V=3.0 m/s -> 11 | Water ->0.3

When the temperature shift from T1 to T2 is 100%, the temperature change in the mixing water and air in the mixing water is 63.2% (time constant) and Response time to 90% is as follows.
