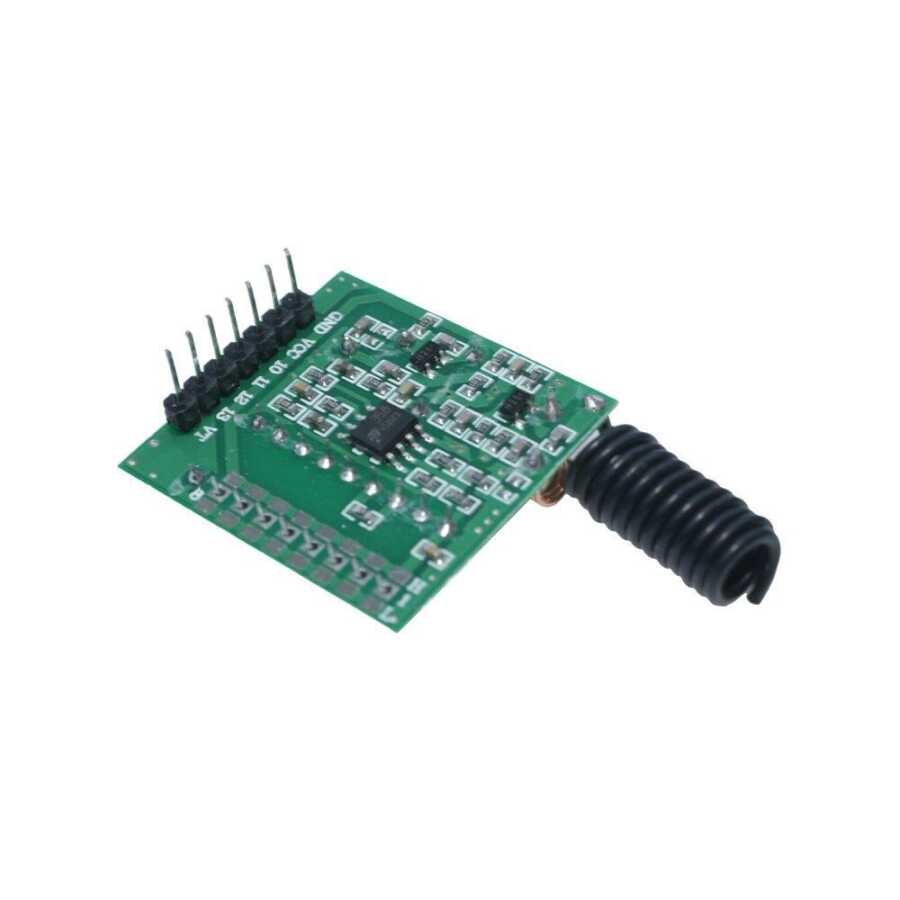

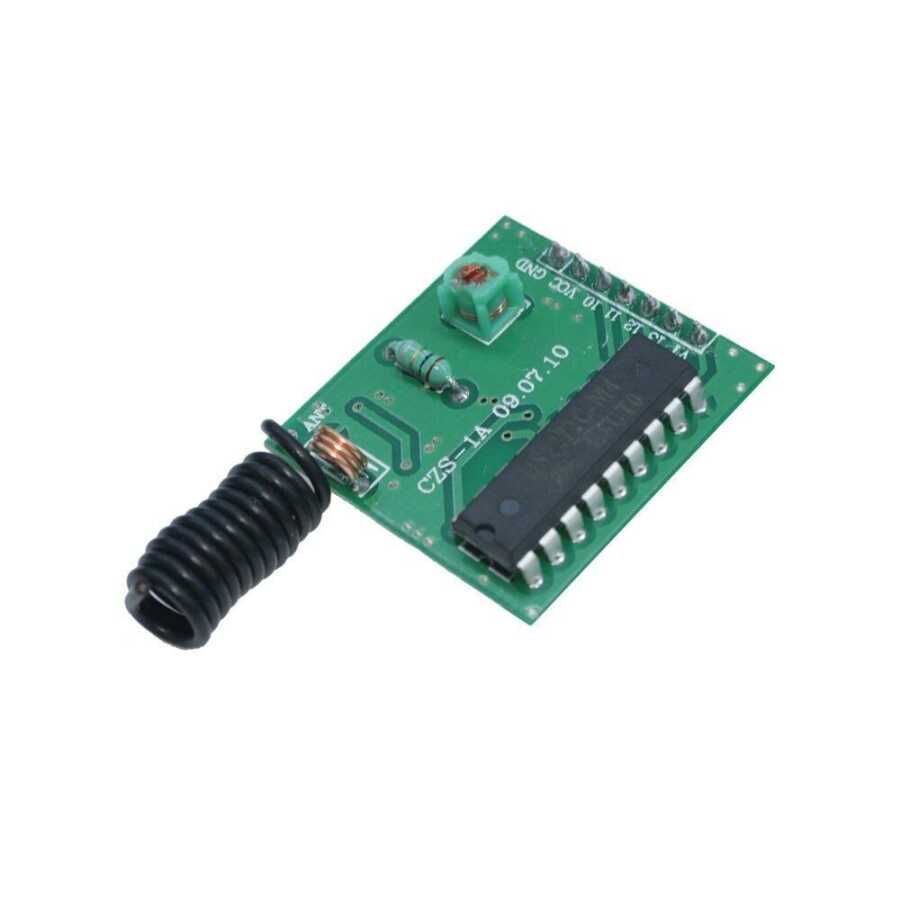

PT2272 4 Channel RF Receiver Module - 4KM and 1KM Transmitter

PT2272 4 Channel RF Receiver Module - 4KM and 1KM Transmitter Module Compatible

PT2272 (Rx) receiver module is designed to be used with PT2262 (Tx) transmitter module . When used together, it is a set of wireless modules operating at 433MHz.

Provides an easy way to remotely control 4 channels without the need for a microcontroller. Suitable for projects such as security systems, garage door controllers, home automation and remote control.

Features:

• Operating frequency: 433MHz
• Operating voltage: DC 5V
• Operating current: ≤3mA (5.0V DC)
• Modulation: ASK
• Sensitivity: -105dBm (50Ω)
• Output: TTL level
• Output type: Momentary
