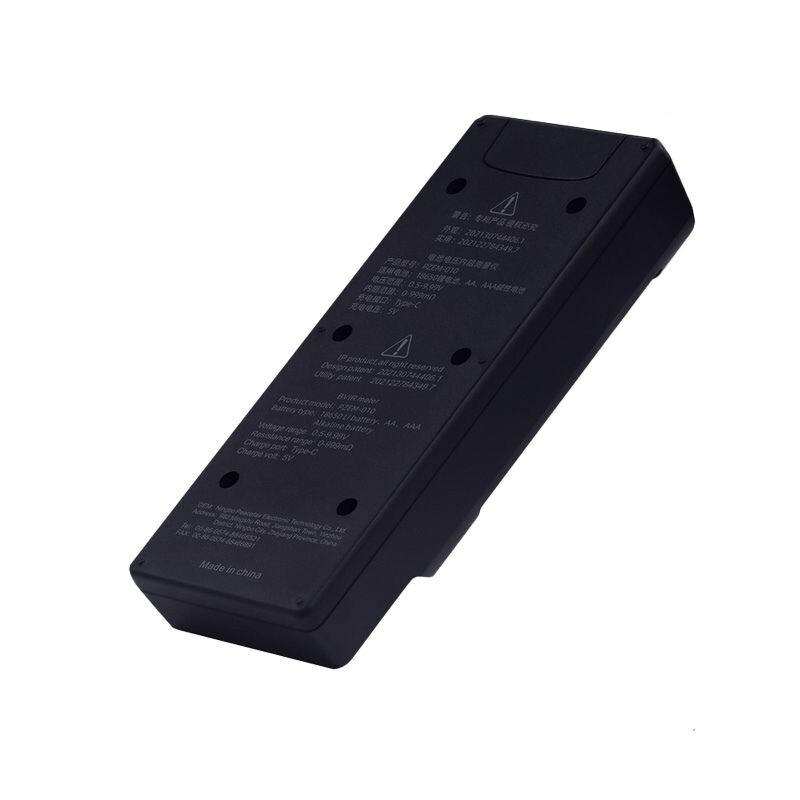

PZEM-010 Battery Voltage and Internal Resistance Tester with Display
PZEM-010 Battery Voltage and Internal Resistance Tester with Display
PZEM-010 Battery Voltage and Internal Resistance Tester with Display uses the four-wire principle to test battery voltage and internal resistance with high precision, and works with internal rechargeable standby battery; Innovative internal four-wire battery measurement cabinet structure, high integration, small volume and convenient portability. Suitable for mobile battery detection.
Simple operation. One-button backlight/sleep on/off.

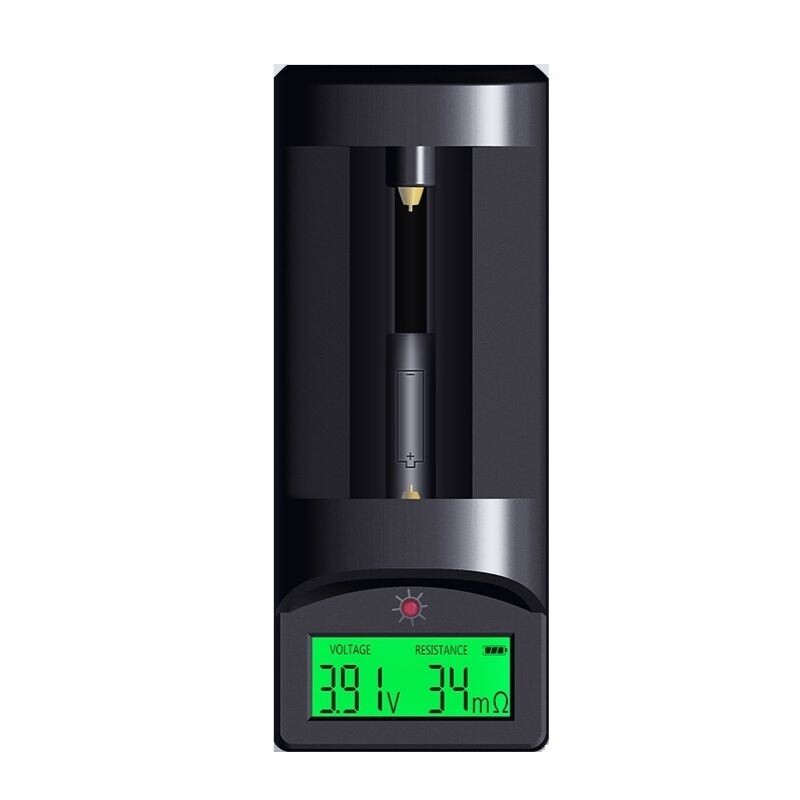

It can measure the voltage and internal resistance of 18650 lithium battery and AA / AAA alkaline battery and display them via LCD. You can charge the device with Type-C power input. It does not consume the power of the test battery for testing. Type-C cable is included.
It is used only for measurement. Does not charge batteries.
Features
- Internal Battery: 3.7V / 1000mAh
- Measurable Battery Types; 18650 lithium batteries and alkaline AA/AAA batteries
- Internal Resistance Measurement Range: 0~999mOhm
- Dimensions: 156x63x36mm
